Exploded View

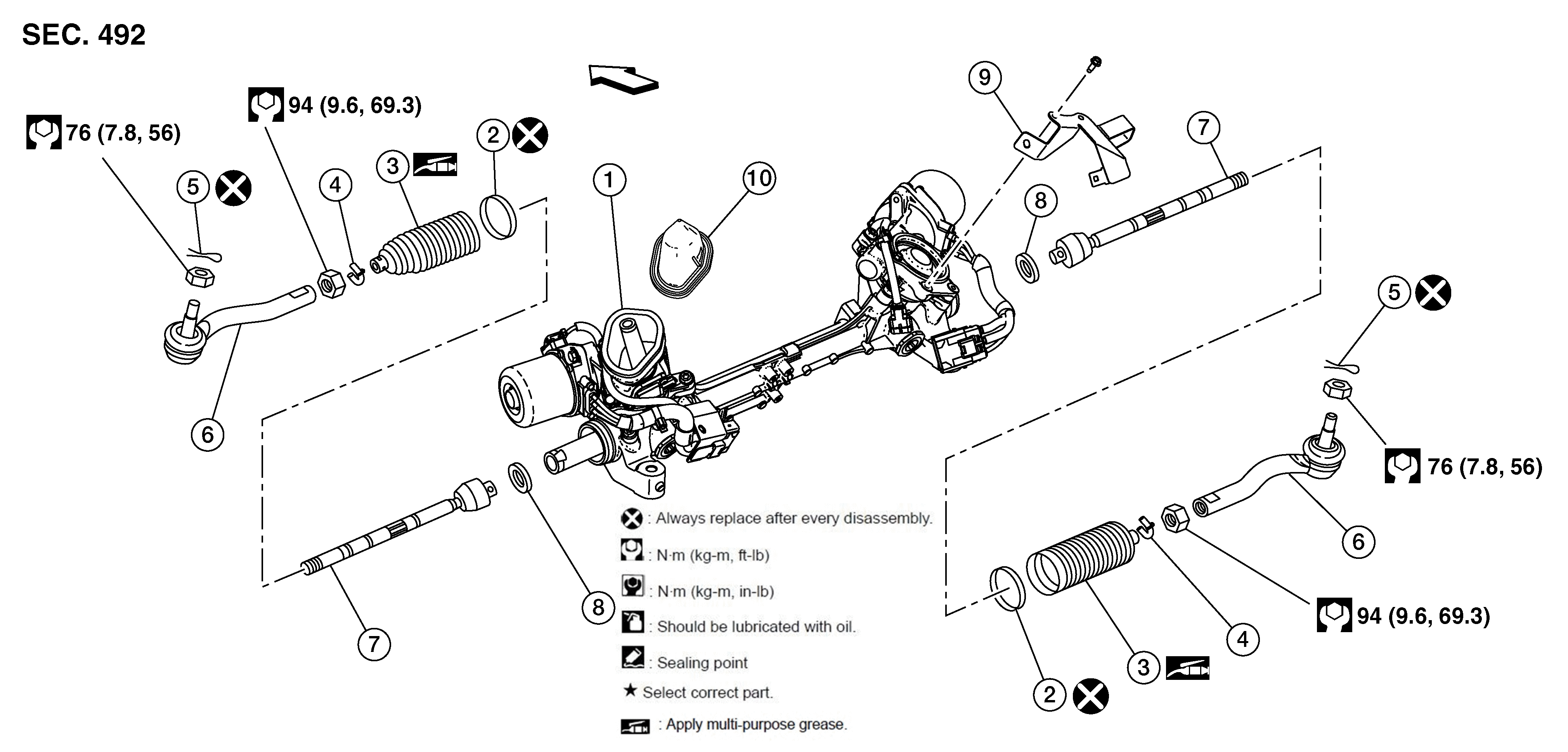

Fig 1: Steering Gear And Linkage Components With Torque Specifications

GNSDB139184

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering gear	2.	Large boot clamp	3.	Boot
4.	Small boot clamp	5.	Cotter pin	6.	Outer socket
7.	Inner socket	8.	Spacer	9.	Bracket
10.	Outer guide		Front
