Steering Angle Sub Control Module
›

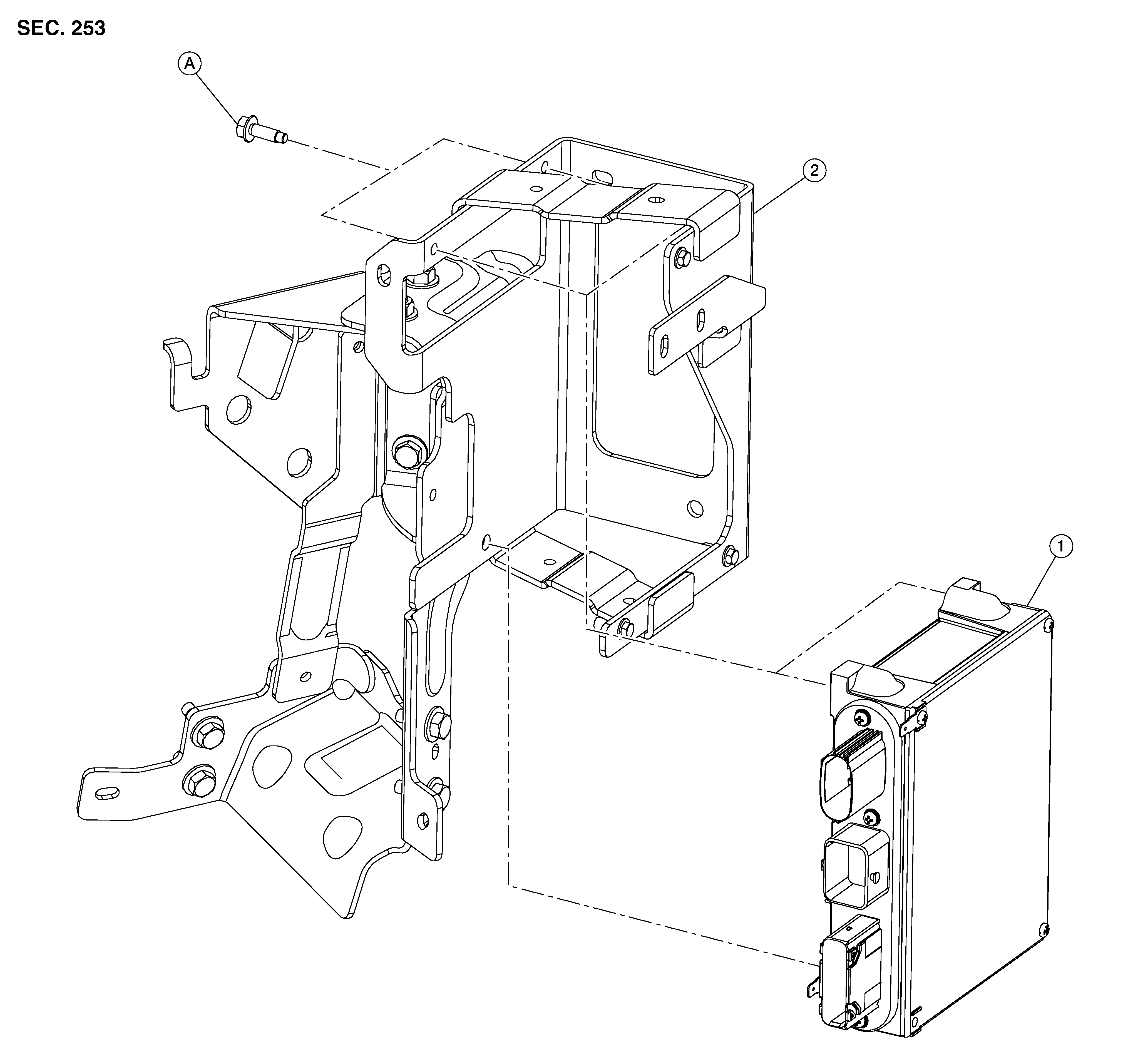

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering angle sub control module
2.
Bracket
A.
Refer to
Removal and Installation
.
Courtesy of NISSAN NORTH AMERICA, INC.
