Front Coil Spring And Strut
›

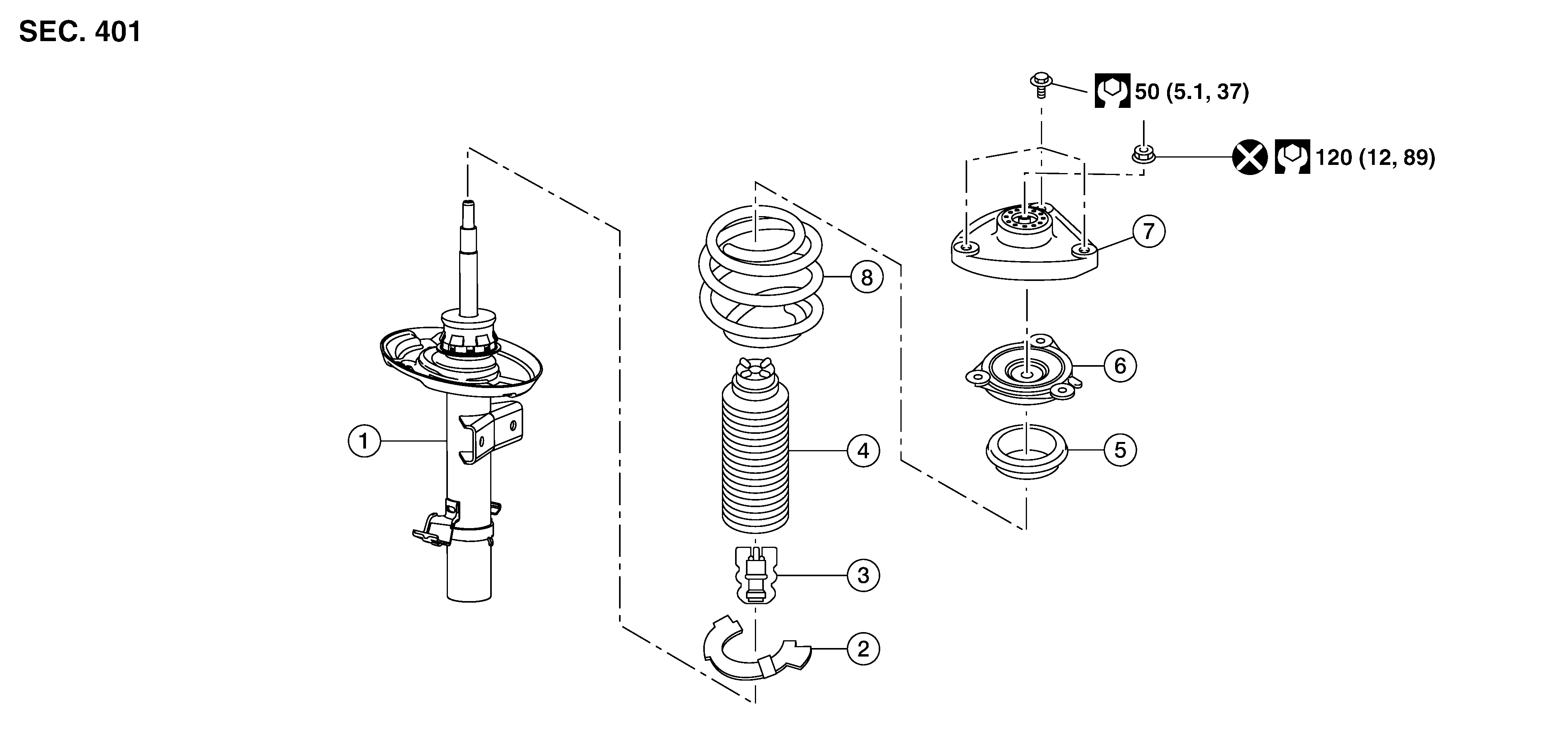

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Strut
2.
Lower rubber seat
3.
Bumper bound
4.
Dust cover
5.
Upper spring seat
6.
Strut mount bearing
7.
Strut mounting insulator
8.
Spring
