Exploded View

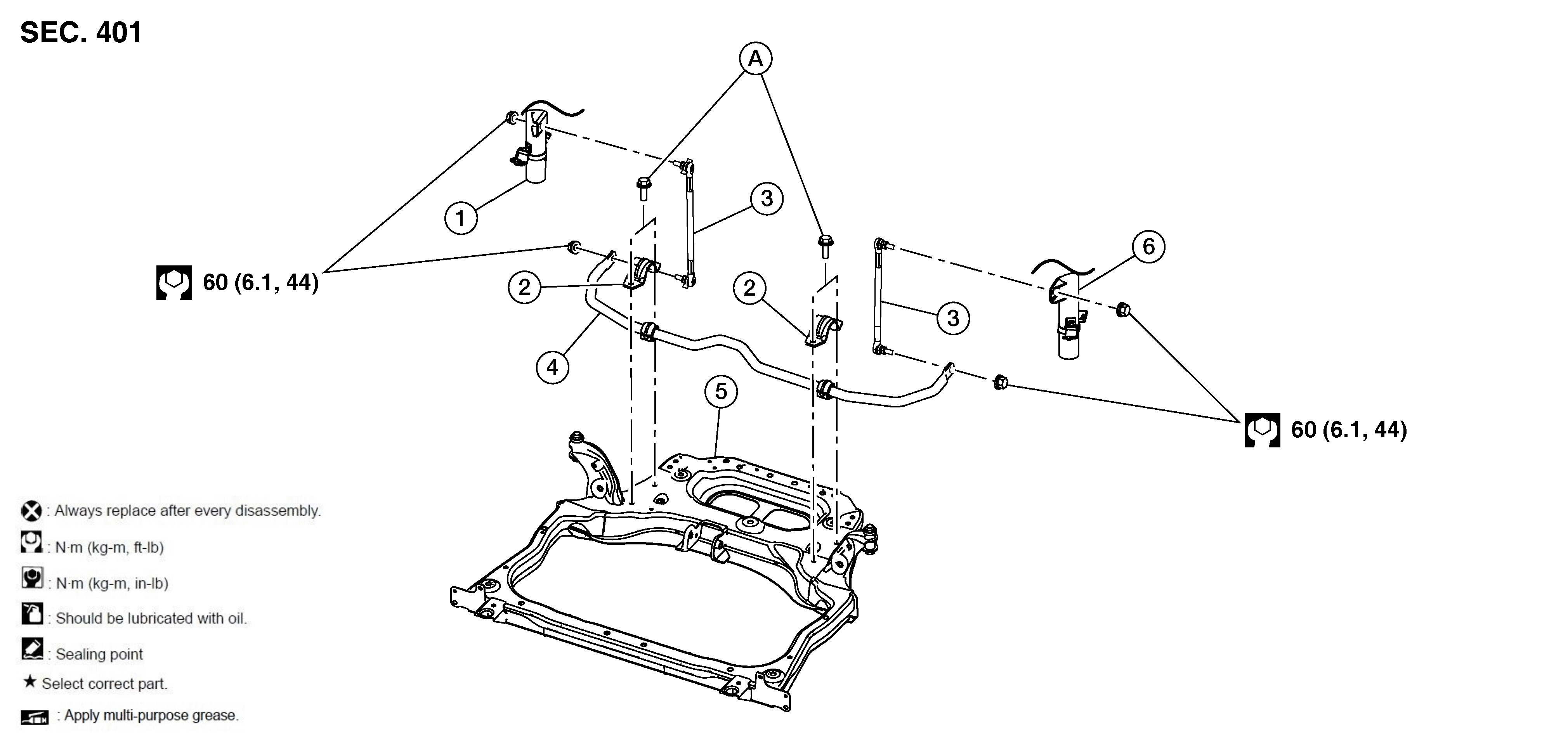

Fig 1: Front Stabilizer with Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front coil spring and strut (RH)	2.	Stabilizer bar clamp	3.	Stabilizer bar connecting rod
4.	Stabilizer bar	5.	Front suspension member	6.	Front coil spring and strut (LH)
A.	Refer to Removal and Installation .
