Exploded View

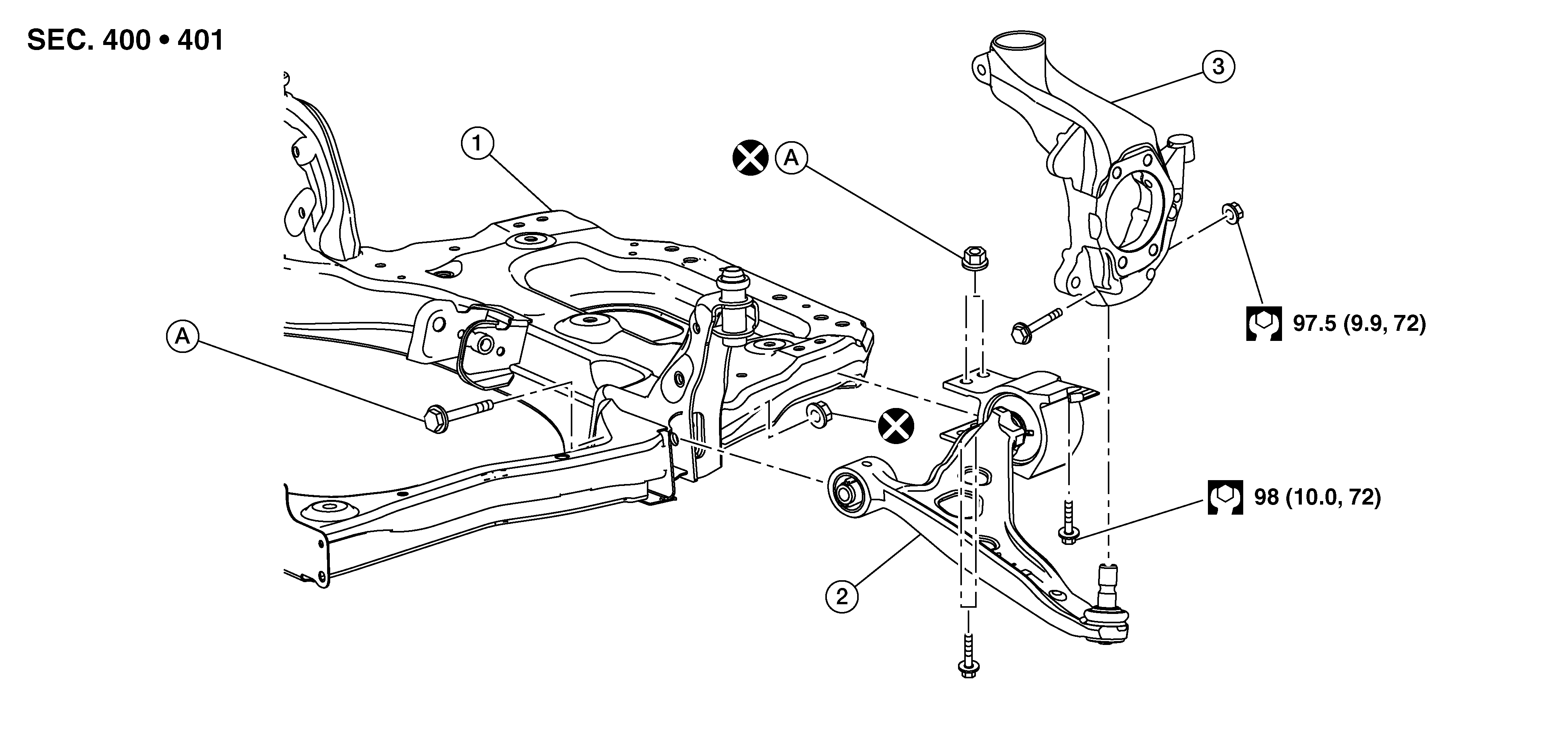

Fig 1: Transverse Link With Torque Specifications
GNSDB138563Courtesy of NISSAN NORTH AMERICA, INC.
1. Front suspension member 2. Transverse link 3. Steering knuckle
A. Refer to Removal and Installation .
