Exploded View

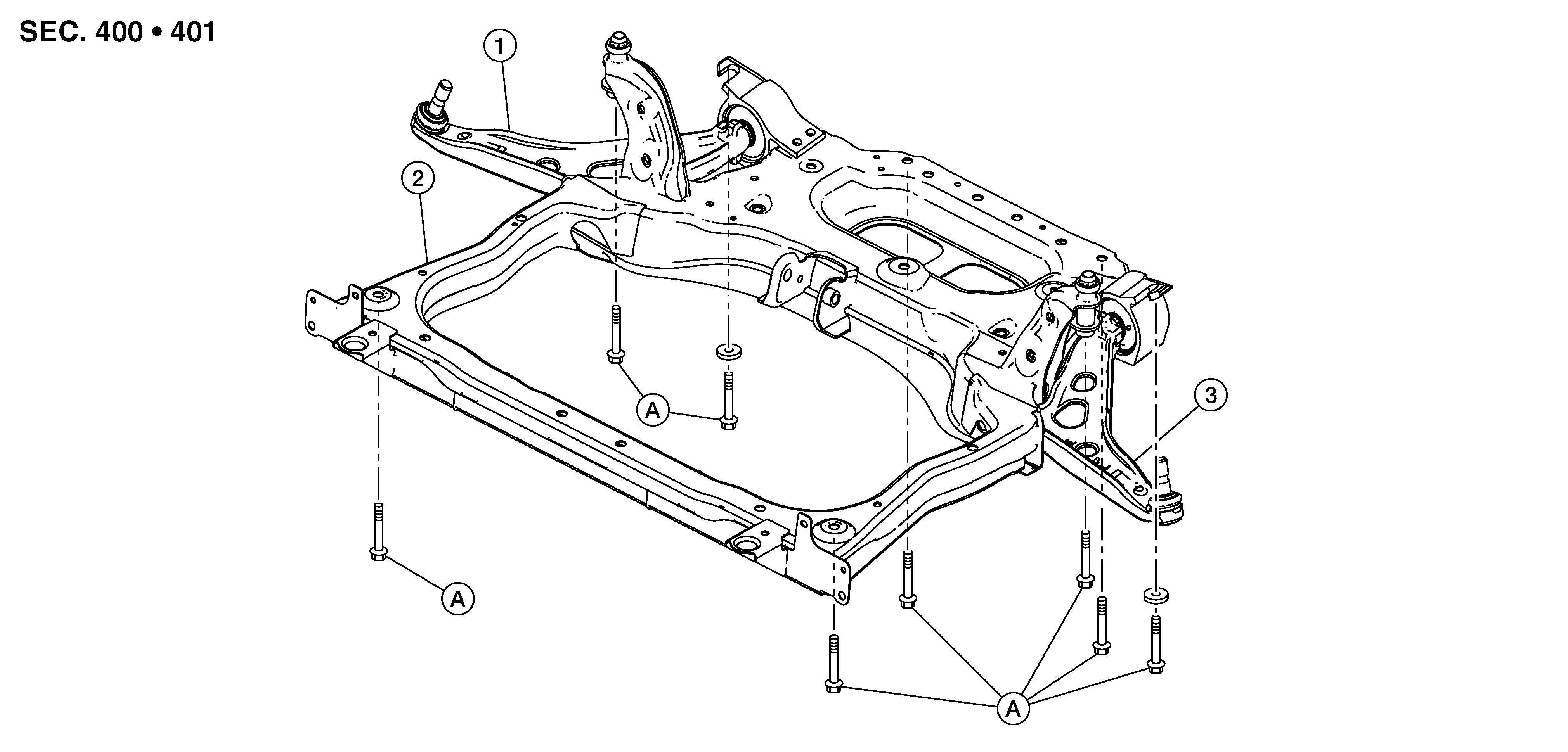

GNSDB139032Courtesy of NISSAN NORTH AMERICA, INC.
1. Transverse link (RH) 2. Front suspension member 3. Transverse link (LH)
A. Refer to Removal and Installation .
