| 1. |
ECM(Engine Control Module) |

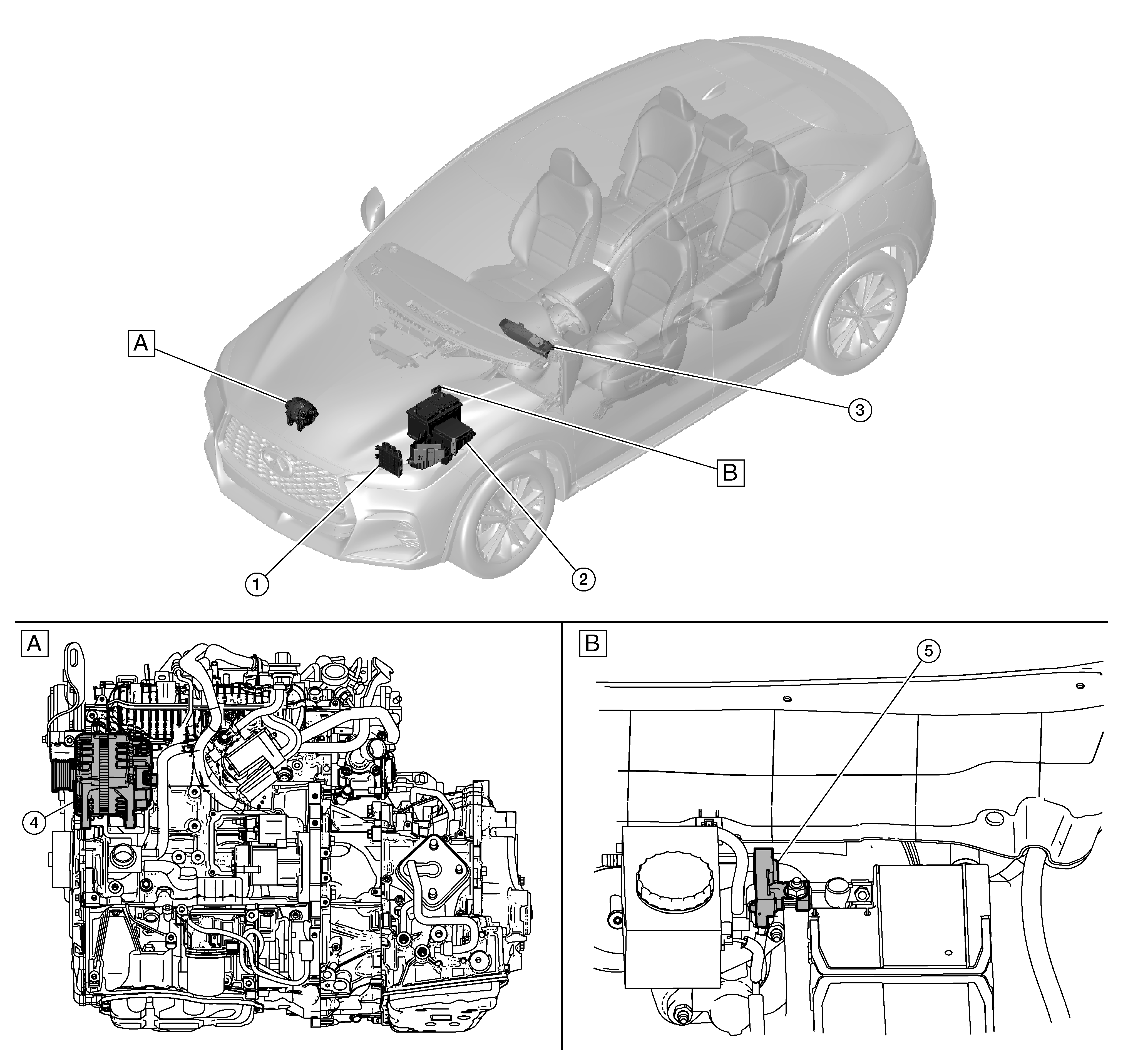

ECM transmits the received generator voltage request signal to the generator via LIN communication signal. Refer to Component Location
for detailed component location. |
| 2. |
IPDM E/R(Intelligent Power Distribution Module Engine Room) |
IPDM E/R sends the generator voltage request signal to ECM via CAN communication. Refer to System Description
. |
| 3. |
Combination meter |
The control module inside generator warning function activates to illuminate the charge warning lamp if any of the following symptoms occur while generator is operating:
- Excessive voltage is produced
- No voltage is produced
Refer to Component Location
for detailed component location. |
| 4. |
Generator |
Refer to Generator . |
| 5. |
Battery current sensor (battery temperature sensor) |
Refer to Battery Current Sensor (Battery Temperature Sensor) . |
