Work Procedure

Always perform the radar alignment after removing and installing or replacing the distance sensor.

Application Notice

Type Description
TYPE 1 When using KV99112700 for radar alignment. Refer to Description.
TYPE 2 When using 1-20-2851-1 for radar alignment. Refer to Description.

TYPE 1

Description

OUTLINE OF RADAR ALIGNMENT PROCEDURE

WARNING: Radio waves could adversely affect electric medical equipment. Those who use a pacemaker should contact the electric medical equipment manufacturer for the possible influences before use.
CAUTION:

The system does not operate normally unless the radar alignment is performed. Always perform it.

  1. Set the target board (SST: KV99112700) to the correct position in front of the vehicle.
  2. Set the radar alignment mode ("MILLIWAVE RADAR ADJUST" on "Work support") with CONSULT, and then perform the adjustment according to the display. (Distance sensor automatically adjusts.)

CAUTIONARY POINT FOR RADAR ALIGNMENT PROCEDURE

CAUTION:
  • For radar alignment procedure, choose a level location with a few meter of working space in front and surrounding the vehicle.
  • Vehicle must be stationary and unoccupied during the whole alignment procedure.
  • Any slight vibration during the alignment procedure can cause the test to fail. If this happens, you will have to restart the alignment process.
  • The ignition switch must be in the ON position.
  • The battery voltage must not fall below 12 volts during the whole alignment procedure. Failure to maintain adequate battery voltage will cause the test to fail. If this happens, you will have to restart the alignment process.
  • The target board must be set in front of the vehicle facing the sensor.
  • Adjust the radar alignment with CONSULT. (The radar alignment procedure cannot be adjusted without CONSULT.)
  • Never enter the vehicle during radar alignment.
  • Never block the area between the radar and the target board at any time during the alignment process.
  • Accurate steering wheel setting is crucial. Once set, do not disturb the steering wheel for the remainder of the alignment procedure.
  • For proper system operation and adjustment, all vehicle wheels must be of the same size.

Preparation

  1. CHECK EXTERIOR

    Check front bumper, front grille, and active grille shutter for damage.

    Does damage exist?

    YES>>

    Repair or replace affected components. Refer to Removal and Installation (front bumper), Removal and Installation (front grille), or Removal and Installation (active grille shutter), and then GO TO 2.

    NO>>

    GO TO 2.

  2. CHECK DISTANCE SENSOR

    Check distance sensor and distance sensor bracket for damage and installation condition (installation position, properly tightened).

    Is the inspection result normal?

    >>

    Repair or replace the malfunctioning parts. Refer to Removal and Installation , and then GO TO 3.

    NO>>

    GO TO 3.

  3. ADVANCE PREPARATION FOR RADAR ALIGNMENT
    1. Adjust all tire pressure to the specified value.
    2. Empty the vehicle. (Remove any luggage from the passenger compartment, trunk room, etc.)
    3. Shift the selector lever to "P" position, and release the parking brake.
    4. Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.
    5. Clean the distance sensor area

      of the front bumper grille.

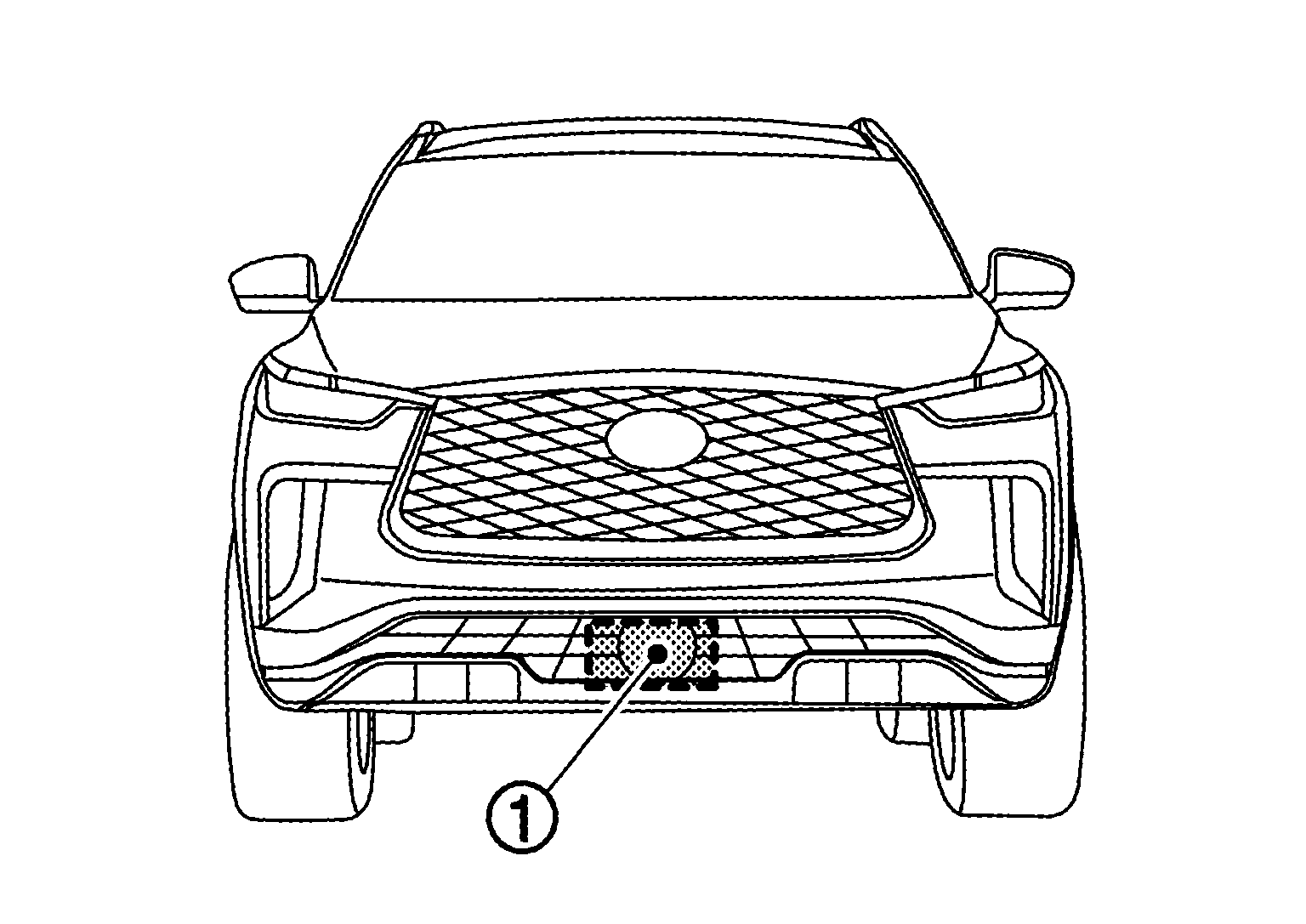

      GNSDB140150Courtesy of NISSAN NORTH AMERICA, INC.

    >>

    GO TO 4.

  4. RADAR ALIGNMENT OPERATION AREA

    Position the vehicle in a place that is level and where

    area can be secured.

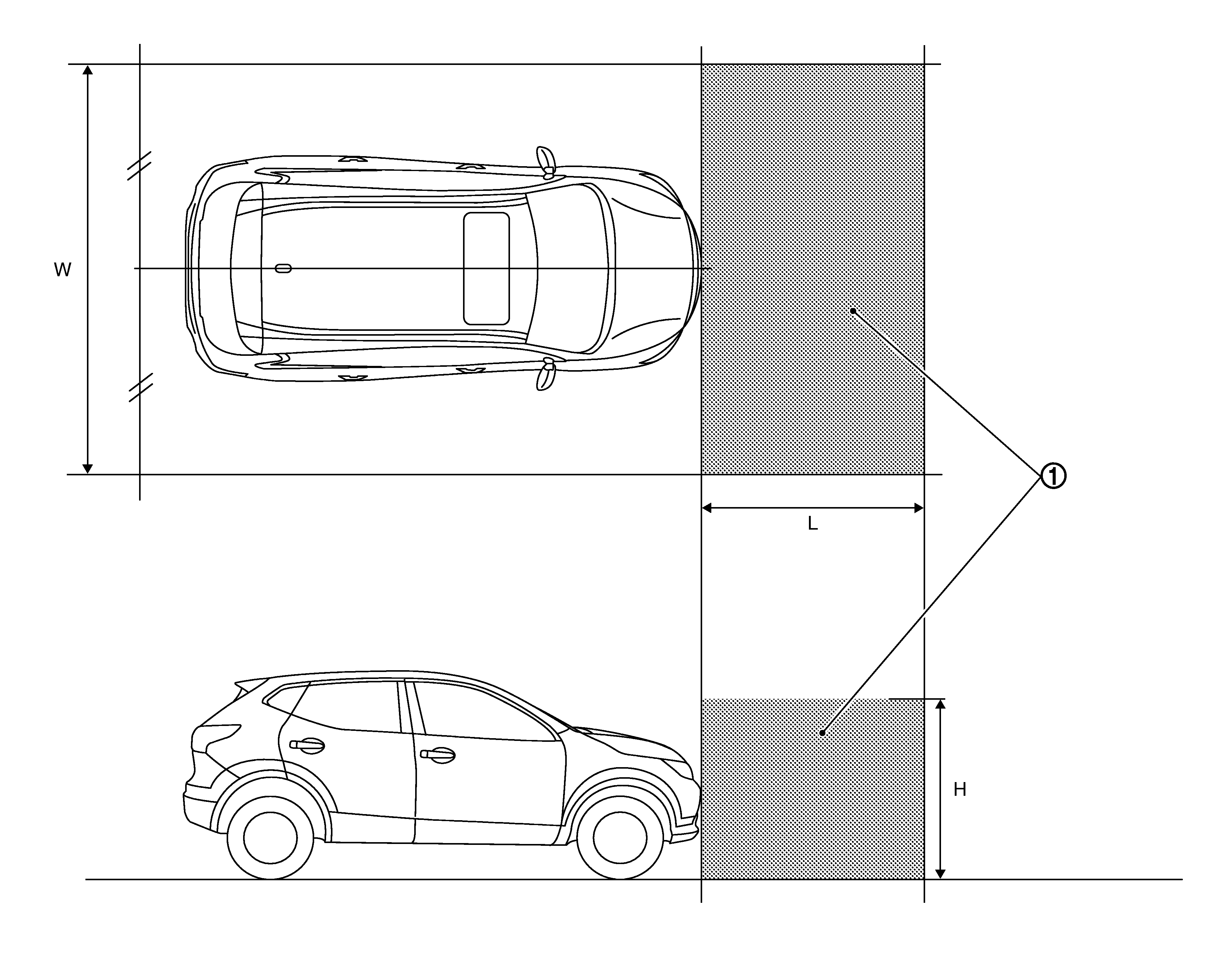

    GNSDB125444Courtesy of NISSAN NORTH AMERICA, INC.
    W : 3000 mm (118.11 in)
    L : 2000 mm (78.74 in)
    H : 2000 mm (78.74 in)
    NOTE: SYMBOL
    is a no object zone.

    >>

    Go to Setting The Target Board.

Setting The Target Board

Accurate adjustment of the radar alignment requires that the target board be accurately positioned.

CAUTION:

If the radar alignment is adjusted with the target board in the incorrect position, the FEB/PFCW systems do not function normally.

  1. TARGET BOARD HEIGHT ADJUSTMENT

    Adjust the base of ICC target board to approximately 30 mm from the ground.

    >>

    GO TO 2.

  2. PREPARATION OF SETTING TARGET BOARD (1)
    GNSDB125920Courtesy of NISSAN NORTH AMERICA, INC.
    "A"-"E" ("C"-"F") : 2000 mm (78.7 in)
    1. Mark points "A", "B", "C" and "D"at the center of the lateral surface of each wheels.
      GNSDB124897Courtesy of NISSAN NORTH AMERICA, INC.

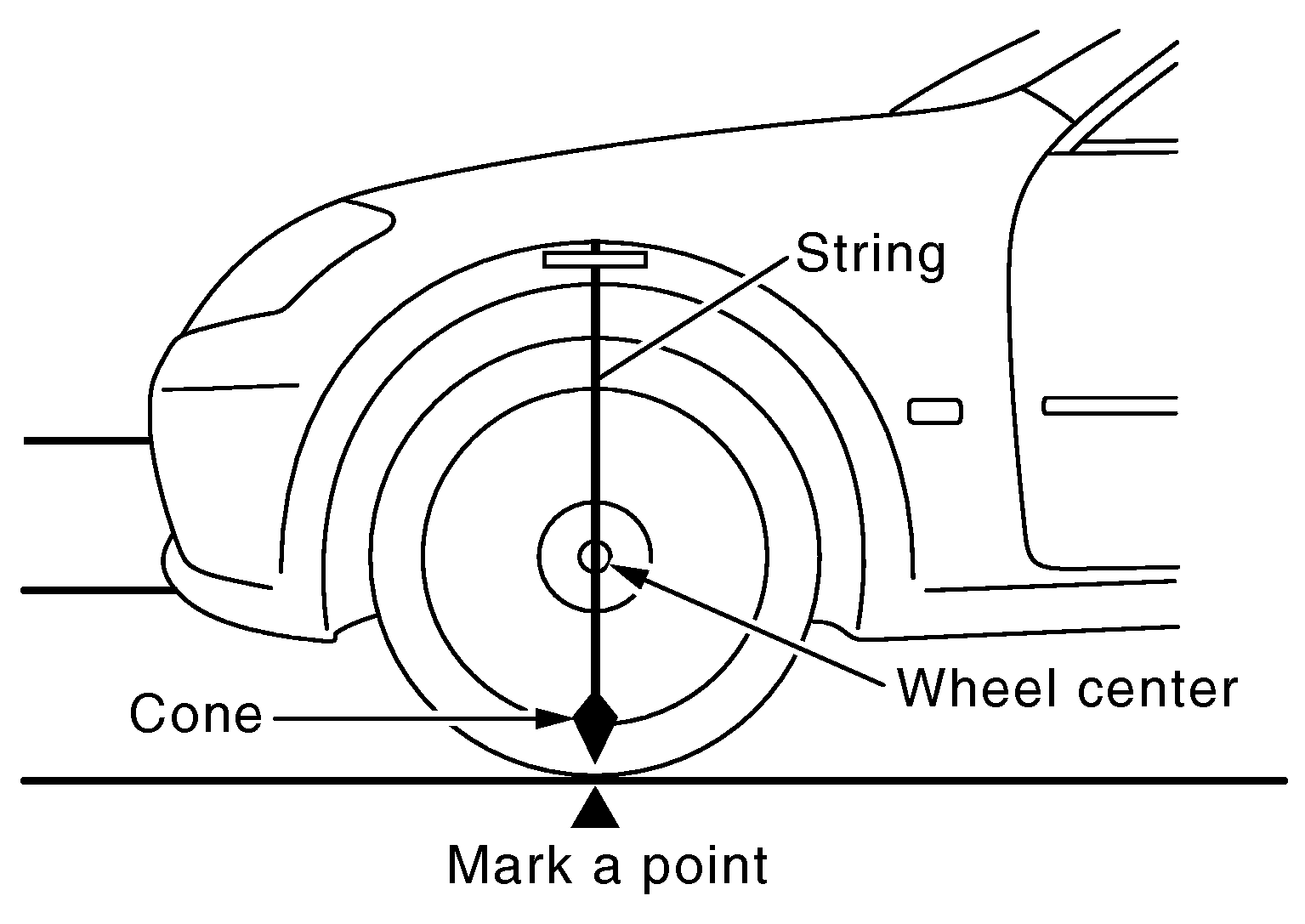

      NOTE: SYMBOL Hang a string with a cone from the fender so as to pass through the center of wheel, and then mark a point at the center of the lateral surface of the wheel.
    2. Draw line "LH" passing through points "A" and "B" on the left side of vehicle.
      NOTE: SYMBOL Approximately 2 m (6.56 ft) or more from the front end of vehicle.
    3. Mark point "E" on the line "LH" at the positions 2000 mm (78.7 in) from point "A".
    4. Draw line "RH" passing through points "C" and "D" on the right side of vehicle in the same way as step 2.
      NOTE: SYMBOL Approximately 2 m (6.56 ft) or more from the front end of vehicle.
    5. Mark point "F" on the line "RH" at the positions 2000 mm (78.7 in) from point "C".
    6. Draw line "FW" passing through the points "E" and "F" on the front side of vehicle.
    7. Mark point "X" at the center of point "E" and "F" on the line "FW".
      CAUTION:

      Make sure that "E" to "X" is equal to "F" to "X".

    >>

    GO TO 3.

  3. SETTING TARGET BOARD

    Place the center of target board on point "G" at line "E-F" and install the target board.

    CAUTION:

    For performing the radar alignment correctly, securely install (target board) to be parallel with the "E-F" line.

    GNSDB125289Courtesy of NISSAN NORTH AMERICA, INC.
    L1 : 2000 mm (78.7 in)
    L2 : 0 mm (0 in)

    >>

    GO TO 4.

  4. CHECK THE TARGET BOARD INSTALLATION AREA

    Do not place anything other than target board in the space shown in the figure (view from top).

    GNSDB126654Courtesy of NISSAN NORTH AMERICA, INC.
    No object zone SYMBOL Distance sensor SYMBOL Target board
    W. 3000 mm (118.11 in) L. 1500 mm (59.06 in)

    >>

    Go to Radar Alignment.

Radar Alignment

The radar alignment is performed automatically with CONSULT.

CAUTION:

Perform all necessary work for radar alignment until the adjustment completes as shown in the procedure. If the procedure does not complete, the FEB/ProPILOT Assist/PFCW systems are inoperable.

  1. SELECT WORK SUPPORT ITEM
    1. Start the engine.
    2. Connect CONSULT and select "Work support" of "LASER/RADAR".
    3. Select "MILLIWAVE RADAR ADJUST".
    NOTE: SYMBOL Confirm the following items;
    • The target should be accurately placed.
    • The vehicle should be stopped.

    Is the radar alignment start screen displayed?

    YES>>

    GO TO 2.

    NO-1 (When "Vehicle is moving" is displayed) >>

    Stop the vehicle and touch "Retry" to perform radar alignment again.

    NO-2 (When "System malfunction is detected" is displayed) >>

    GO TO 4.

    NO-3 (When error message other than the above is displayed) >>

    GO TO 3.

  2. START RADAR ALIGNMENT

    Select "Start" after the conditions displayed on CONSULT are satisfied.

    CAUTION:

    Never select "Start" when the target is not accurately placed.

    NOTE: SYMBOL It may take several 10s of seconds until the result is displayed.

    Is the result normal?

    YES>>

    RADAR ALIGNMENT END

    NO-1 (When "Vehicle is moving" is displayed) >>

    Stop the vehicle and touch "Retry" to perform radar alignment again.

    NO-2 (When "System malfunction is detected" is displayed) >>

    GO TO 4.

    NO-3 (When error message other than the above is displayed) >>

    GO TO 3.

  3. CHECK EXECUTION CONDITION

    Check if the following conditions are satisfied.

    • The target should be accurately placed.
    • The vehicle should be stopped.

    Is the result normal?

    YES>>

    GO TO 4.

    NO>>

    Check the condition and perform the radar alignment again.

  4. CHECK SELF-DIAGNOSIS RESULTS OF LASER/RADAR
    1. Perform "All DTC Reading".
    2. Check if the DTC is detected on the self-diagnosis results of LASER/RADAR. Refer to DTC Index .
    3. Perform trouble diagnosis for the detected DTC, and repair or replace the identified malfunctioning parts.
    4. Ignition switch OFF to ON, and perform the radar alignment again.

    >>

    WORK END.

TYPE 2

Description

OUTLINE OF RADAR ALIGNMENT PROCEDURE

WARNING: Radio waves could adversely affect electric medical equipment. Those who use a pacemaker should contact the electric medical equipment manufacturer for the possible influences before use.
CAUTION:

The system does not operate normally unless the distance sensor is aligned properly.

  1. Required tools, refer to Required Tools.
  2. Preparation, refer to Preparation.
  3. Vehicle set up, refer to Vehicle Set Up.
  4. Setting the target board, refer to Setting The Target Board.
  5. Distance sensor adjustment, refer to distance Sensor Adjustment.

CAUTIONARY POINT FOR RADAR ALIGNMENT PROCEDURE

CAUTION:
  • For radar alignment procedure, choose a level location with a few feet of working space in front and surrounding the vehicle.
  • Vehicle must be stationary and unoccupied during the whole alignment procedure.
  • Any slight vibration during the alignment procedure can cause the test to fail. If this happens, you will have to restart the alignment process.
  • The battery voltage must not fall below 12 volts during the whole alignment procedure. Failure to maintain adequate battery voltage will cause the test to fail. If this happens, you will have to restart the alignment process.
  • The target board must be set in front of the vehicle facing the sensor.
  • Adjust the radar alignment with CONSULT. (The radar alignment procedure cannot be adjusted without CONSULT.)
  • Never enter the vehicle during radar alignment.
  • Never block the area between the radar and the target board at any time during the alignment process.
  • Accurate steering wheel setting is crucial. Once set, do not disturb the steering wheel for the remainder of the alignment procedure.
  • For proper system operation and adjustment, all vehicle wheels must be of the same size.

Required Tools

The following tools are necessary to perform distance sensor alignment:

a) Target Board (Fixture), b) Laser assembly, c) Rear Stand

Use kit 1-20-2851-1 with a self-centering wheel adapter (e.g. 1-20-2722-1-IF, Hunter 20-3339-1 or equivalent).

NOTE: SYMBOL Tools 1-20-2721-1-IF, 1-20-2722-1-IF and J-50808 have been superseded and are no longer available, but may still be used for distance sensor alignment.

Preparation

  1. CHECK EXTERIOR

    Check front bumper, front grille, and active grille shutter for damage.

    Does damage exist?

    YES>>

    Repair or replace affected components. Refer to Removal and Installation (front bumper), Removal and Installation (front grille), or Removal and Installation (active grille shutter), and then GO TO 2.

    NO>>

    GO TO 2.

  2. CHECK DISTANCE SENSOR

    Check distance sensor and distance sensor bracket for damage and installation condition (installation position, properly tightened).

    Is the inspection result normal?

    >>

    Repair or replace the malfunctioning parts. Refer to Removal and Installation , and then GO TO 3.

    NO>>

    GO TO 3.

  3. ADVANCE PREPARATION FOR RADAR ALIGNMENT PROCEDURE
    1. Adjust all tire pressure to the specified value.
    2. Empty the vehicle. (Remove any luggage from the passenger compartment, luggage room, etc.)
    3. Shift the selector lever to "P" position, and release the parking brake.
    4. Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.
    5. Clean the distance sensor area

      of the front bumper grille.

      GNSDB140150Courtesy of NISSAN NORTH AMERICA, INC.

    >>

    Refer to Vehicle Set Up.

Vehicle Set Up

Accurate adjustment of the radar alignment requires that the target board, wheel adapter, laser assembly, and rear stand be properly positioned.

CAUTION:

If the radar alignment is adjusted with the target board, wheel adapter, laser assembly, or rear stand in the incorrect position, the FEB/PFCW systems will not function properly or the alignment procedure may not be completed successfully.

  1. PREPOSITION TARGET BOARD
    NOTE: SYMBOL

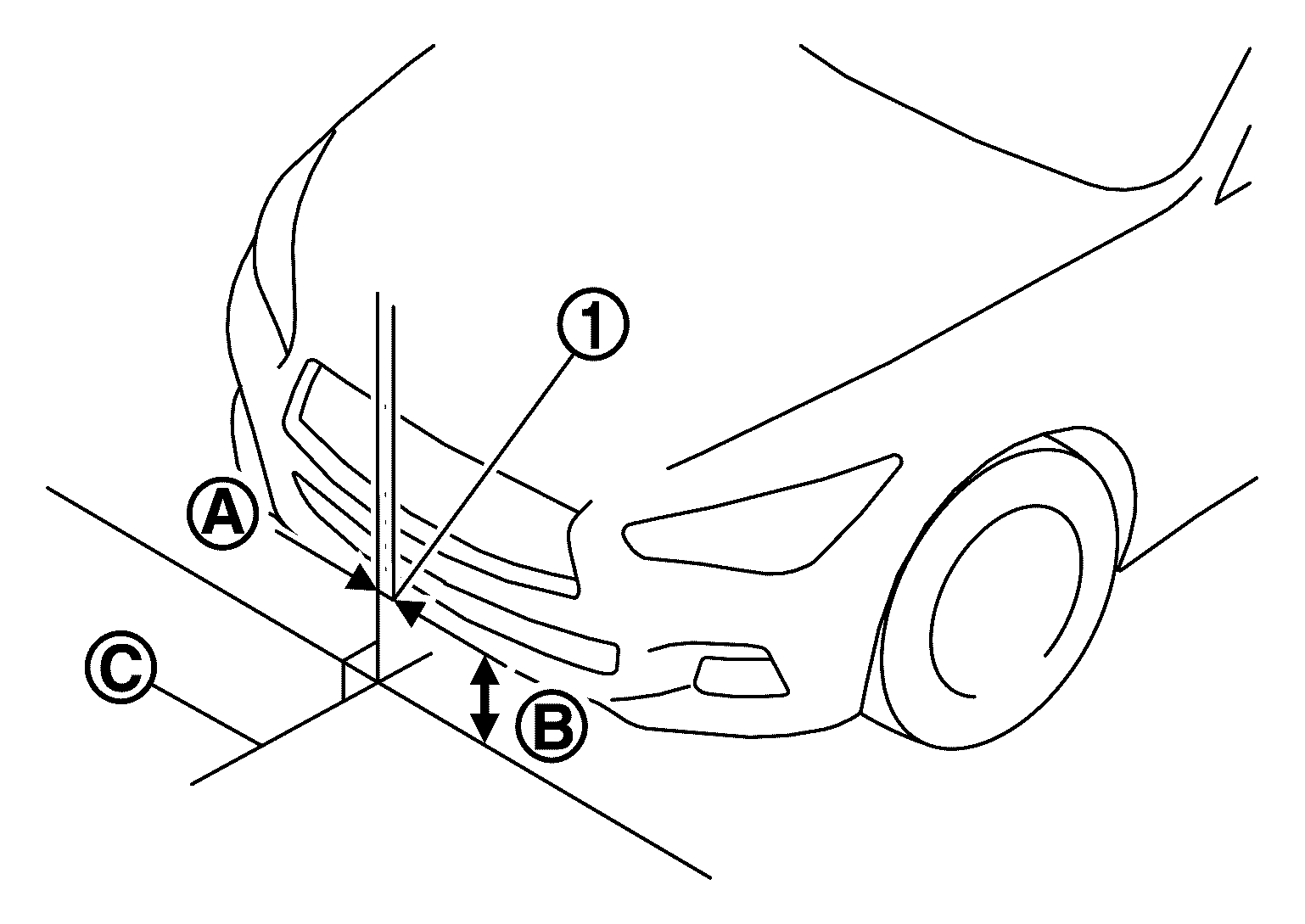

    • To identify the sensor wave axis center, measure the point

      as shown in the illustration.

      GNSDB125793Courtesy of NISSAN NORTH AMERICA, INC.
      A : 0 mm (0 in)
      B : 397.8 mm (15.66 in)
      C : Vehicle center
    • Target board setting must be in the center position. (Position 2)
    • Attaching the distance sensor alignment kit attachment board to the target board.
    1. Position the target board in front facing the right front side of the vehicle:
      GNSDB110981Courtesy of NISSAN NORTH AMERICA, INC.
      1. Place the marked center of the target board

        397.8 mm (15.66 in) ± 50 mm (1.97 in) facing the distance sensor.

      2. Adjust the height of the target board using the adjustable nut SYMBOL to achieve the proper height. The up/down tolerance is ± 30 mm (1.18 in).
      3. Adjust the target board lateral position aligning the marked center of the board horizontally with the center of the distance sensor. The right/left tolerance is ± 80 mm (3.15 in).
    2. Extend the machined arm of the target board exposing the reflective surface SYMBOL to the right front side of the vehicle.
    3. Place one side of the laser assembly SYMBOL flush against the center of the target board

      to assist in the positioning.

      GNSDB126005Courtesy of NISSAN NORTH AMERICA, INC.
    4. Turn the laser assembly ON SYMBOL allowing the laser beam to emit through the opening of the laser assembly toward the center of the distance sensor.
    5. Move the target board

      as necessary so that center of target board aligns with center of distance sensor.

    6. Turn the laser assembly OFF when done.

    Are using Hunter alignment equipment?

    YES>>

    Refer to Hunter's equipment instructions for complete vehicle set up and target board setting. Then, refer to Distance Sensor Adjustment.

    NO>>

    GO TO 2.

  2. INSTALLING LASER ASSEMBLY
    NOTE: SYMBOL
    • Insure the steering wheel is positioned in the center straight forward position.
    • Insure all 4 vehicle wheels do not contain any physical damage.
    1. Install the wheel adapter

      on the right front wheel.

      GNSDB109769Courtesy of NISSAN NORTH AMERICA, INC.
    2. Mount the laser assembly SYMBOL to the wheel adapter

      as shown in the figure, below.

      NOTE: SYMBOL When the power switch is turned ON, the front laser signal SYMBOL will be emitted toward the front target board, and the rear laser signal SYMBOL will be emitted toward the rear of the vehicle.

    >>

    GO TO 3.

  3. SETTING UP REAR STAND
    1. Place the rear stand next to the right rear tire as shown in the figure, below.
      GNSDB124735Courtesy of NISSAN NORTH AMERICA, INC.
    2. Turn the laser assembly ON allowing the laser beam to be emitted through the front and rear laser assembly openings.
    3. Measure and record the distance (Dr ) between the edge of the right rear wheel and the laser beam

      on the rear stand (horizontal line).

    4. Measure and record the height (Hr ) between the laser beam

      on the rear stand and ground level (vertical line).

    5. Measure and record the distance (Df ) between the edge of the right front wheel and the laser beam signal/opening

      on the laser assembly (horizontal line).

      GNSDB110245Courtesy of NISSAN NORTH AMERICA, INC.
    6. Measure and record the height (Hf ) between the laser beam signal/opening

      on the laser assembly and ground level (vertical line).

      NOTE: SYMBOL
      • Horizontal adjustment [front distance (Df) and rear distance (Dr ) ] is accomplished by slowly turning the steering wheel until the 2 distances are the same.
      • Vertical adjustment [front height (Hf) and rear height (Hr ) ] is accomplished by rotating the laser assembly around its axis until the two heights are the same.
      • Directional arrows SYMBOL and SYMBOL are shown to illustrate the direction of the laser assembly beams.
    7. Adjust laser beam as necessary until the two distances match and the two heights match.
      NOTE: SYMBOL Must be verify both horizontal and vertical adjustments anytime one adjustment is made.

    >>

    Refer to Setting The Target Board.

Setting The Target Board

Accurate adjustment of the radar alignment requires that the target board be accurately positioned.

CAUTION:

If the radar alignment is adjusted with the target board in the incorrect position, the FEB/PFCW systems will not function properly or the alignment procedure may not be completed successfully.

  1. TARGET BOARD FINAL SETTING
    1. With the target board arm extended, the laser beam

      emitted by the laser assembly SYMBOLSYMBOL

      GNSDB109174Courtesy of NISSAN NORTH AMERICA, INC.
      NOTE: SYMBOL When adjusted properly, reflected laser beam SYMBOL must align with emitted laser beam SYMBOL and the two laser beams will be seen as one.
    2. Rotate the target board to achieve the necessary horizontal adjustment.
    3. Adjust the target board leveling screws to achieve the necessary vertical adjustment.
    4. The figure shown illustrates the laser beam SYMBOL emitted by the laser assembly

      and its reflection SYMBOL

      GNSDB108891Courtesy of NISSAN NORTH AMERICA, INC.

    >>

    GO TO 2.

  2. CHECK THE POSITION OF THE TARGET BOARD

    Do not place anything other than the target board in the space shown in front of the vehicle (view from top).

    GNSDB108917Courtesy of NISSAN NORTH AMERICA, INC.
    Target board arm SYMBOL Target board SYMBOL Distance sensor
    SYMBOL Vehicle
    SYMBOL Distance between front wheel and laser beam (Df) SYMBOL Distance between rear wheel and laser beam (Dr) SYMBOL Height between front laser beam and ground (Hf)
    SYMBOL Height between rear laser beam and ground (Hr) SYMBOL Target board center position SYMBOL 1010 - 1110 mm (39.76 - 43.7 in)

    >>

    Refer to Distance Sensor Adjustment.

Distance Sensor Adjustment

The radar alignment is performed automatically with CONSULT.

CAUTION:

Perform all necessary work for radar alignment until the adjustment completes as shown in the procedure. If the procedure does not complete, the FEB/ProPILOT Assist/PFCW systems are inoperable.

  1. SELECT WORK SUPPORT ITEM
    1. Start the engine.
    2. Connect CONSULT and select "Work support" of "LASER/RADAR".
    3. Select "MILLIWAVE RADAR ADJUST".
    NOTE: SYMBOL Confirm the following items;
    • The target should be accurately placed.
    • The vehicle should be stopped.

    Is the radar alignment start screen displayed?

    YES>>

    GO TO 2

    NO-1 (When "Vehicle is moving" is displayed) >>

    Stop the vehicle and touch "Retry" to perform radar alignment again.

    NO-2 (When "System malfunction is detected" is displayed) >>

    GO TO 4.

    NO-3 (When error message other than the above is displayed) >>

    GO TO 3

  2. START RADAR ALIGNMENT

    Select "Start" after the conditions displayed on CONSULT are satisfied.

    CAUTION:

    Never select "Start" when the target is not accurately placed.

    NOTE: SYMBOL It may take several 10s of seconds until the result is displayed.

    Is the result normal?

    YES>>

    RADAR ALIGNMENT END

    NO-1 (When "Vehicle is moving" is displayed) >>

    Stop the vehicle and touch "Retry" to perform radar alignment again.

    NO-2 (When "System malfunction is detected" is displayed) >>

    GO TO 4.

    NO-3 (When error message other than the above is displayed) >>

    GO TO 3.

  3. CHECK EXECUTION CONDITION

    Check if the following conditions are satisfied.

    • The target should be accurately placed.
    • The vehicle should be stopped.

    Is the result normal?

    YES>>

    GO TO 4.

    NO>>

    Check the condition and perform the radar alignment again.

  4. CHECK SELF-DIAGNOSIS RESULTS OF LASER/RADAR
    1. Perform "All DTC Reading".
    2. Check if the DTC is detected on the self-diagnosis results of LASER/RADAR. Refer to DTC Index .
    3. Perform trouble diagnosis for the detected DTC, and repair or replace the identified malfunctioning parts.
    4. Ignition switch OFF to ON, and perform the radar alignment again.

    >>

    WORK END.

About FixVault
