Exploded View

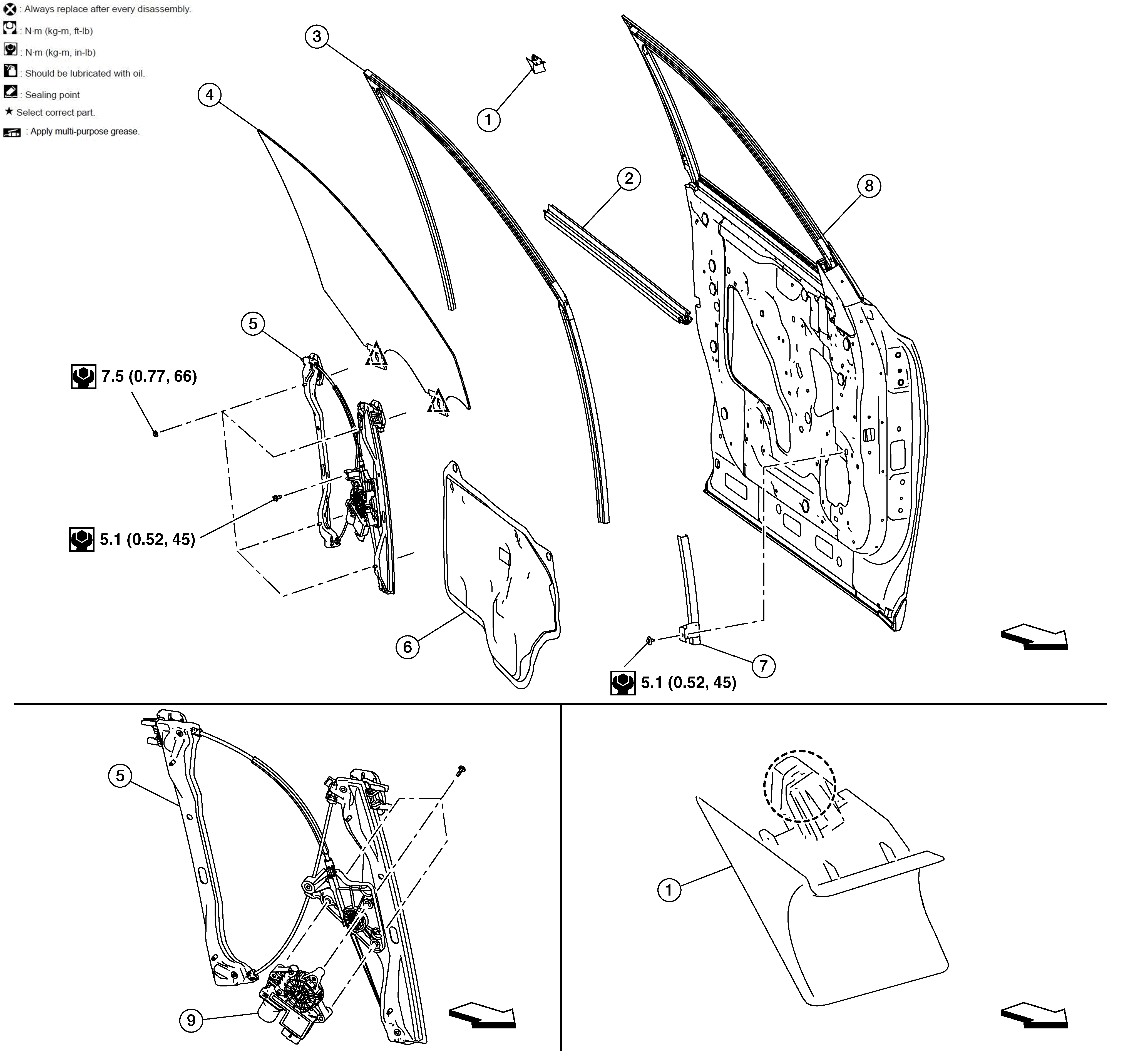

Fig 1: Front Door Glass With Torque Specifications

GNSDB139735

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front door sash cover inner	2.	Door inside seal	3.	Door glass rubber run
4.	Front door glass	5.	Front door regulator	6.	Vapor barrier
7.	Door glass front run	8.	Door panel	9.	Front power window motor
	Pawl		Clip	:	Front
