Exploded View

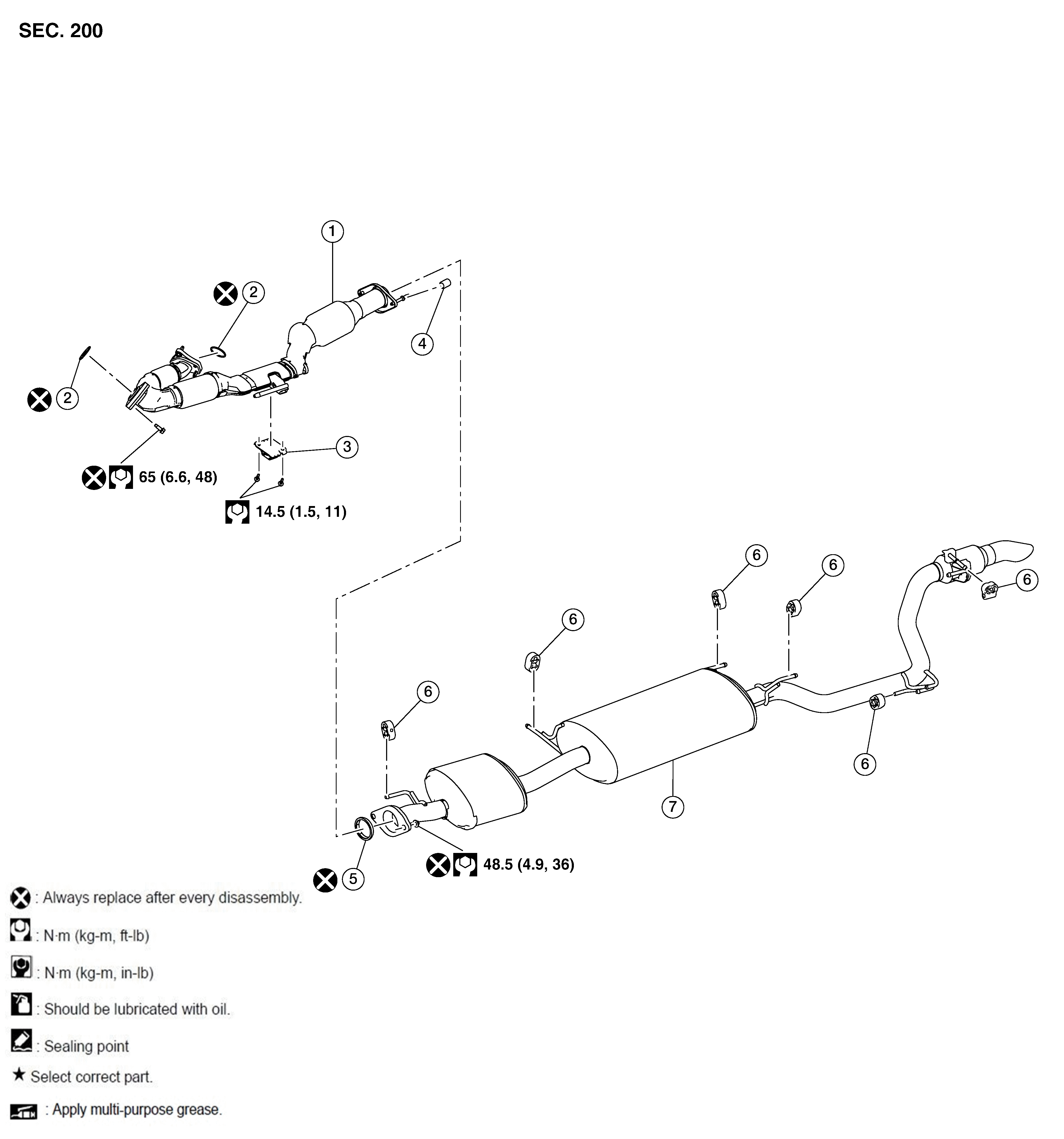

Fig 1: Exhaust System With Torque Specifications

GNSDB140071

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front exhaust tube	2.	Gasket	3.	Exhaust mounting bracket
4.	Exhaust spring	5.	Rear seal bearing	6.	Exhaust tube rubber hanger
7.	Rear exhaust tube
