Exploded View

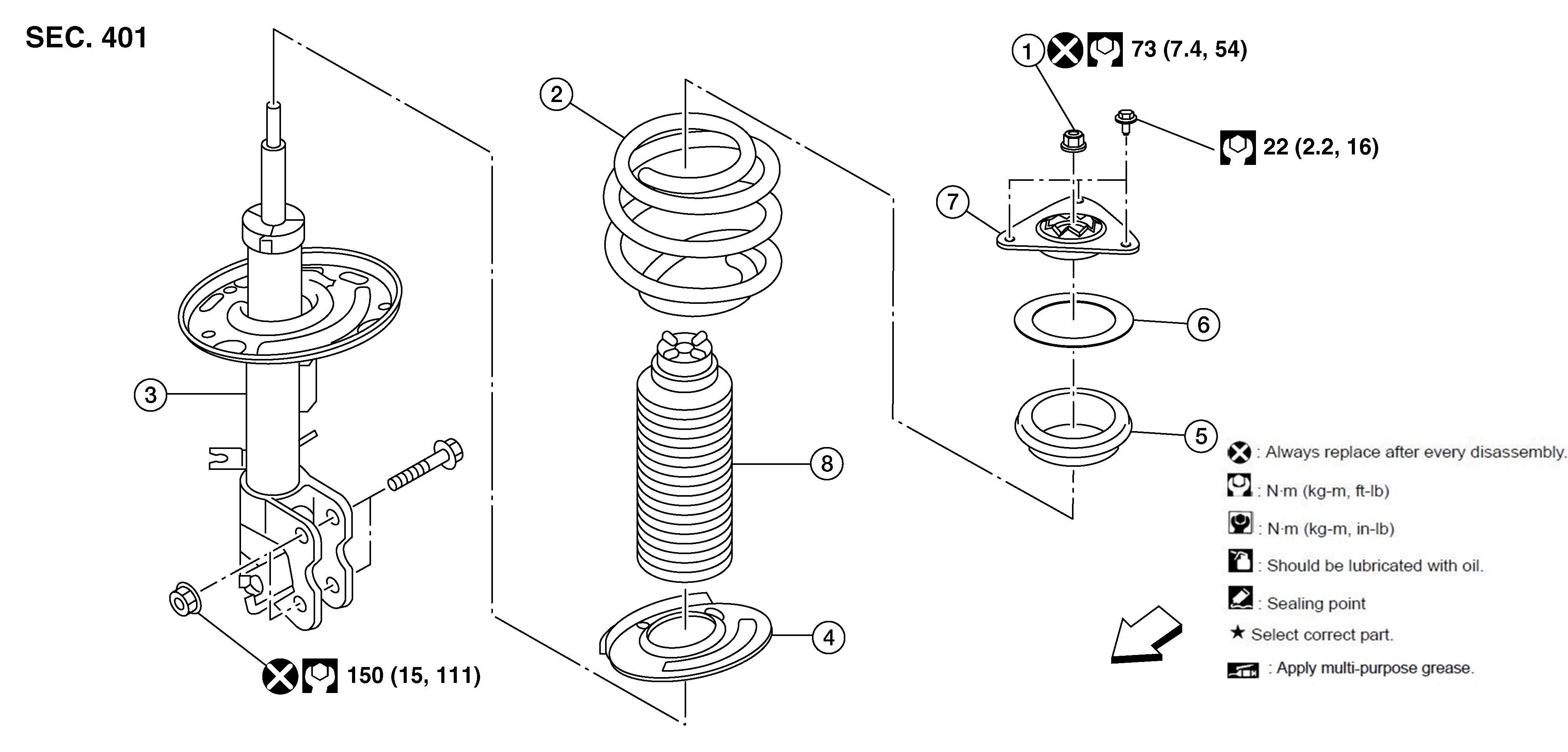

Fig 1: Front Coil Spring And Strut With Torque Specifications

GNSDB138137

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Piston rod lock nut	2.	Spring	3.	Strut
4.	Lower rubber seat	5.	Strut mount bearing	6.	Seal
7.	Strut mount insulator	8.	Bound bumper		Front
