Exploded View

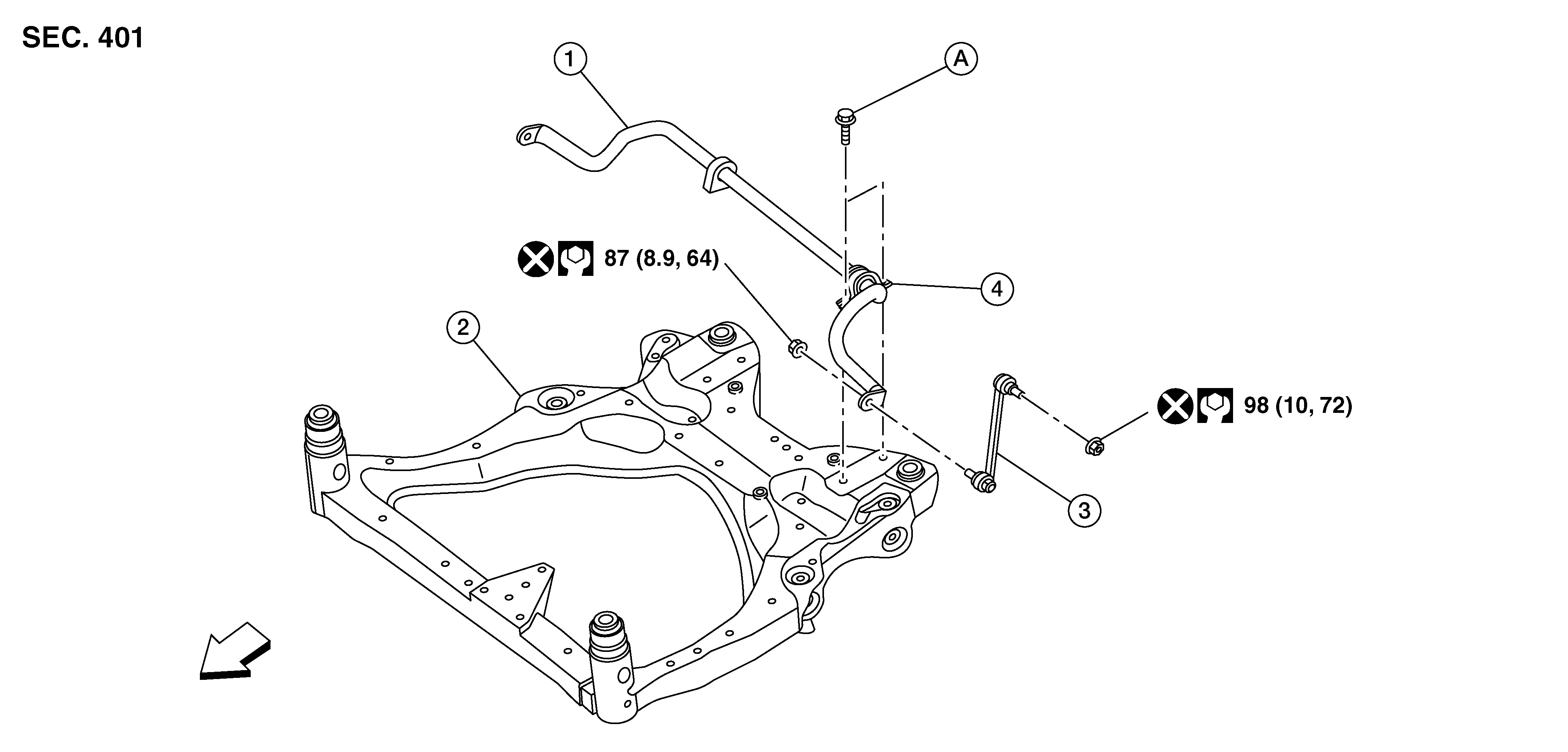

Fig 1: Front Stabilizer With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer bar	2.	Front suspension member	3.	Connecting rod
A.	Refer to Removal and Installation .		Front
