Exploded View

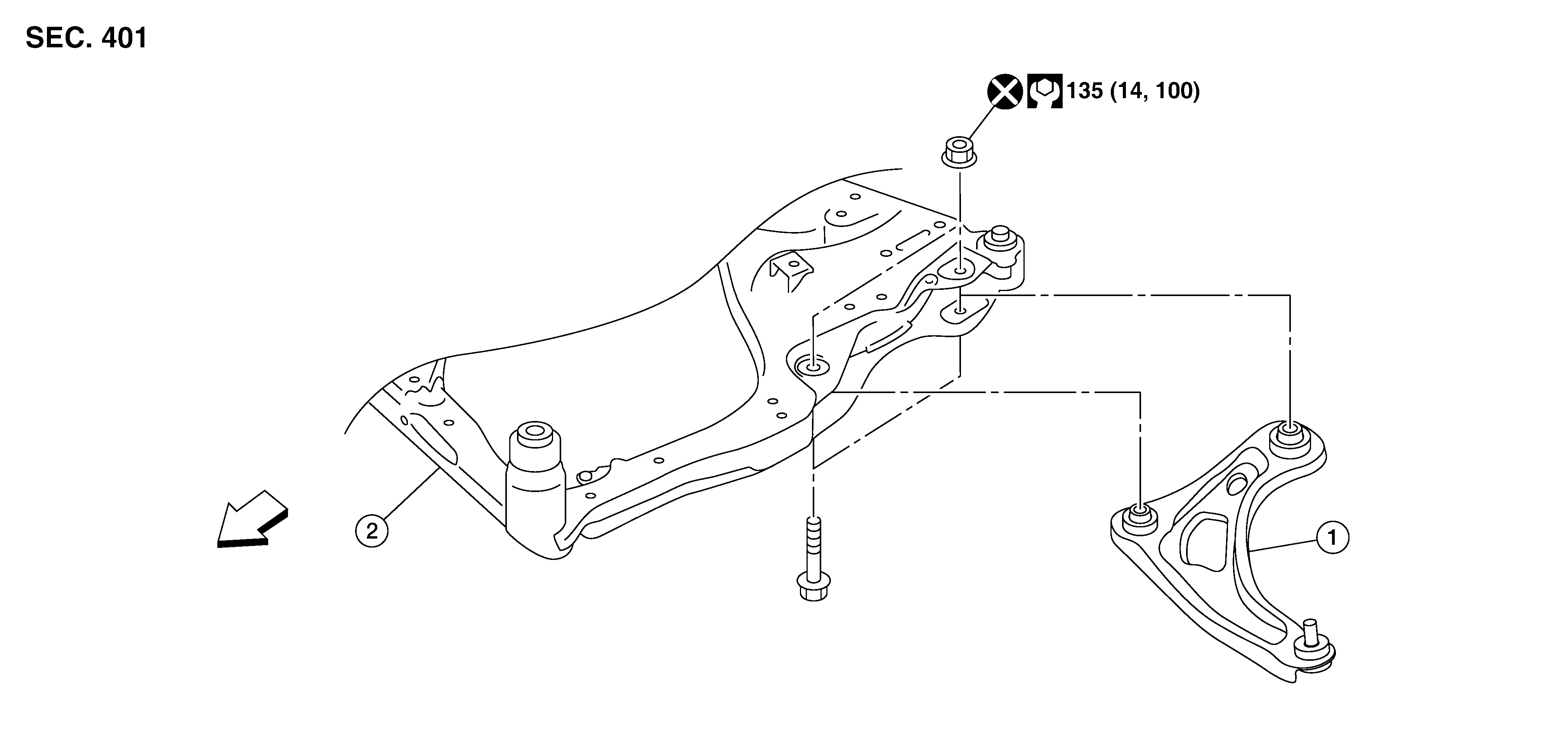

Fig 1: Transverse Link With Torque Specifications

GNSDB136745

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transverse link

2.

Front suspension member

Front
