Exploded View

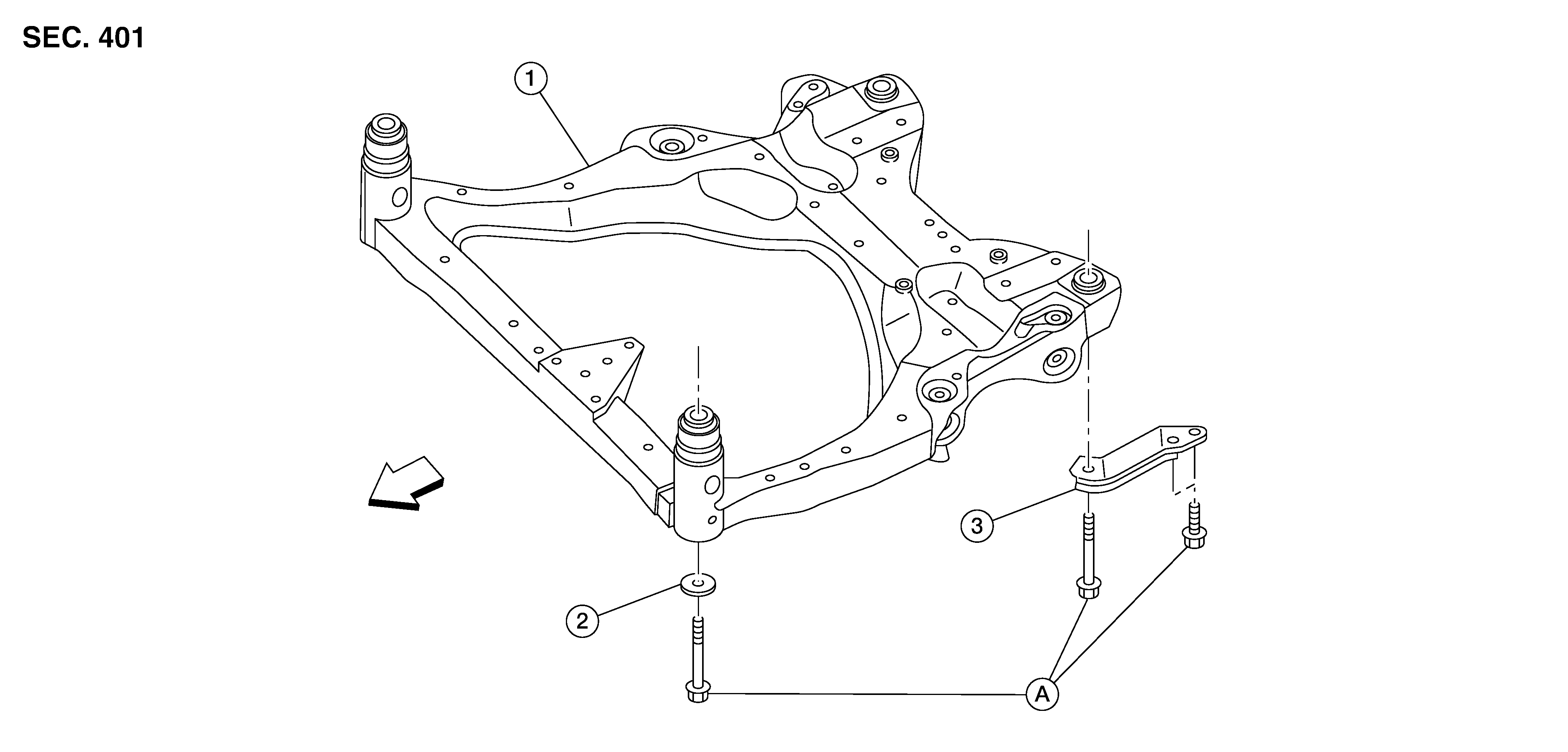

GNSDB138160Courtesy of NISSAN NORTH AMERICA, INC.
1. Front suspension member 2. Rebound stopper 3. Front suspension member stay
A. Refer to INSTALLATION . SYMBOL Front
