Component Location

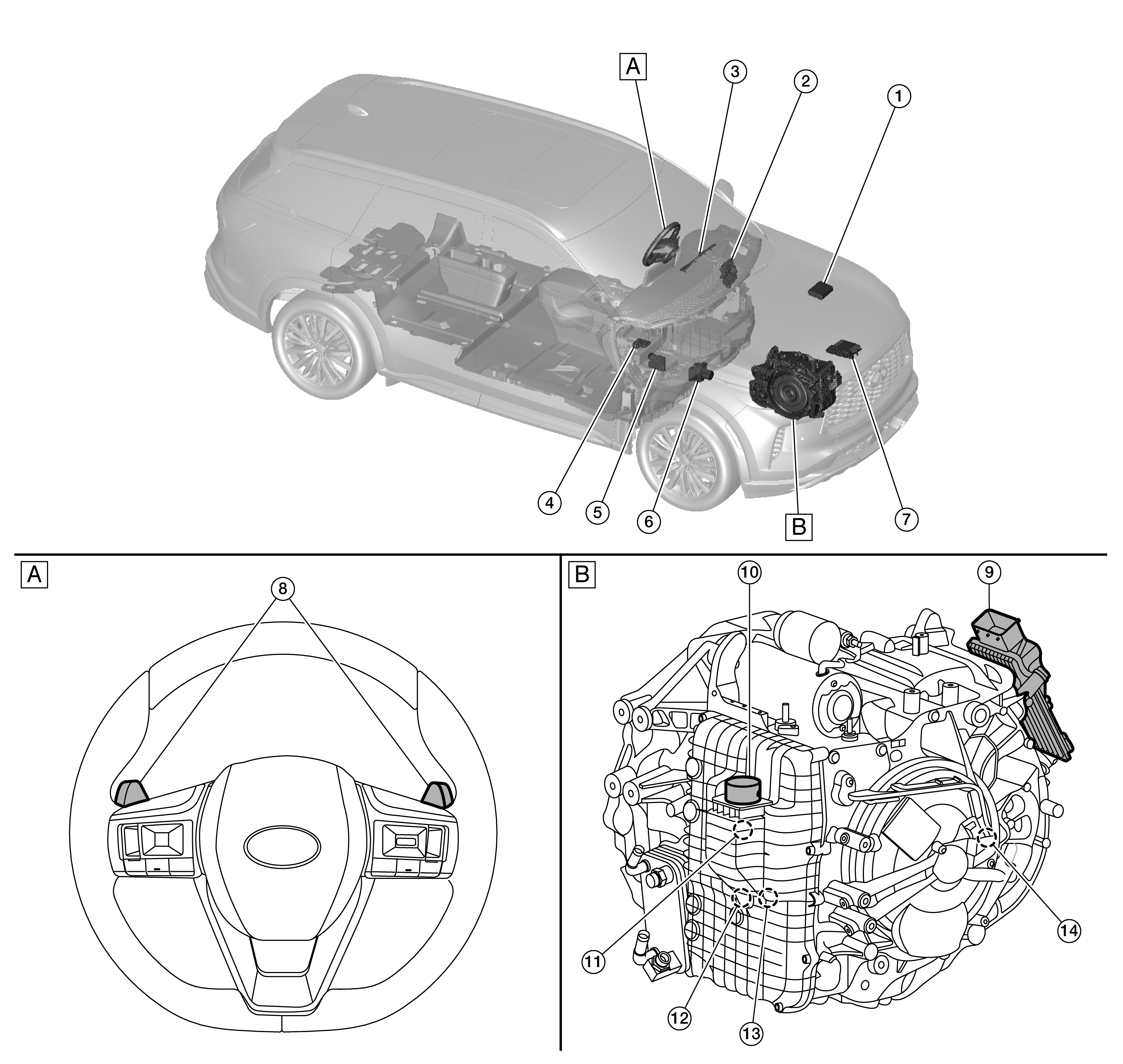

GNSDB139654Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL IPDM E/R SYMBOL BCM Refer to Component Location . SYMBOL Combination meter Refer to Removal and Installation (Full TFT Meter) or Removal and Installation (7 Inch Information Display).
SYMBOL Intelligent Key unit SYMBOL A/C auto amp SYMBOL ABS actuator and electric unit (control unit) Refer to Component Location .
SYMBOL ECM Refer to Component Location . SYMBOL Paddle shifter SYMBOL TCM
SYMBOL A/T unit connector SYMBOL Control valve SYMBOL Dog clutch F position sensor
SYMBOL Sensor unit SYMBOL Dog clutch A position sensor
SYMBOL Steering wheel SYMBOL Side of transaxle assembly
