System Description

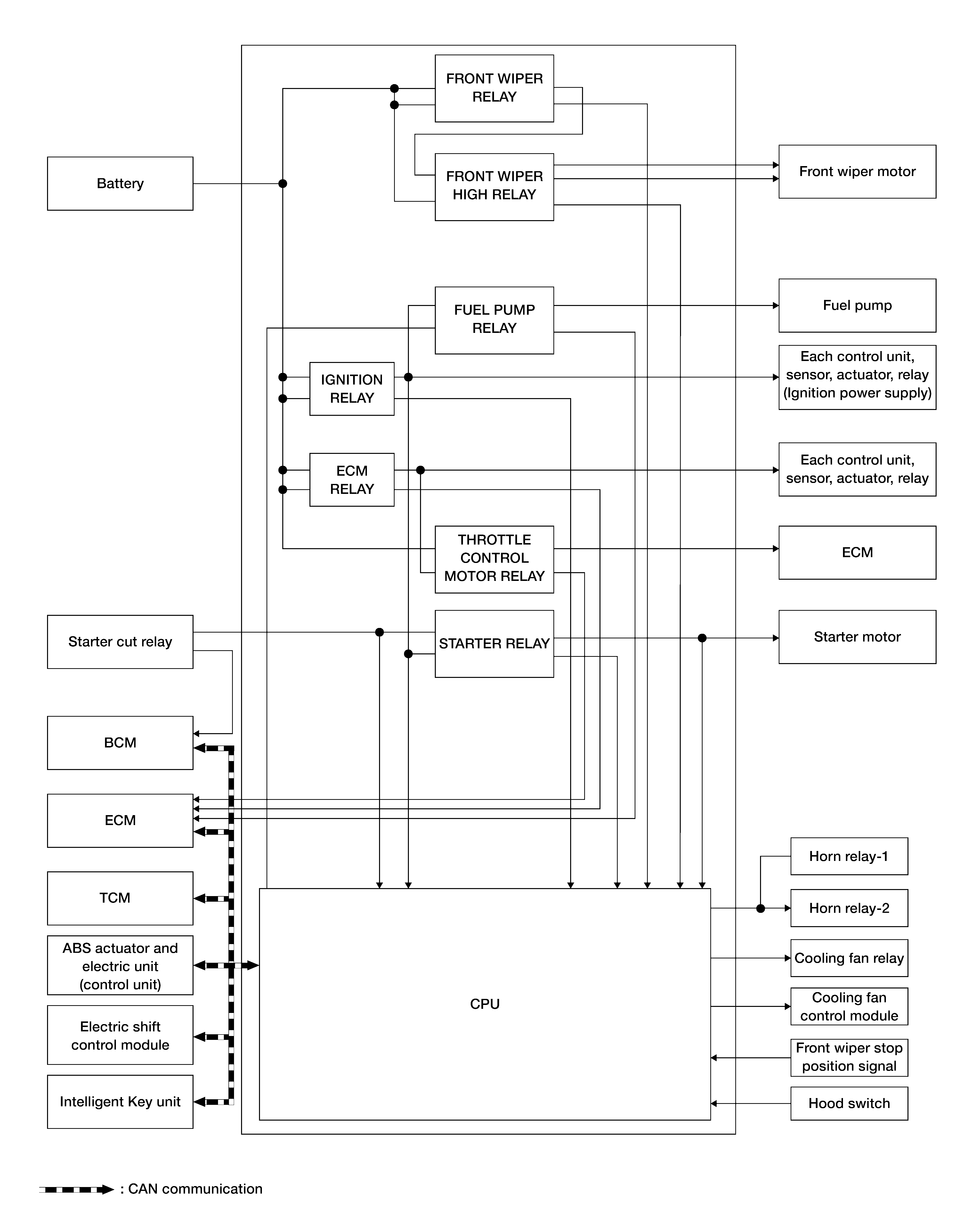

SYSTEM DIAGRAM
DESCRIPTION
The IPDM E/R activates the internal control circuit to perform relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication.
NOTE:
IPDM E/R integrated relays cannot be removed.
| Control relay | Input/output | Transmit unit | Control part | Reference |
|---|---|---|---|---|
|
Front wiper request signal | BCM (CAN) | Front wiper motor | System Description (with rain sensing front wipers) or System Description (without rain sensing front wipers) |
| Front wiper stop position signal | Front wiper motor | |||
| Starter relay | Ignition switch ON signal | BCM (CAN) | Starter motor | System Description (without stop/start system) or System Description (with stop/start system) |
| Cranking enable (ECM) signal | ECM (CAN) | |||
| Cranking enable (TCM) signal | TCM (CAN) | |||
| Ignition relay | Ignition switch ON signal | BCM (CAN) | Each control unit, sensor, actuator, relay (Ignition power supply) | - |
| Vehicle speed signal | ABS actuator and electric unit (control unit) (CAN) |
NOTE:
ECM controls the following relays:
- ECM relay
- Fuel pump relay
- Throttle control motor relay
