Home › Infiniti › 2024 › QX60 Autograph, FWD › Repair and Diagnosis › Steering › Steering Column › Steering System › Removal And Installation › Lower Joint › Exploded View

Exploded View

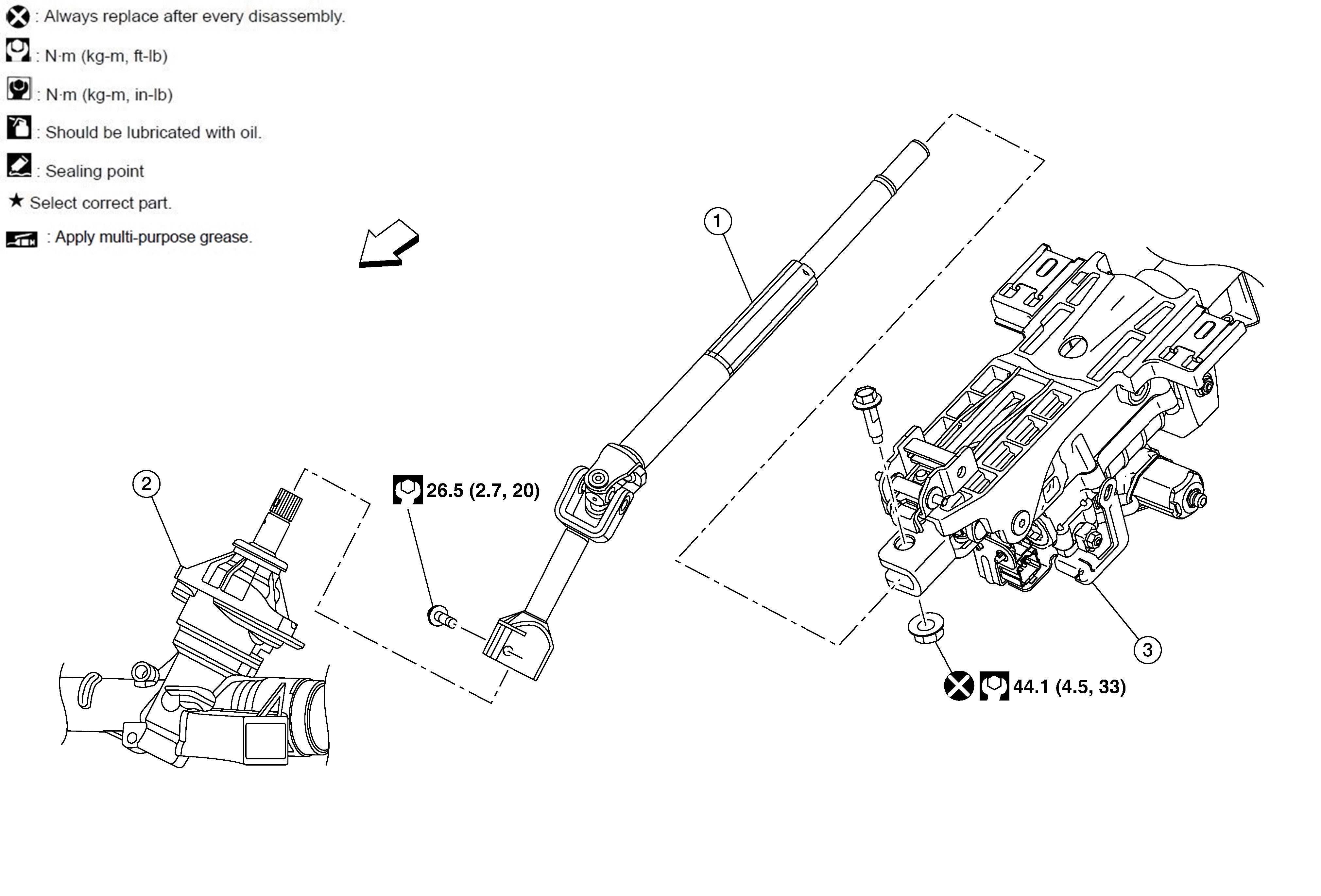

Fig 1: Lower Joint With Torque Specifications
GNSDB139639Courtesy of NISSAN NORTH AMERICA, INC.
1. Lower joint 2. Steering gear 3. Steering column
SYMBOL Front
