Power Window Control System
›
Wiring Diagram
›
Power Window System
›
Wiring Diagram

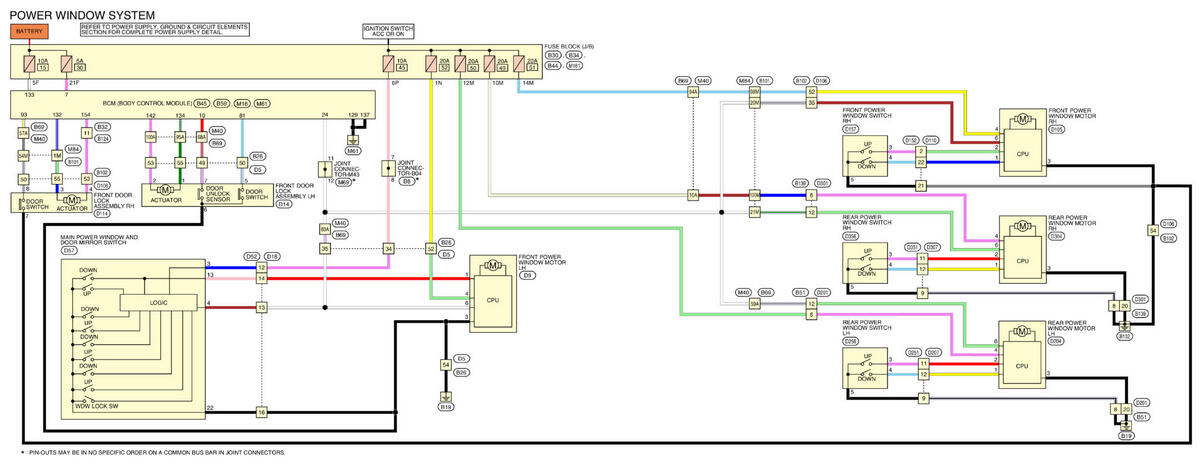

Power Window System: Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
