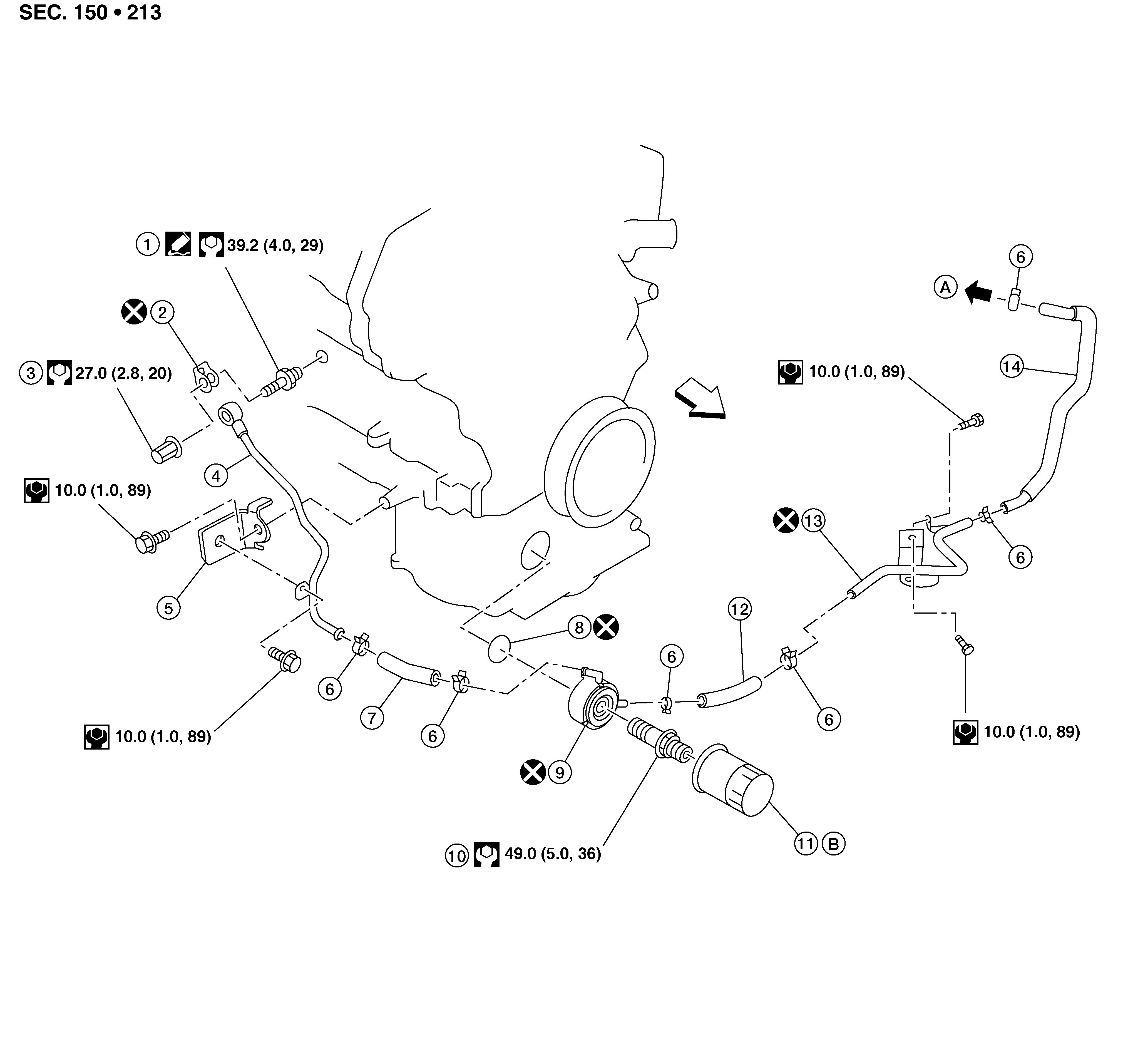

Exploded View
| 1. | Connector bolt | 2. | Copper gasket | 3. | Water drain plug |
| 4. | Water pipe | 5. | Bracket | 6. | Clamp |
| 7. | Water hose | 8. | O-ring | 9. | Oil cooler |
| 10. | Connector bolt | 11. | Oil filter | 12. | Water hose |
| 13. | Water pipe | 14. | Water hose | A. | To water connector. Refer to Exploded View . |
| B. | Refer to Removal and Installation | Engine front | |||
