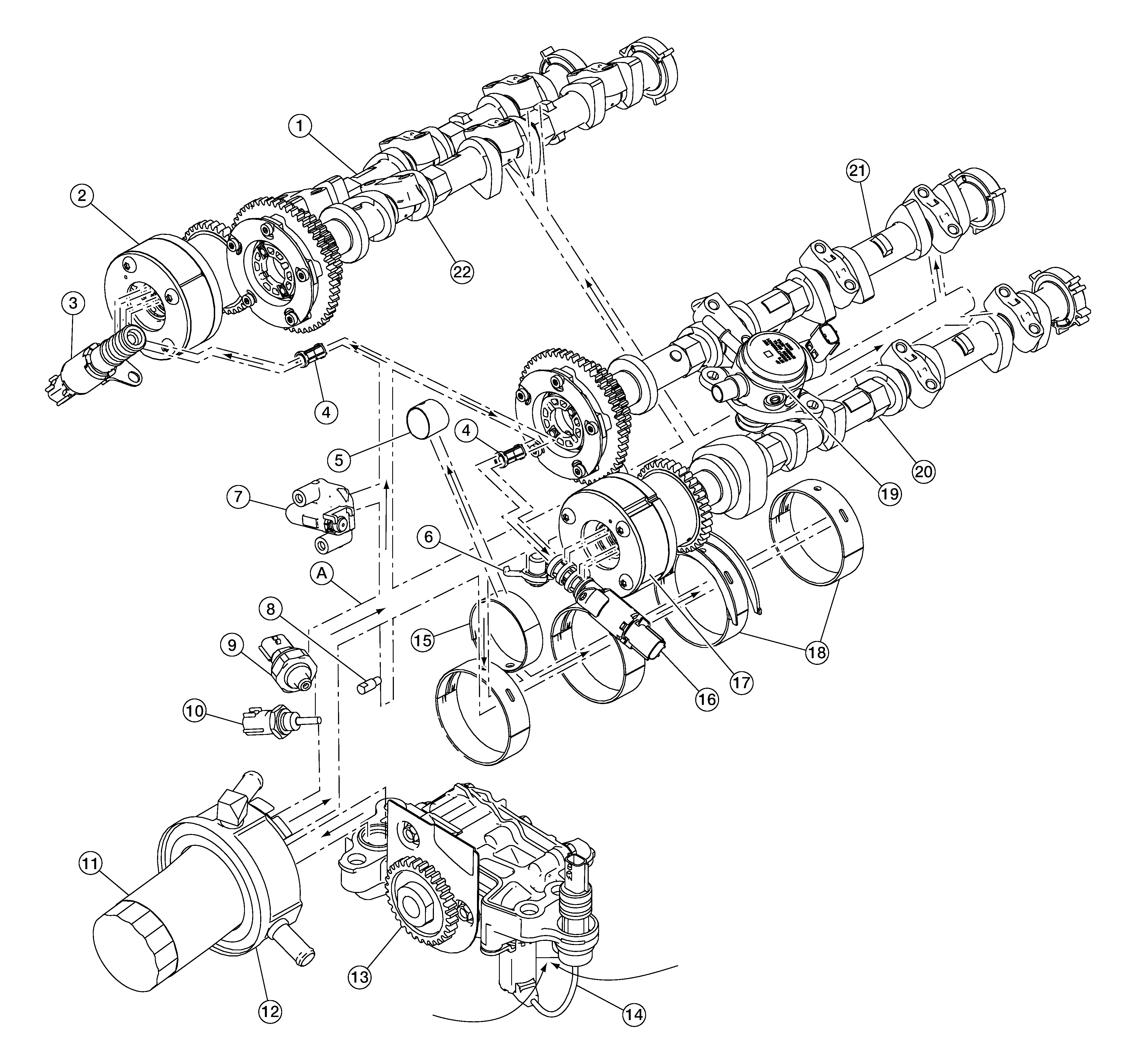

| 1. |
Exhaust camshaft (bank 1) |
2. |
Exhaust camshaft sprocket (bank 1) |
3. |
Exhaust valve timing control solenoid valve (bank 1) |
| 4. |
Filter |
5. |
Connecting rod bushing |
6. |
Oil jet |
| 7. |
Timing chain tensioner (primary) |
8. |
Timing chain oil jet |
9. |
Engine oil pressure sensor |
| 10. |
Engine oil temperature sensor |
11. |
Oil filter |
12. |
Oil cooler |
| 13. |
Oil pump |
14. |
Engine oil pressure control solenoid valve |
15. |
Connecting rod bearings |
| 16. |
Exhaust valve timing control solenoid valve (bank 2) |
17. |
Exhaust camshaft sprocket (bank 2) |
18. |
Main bearings |
| 19. |
High pressure fuel pump |
20. |
Exhaust camshaft (bank 2) |
21. |
Intake camshaft (bank 2) |
| 22. |
Intake camshaft (bank 1) |
A. |
Main gallery |
