Console Power Socket

REMOVAL

1. Open center console assembly lid.

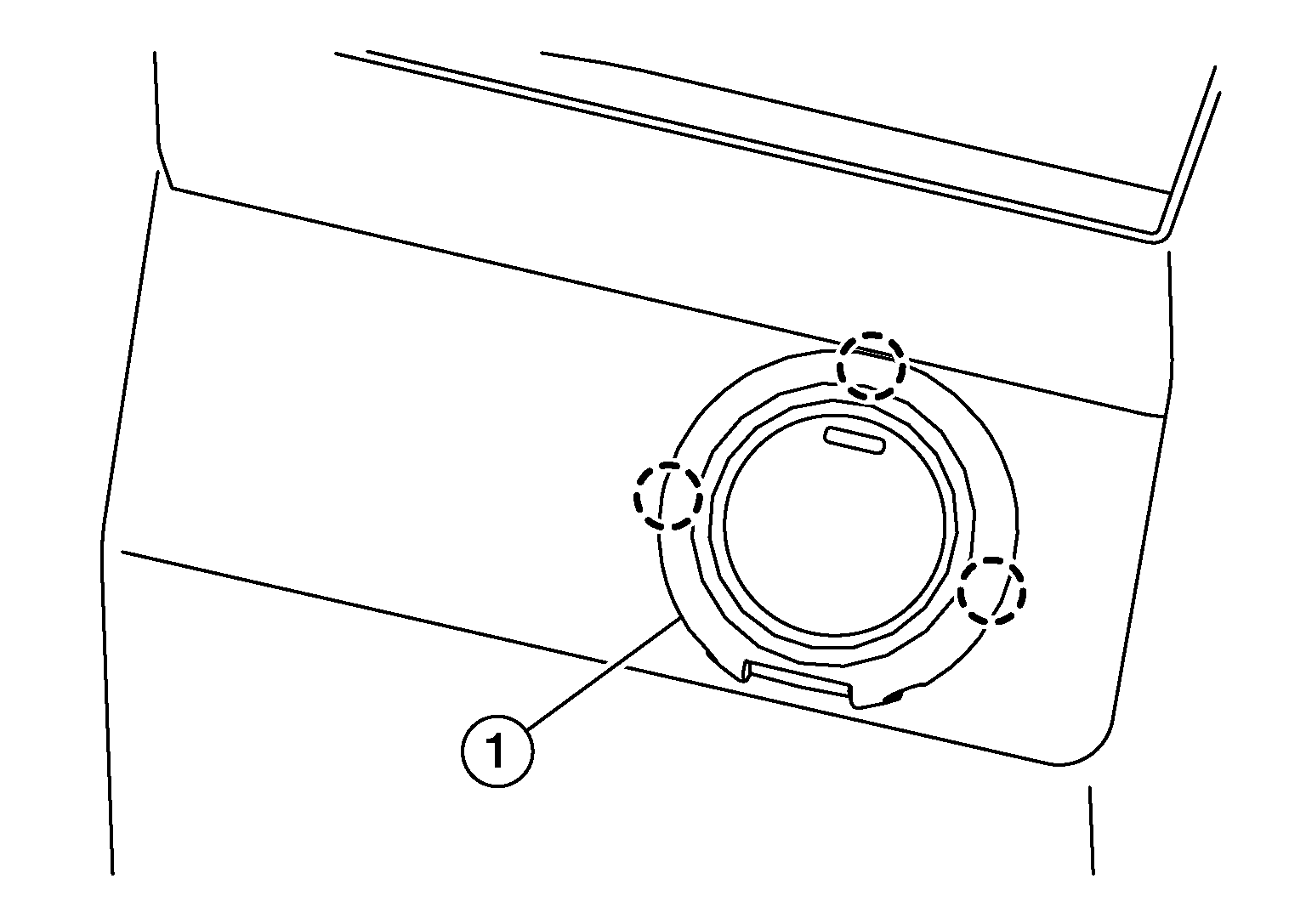

2. Release pawls and remove console power socket (1) from center console assembly.

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

3. Disconnect harness connector from console power socket.

INSTALLATION

Installation is in the reverse order of removal.
