Removal and Installation

1. Remove shift selector finisher. Refer to Exploded View .

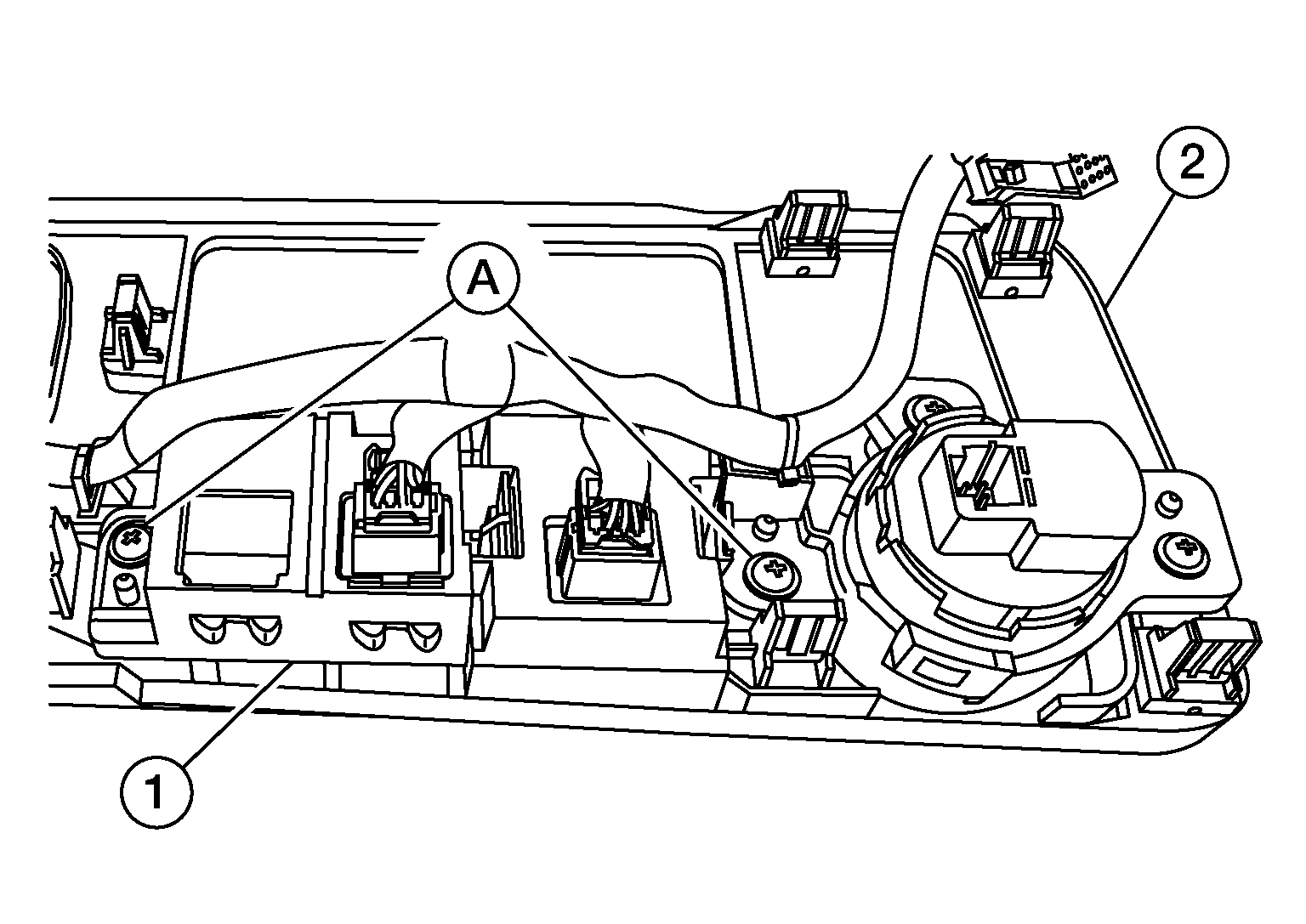

2. Remove the screws (A) and remove switch carrier (1) from shift selector finisher (2).

   Courtesy of NISSAN NORTH AMERICA, INC.

3. Disconnect harness connector from the stop/start off switch.

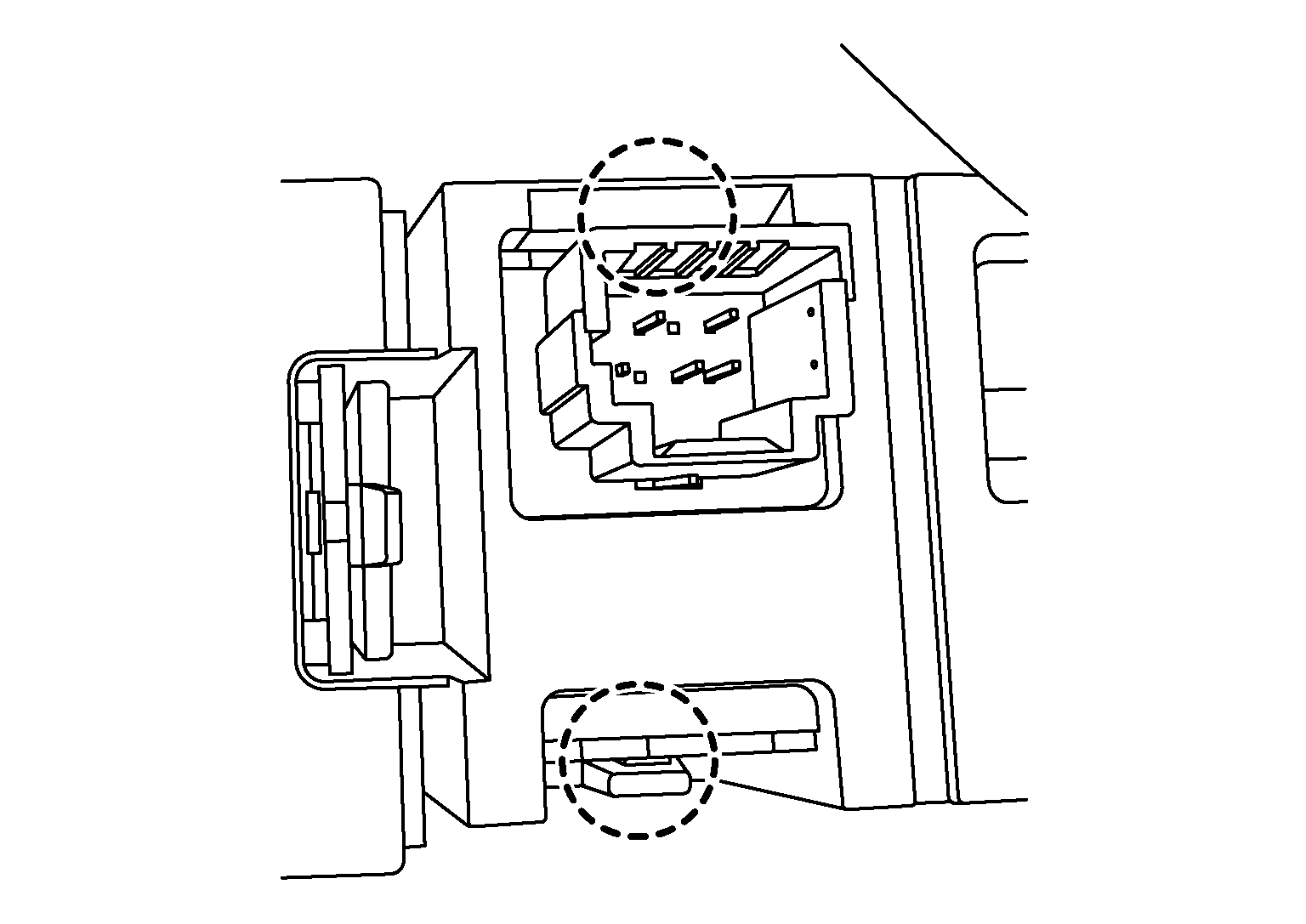

4. Using a suitable tool, release pawls and remove stop/start off switch.

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
