DISTANCE SENSOR : Exploded View

CAUTION:

Always perform the radar alignment and check the operation after the replacement, removal and installation of Distance sensor. Refer to Work Procedure .

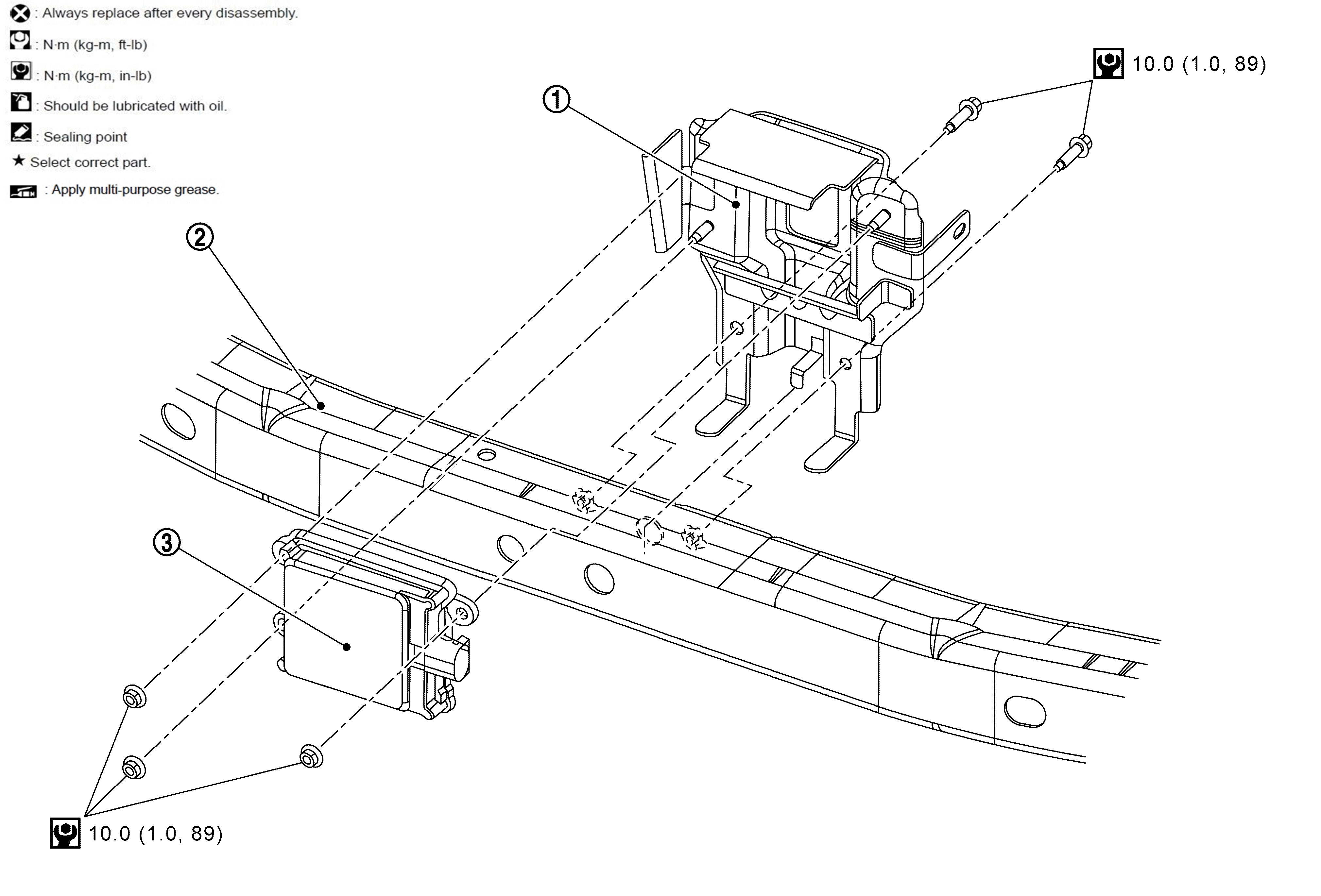

Fig 1: Distance Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Bracket		Front bumper reinforcement		Distance sensor
	: N.m (kg-m, in-lb)
