Description
›
System
›
Lubrication System
›

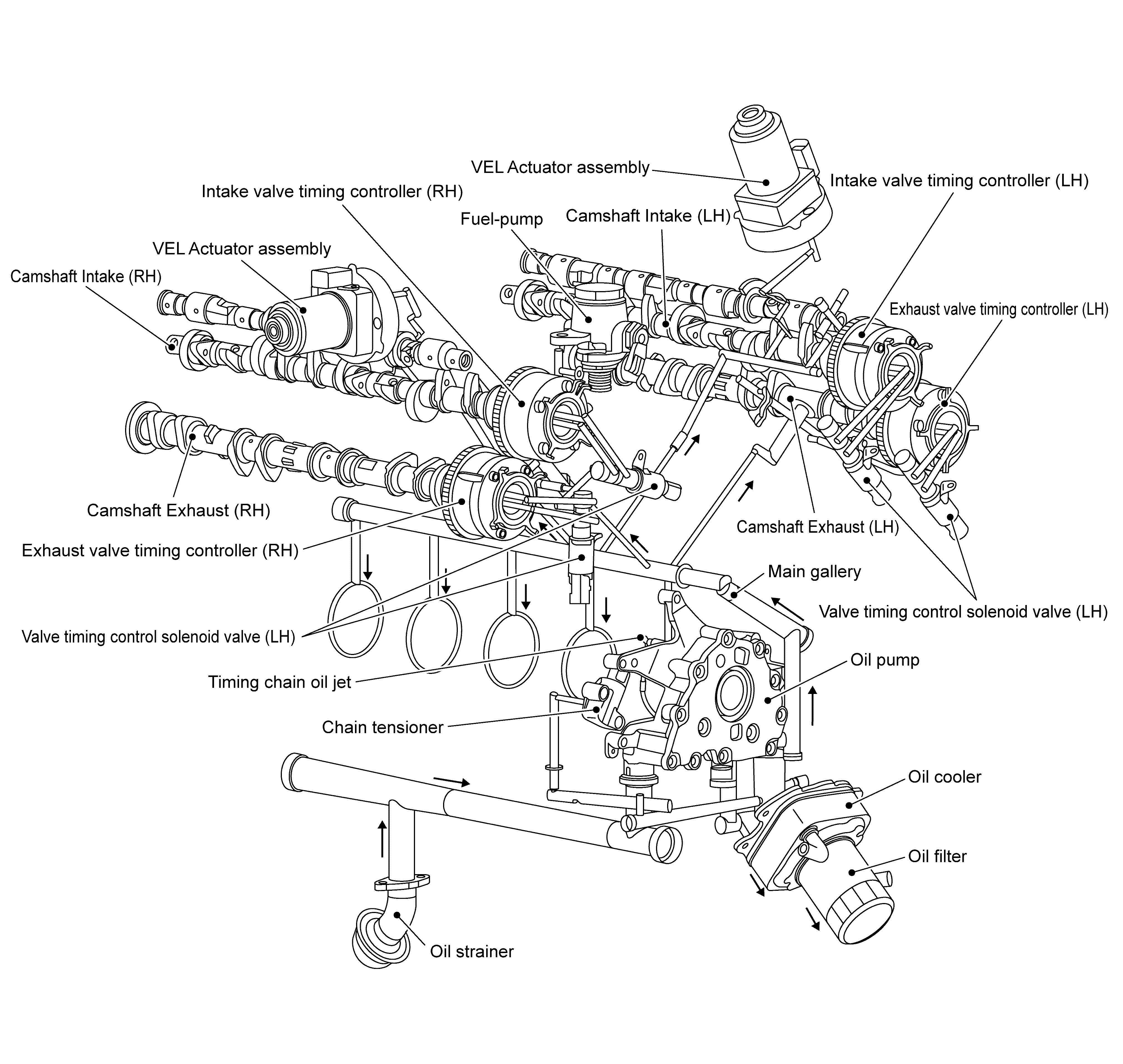

System Description
System Description
Courtesy of NISSAN NORTH AMERICA, INC.

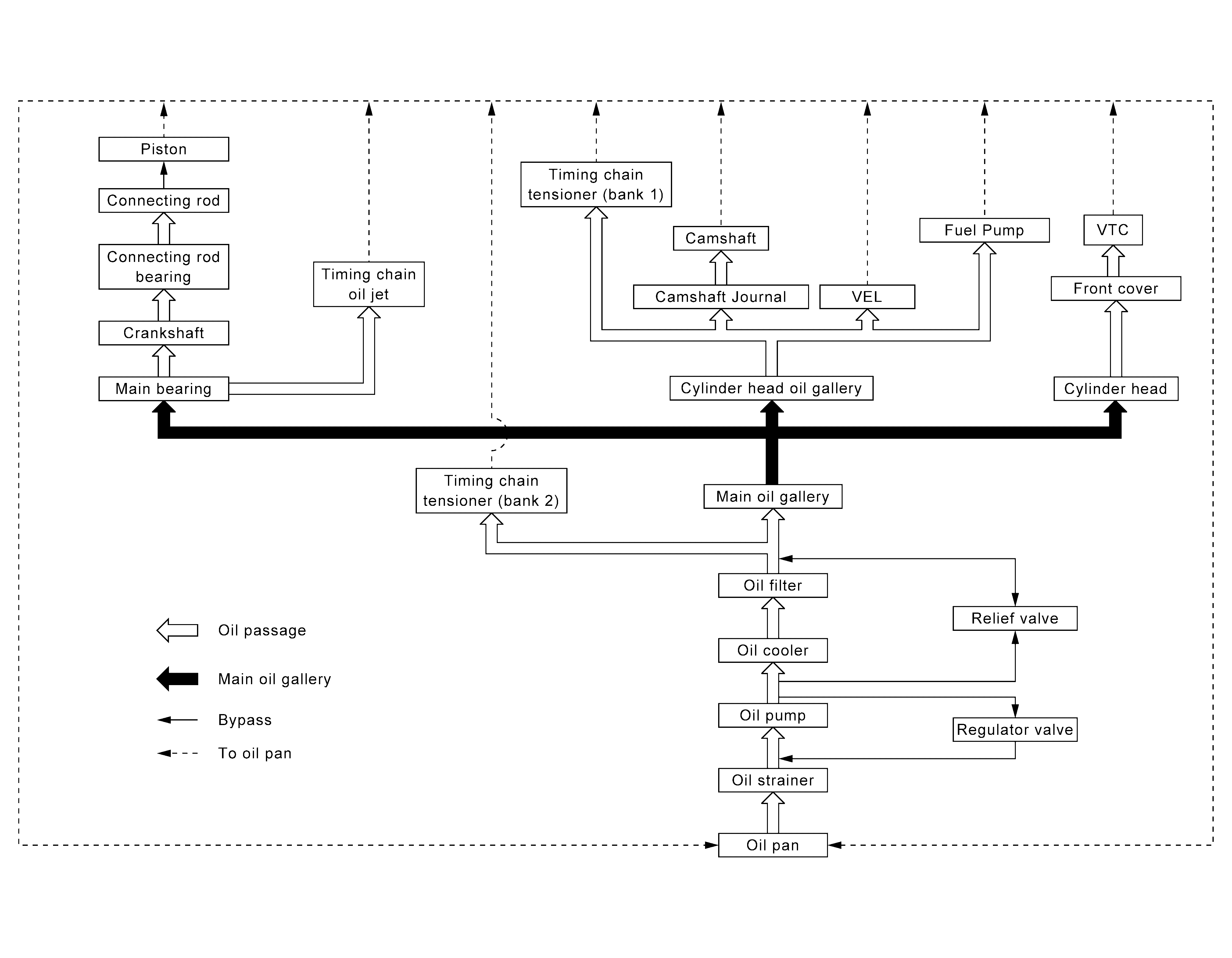

Engine Lubrication System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
