Home › Isuzu › 1985 › I-Mark 2D Hatchback, Automatic › Repair and Diagnosis › Engine Performance › System › Feedback Carburetor System › Testing › Mixture Control Valve Check, Chart 3

Mixture Control Valve Check, Chart 3

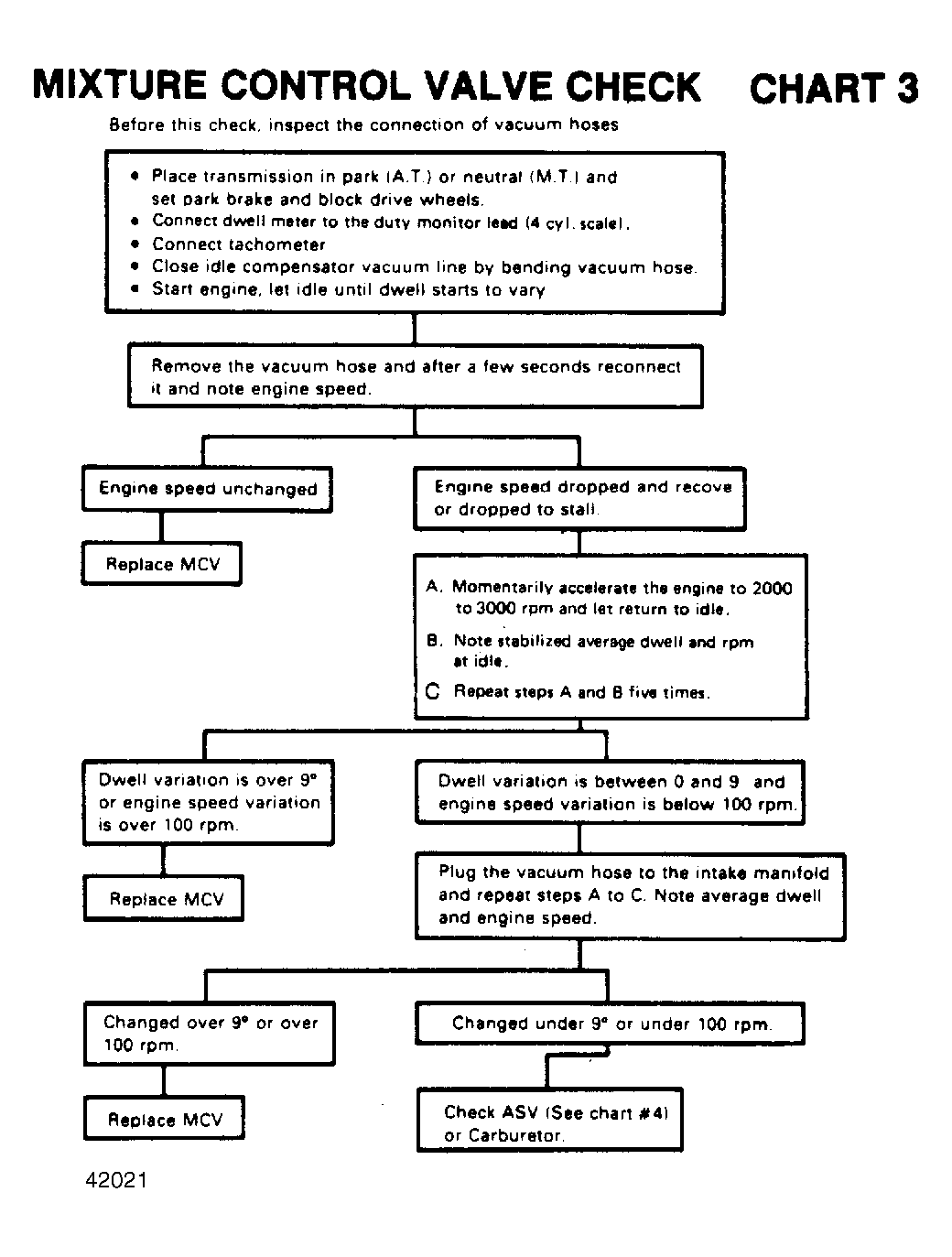

Fig 1: Mixture Control Valve Check, Chart 3
G42021
