Vacuum Control Valve Check, Chart 1
Vacuum Control Valve Check, Chart 1

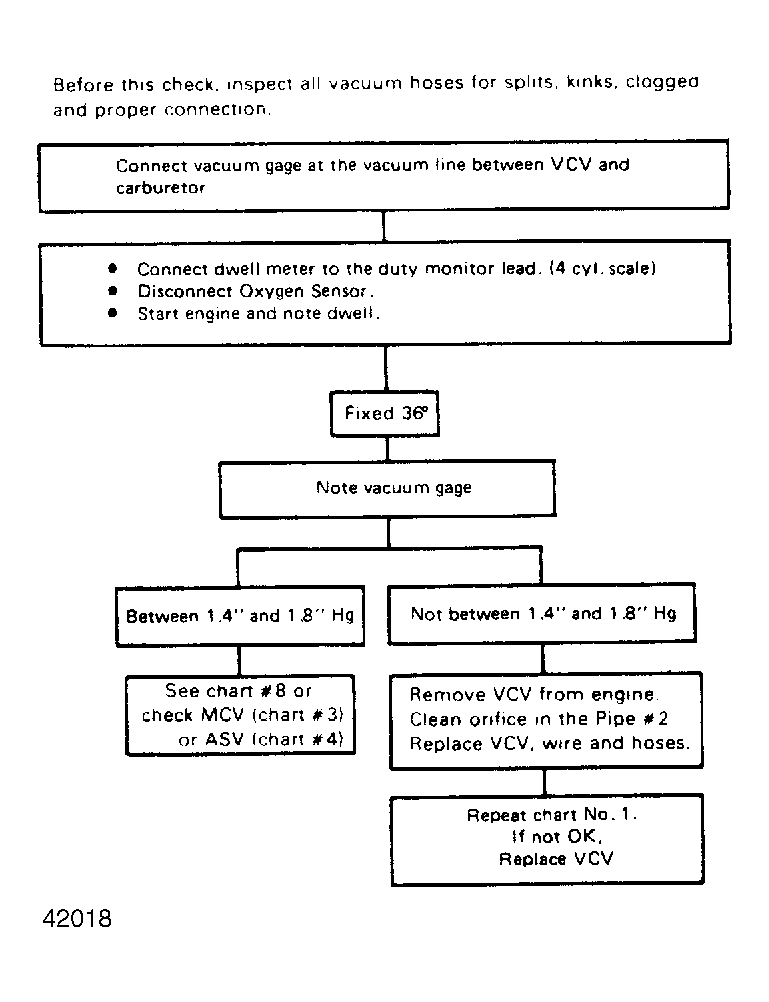

Fig 1: Vacuum Control Valve Check, Chart 1
