Wiring Diagrams

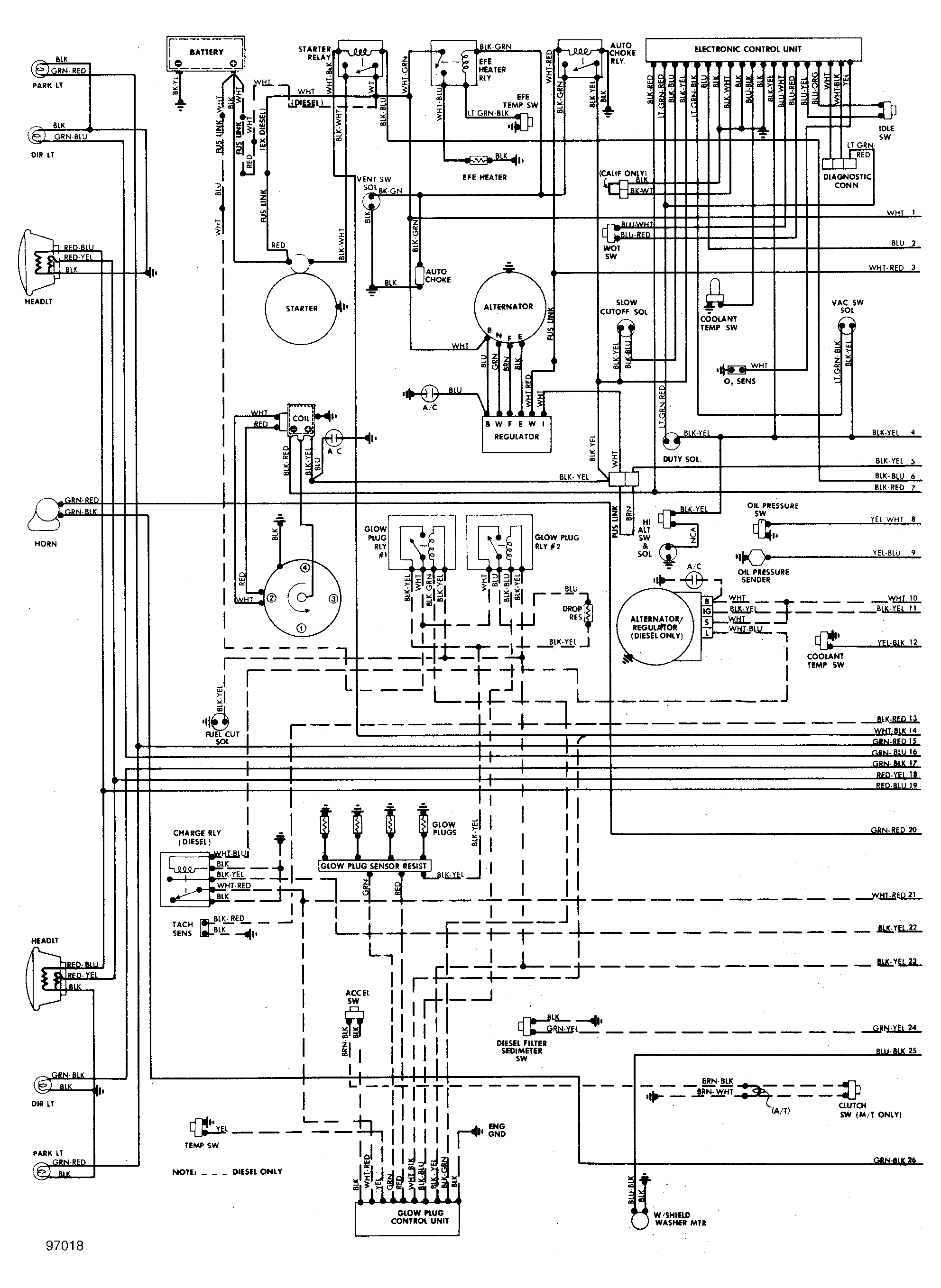

Fig 1: Engine Compartmant & Engine Control Unit
G97018

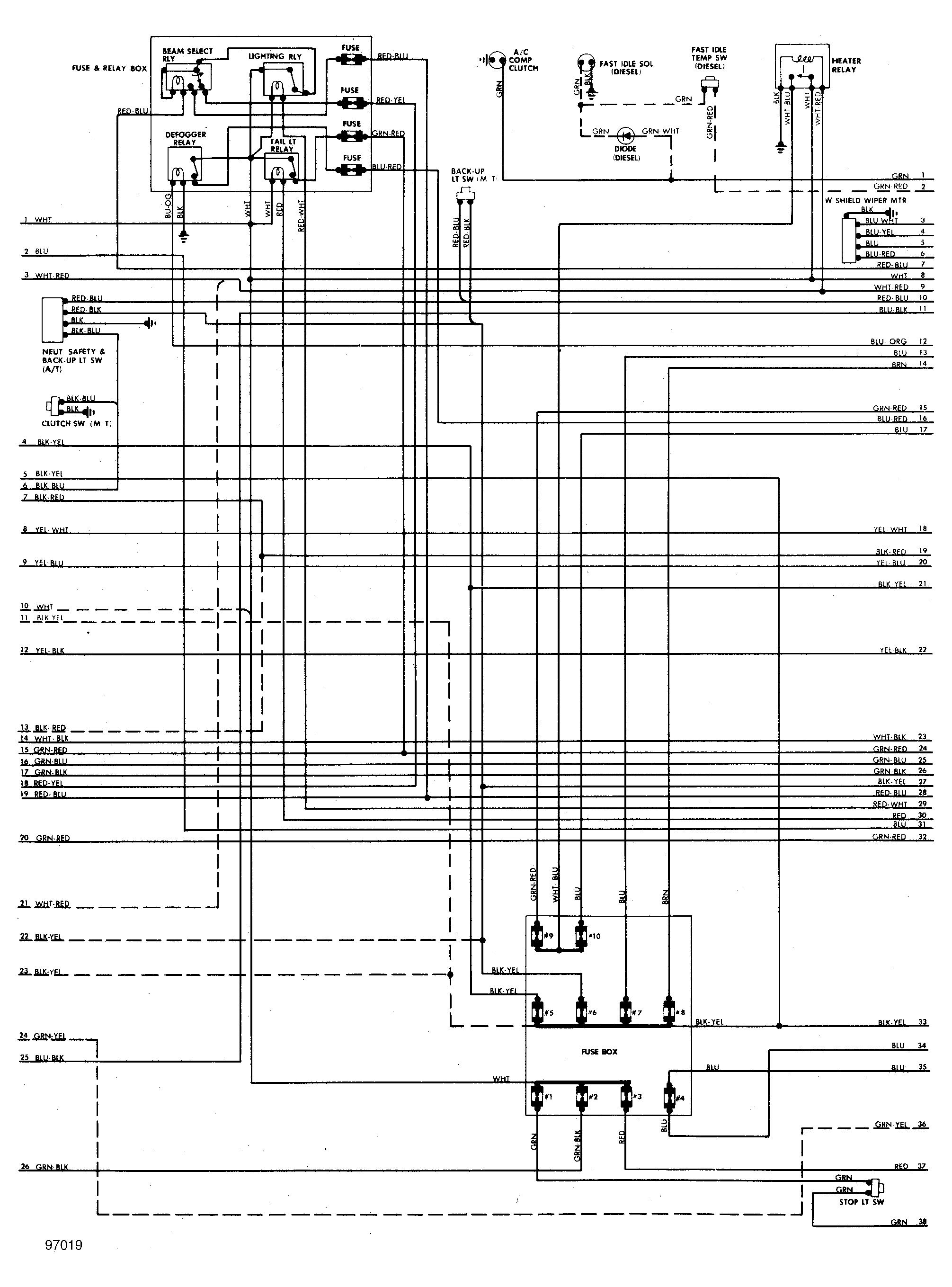

Fig 2: Fuse Block & Underdash
G97019
