Feedback Carburetor System
›
Testing
›
Air Switching Valve Check, Chart 4
Air Switching Valve Check, Chart 4

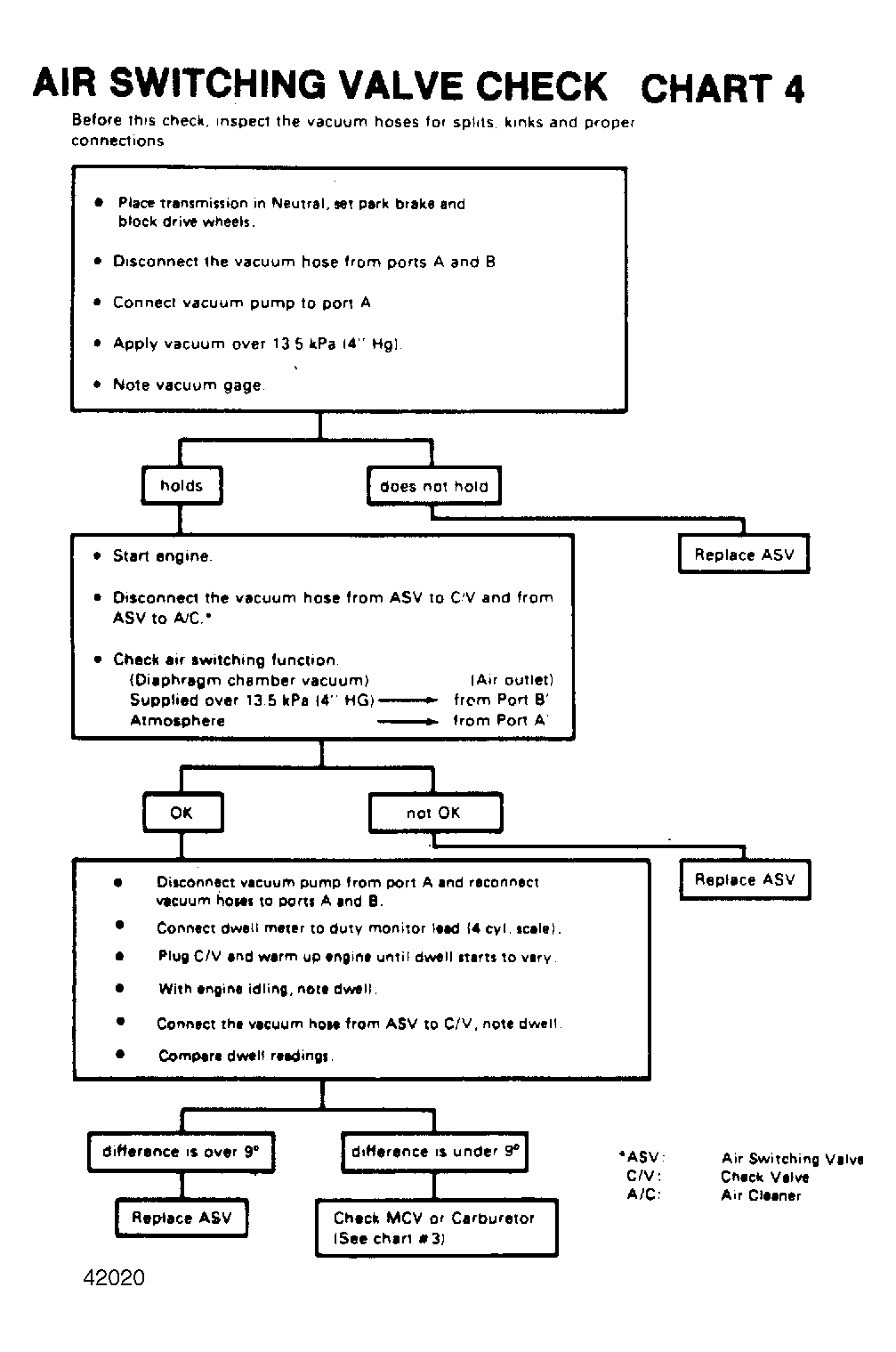

Fig 1: Air Switching Valve Check, Chart 4
