Wiring Diagrams

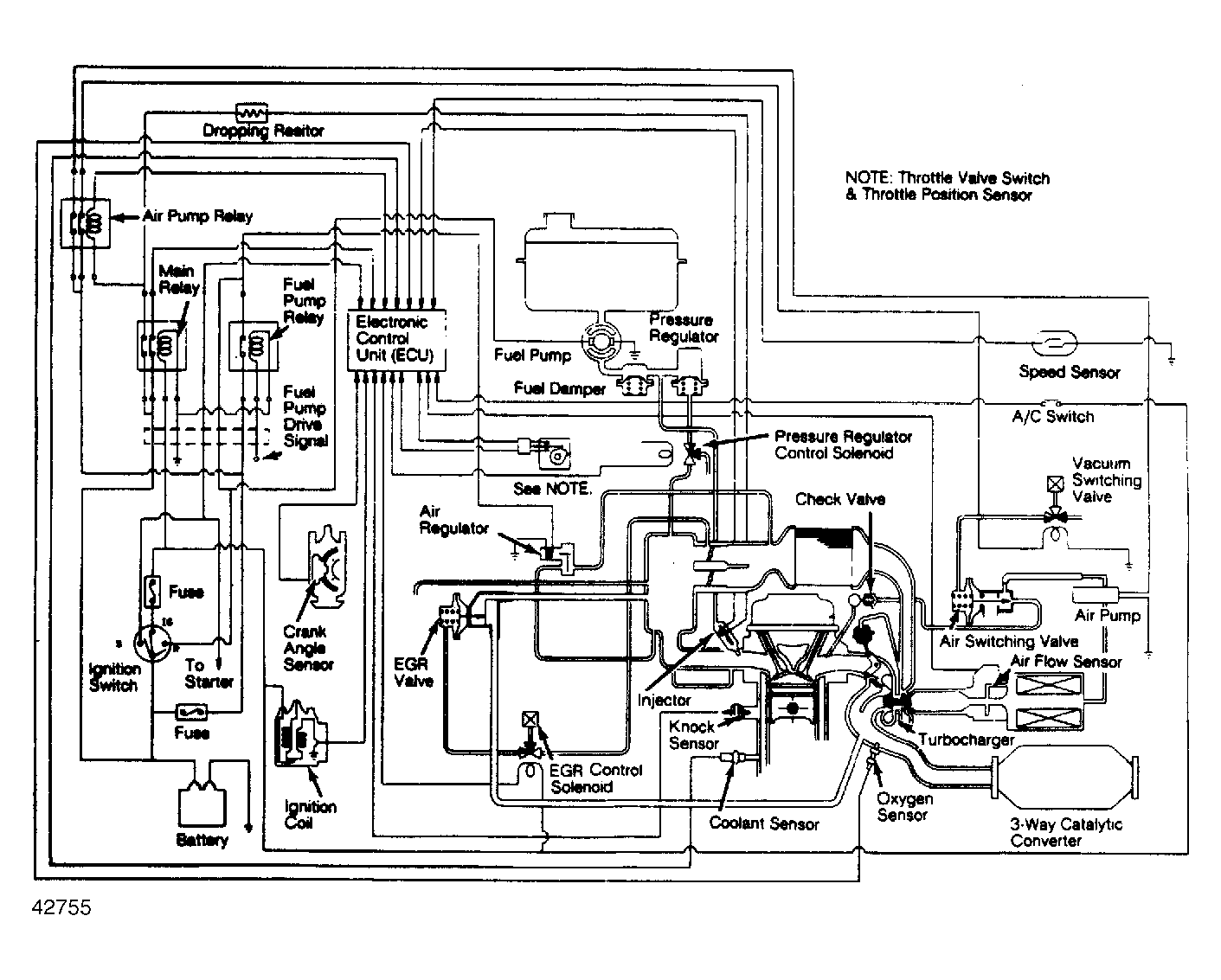

Fig 1: Impulse (I-TEC) Wiring Diagram (Turbo Models)

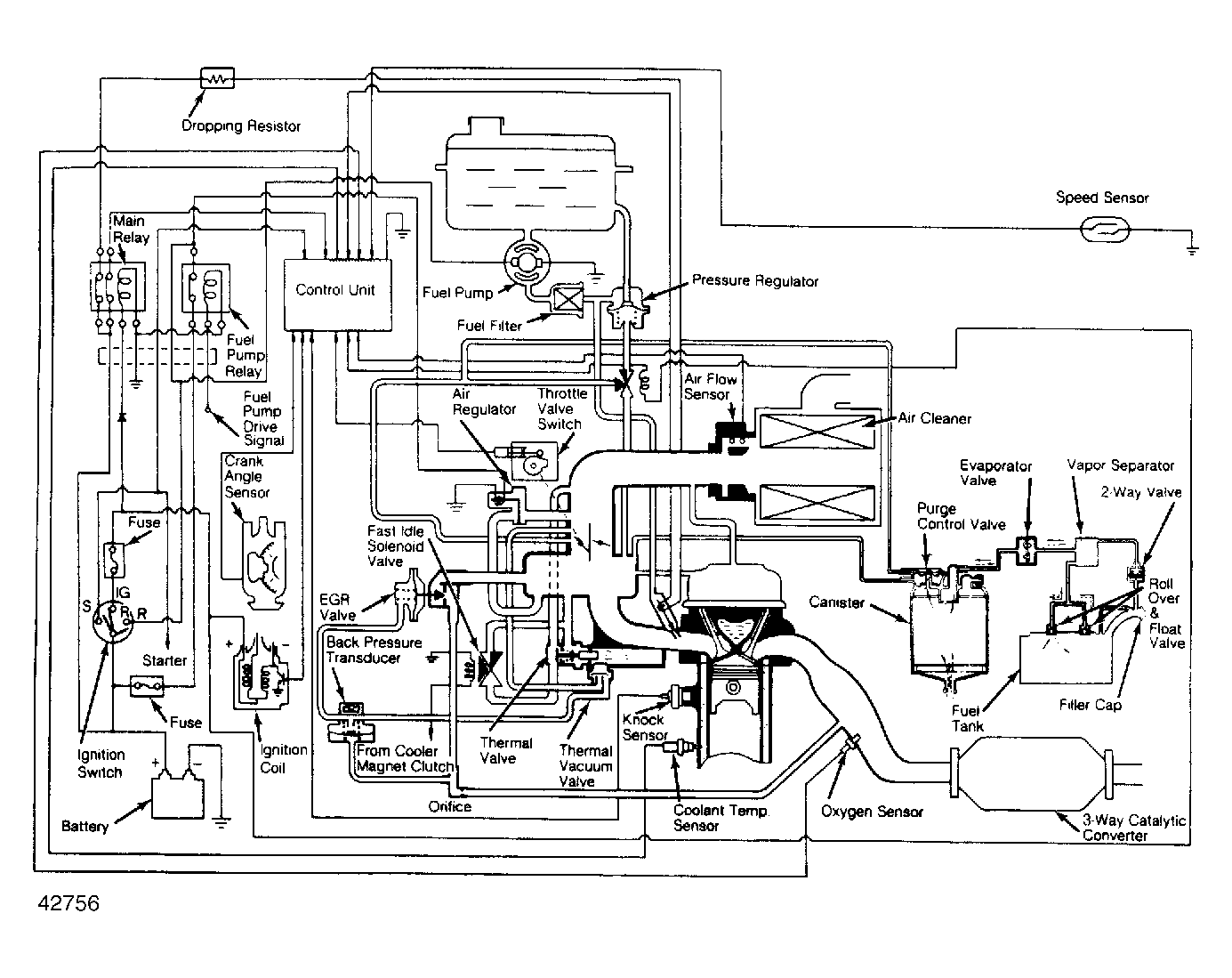

Fig 2: Impulse (I-TEC) Wiring Diagram (Exc. Turbo Models)
