"Check Engine" Light Inoperative, Chart 5
"Check Engine" Light Inoperative, Chart 5

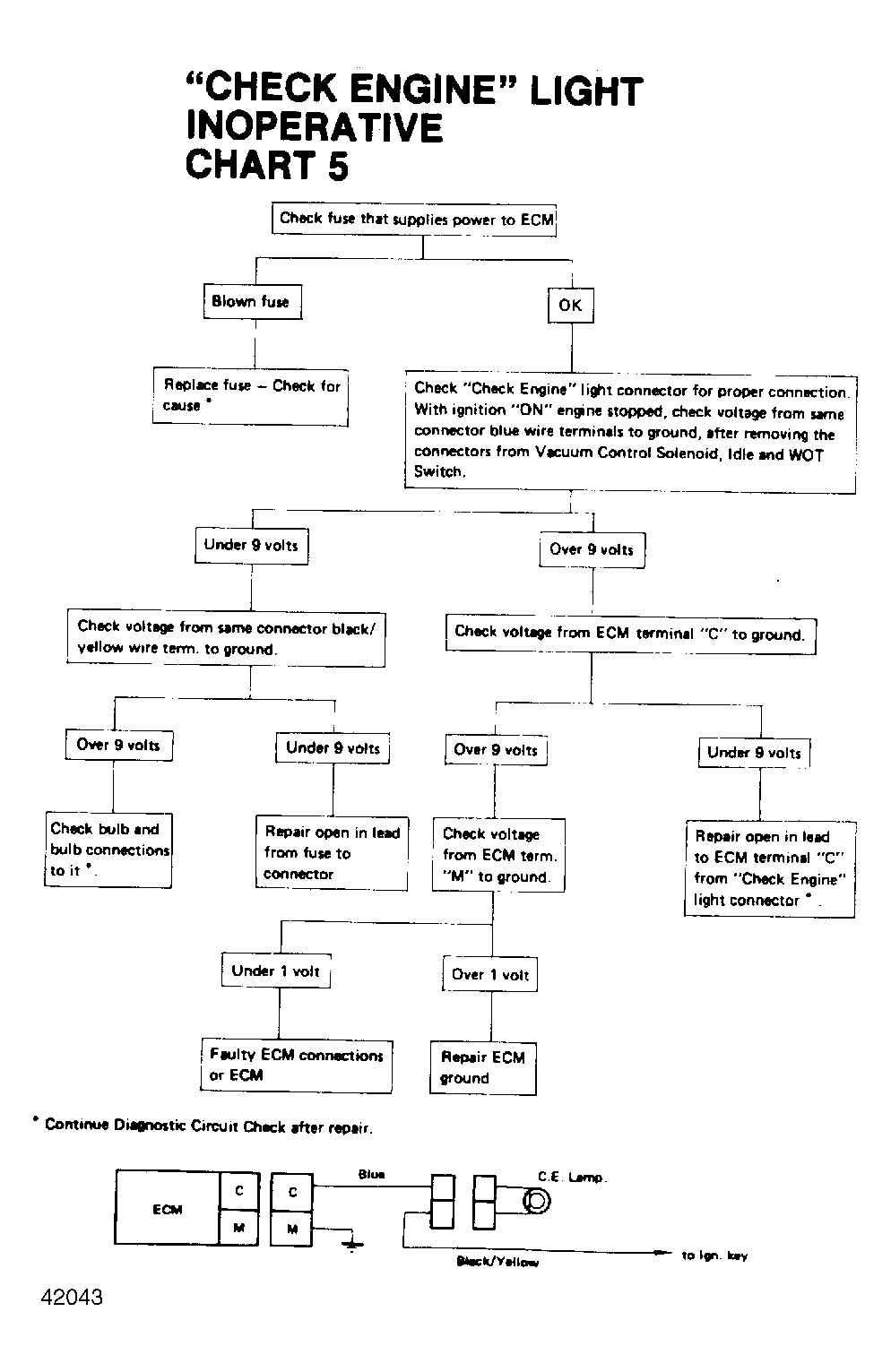

Fig 1: "Check Engine" Light Inoperative, Chart 5
