Open Coolant Sensor Circuit Code 15, Chart 11
Open Coolant Sensor Circuit Code 15, Chart 11

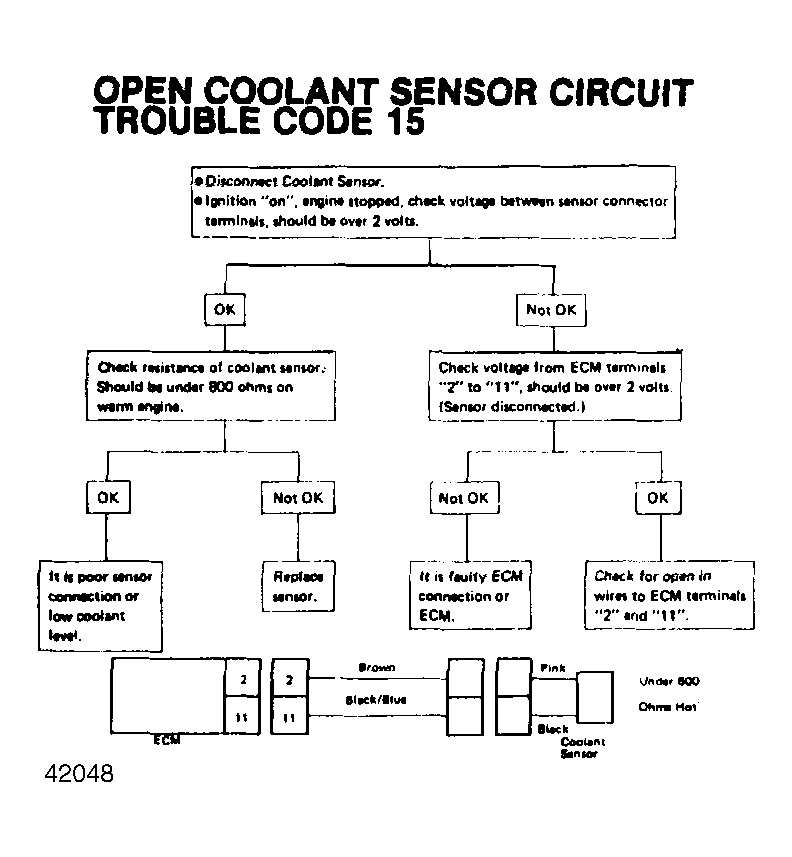

Fig 1: CODE 15, Chart 11 - Open Coolant Sensor Circuit
