Wiring Diagrams

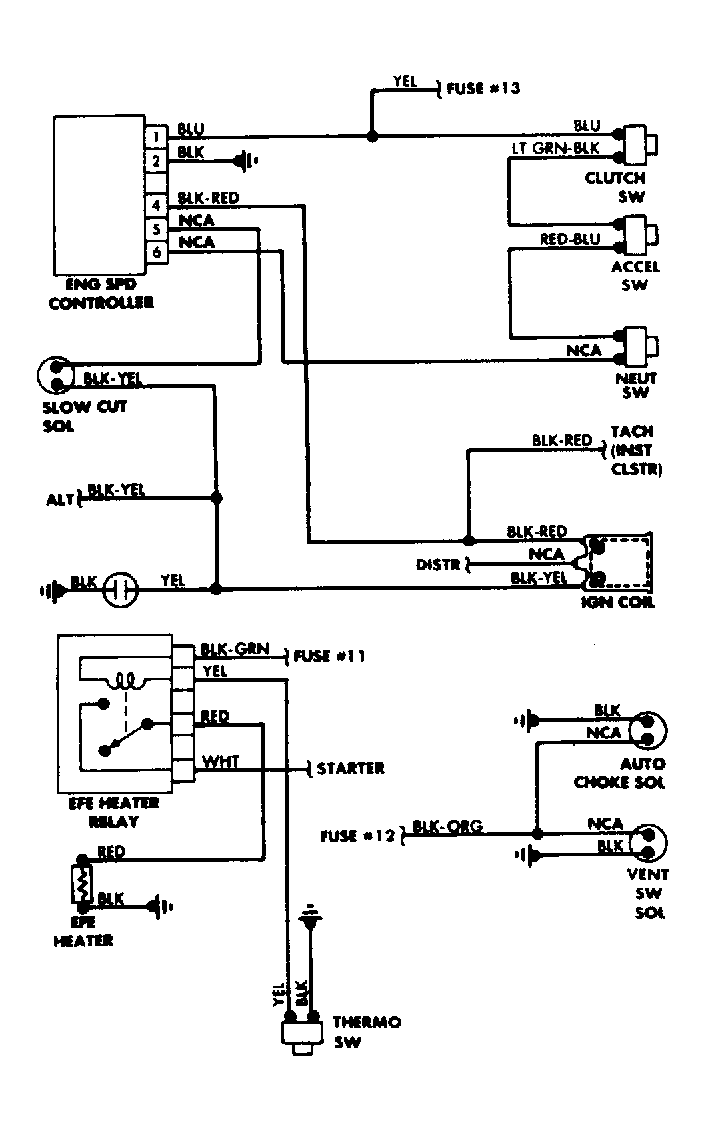

Fig 1: Isuzu Trooper II (Calif.) Wiring Diagram

G61553

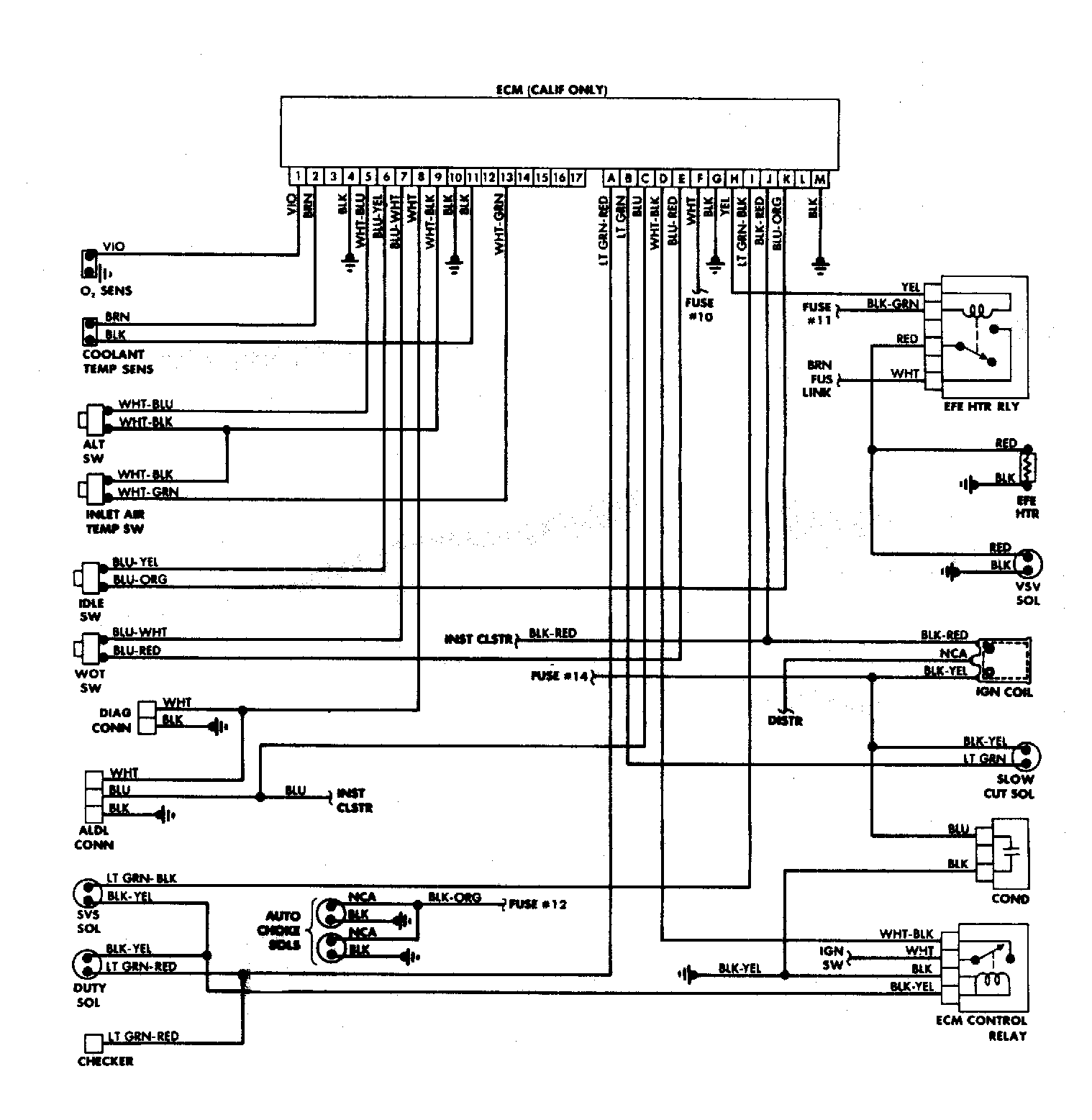

Fig 2: Isuzu Trooper II (Federal) Wiring Diagram

G61554

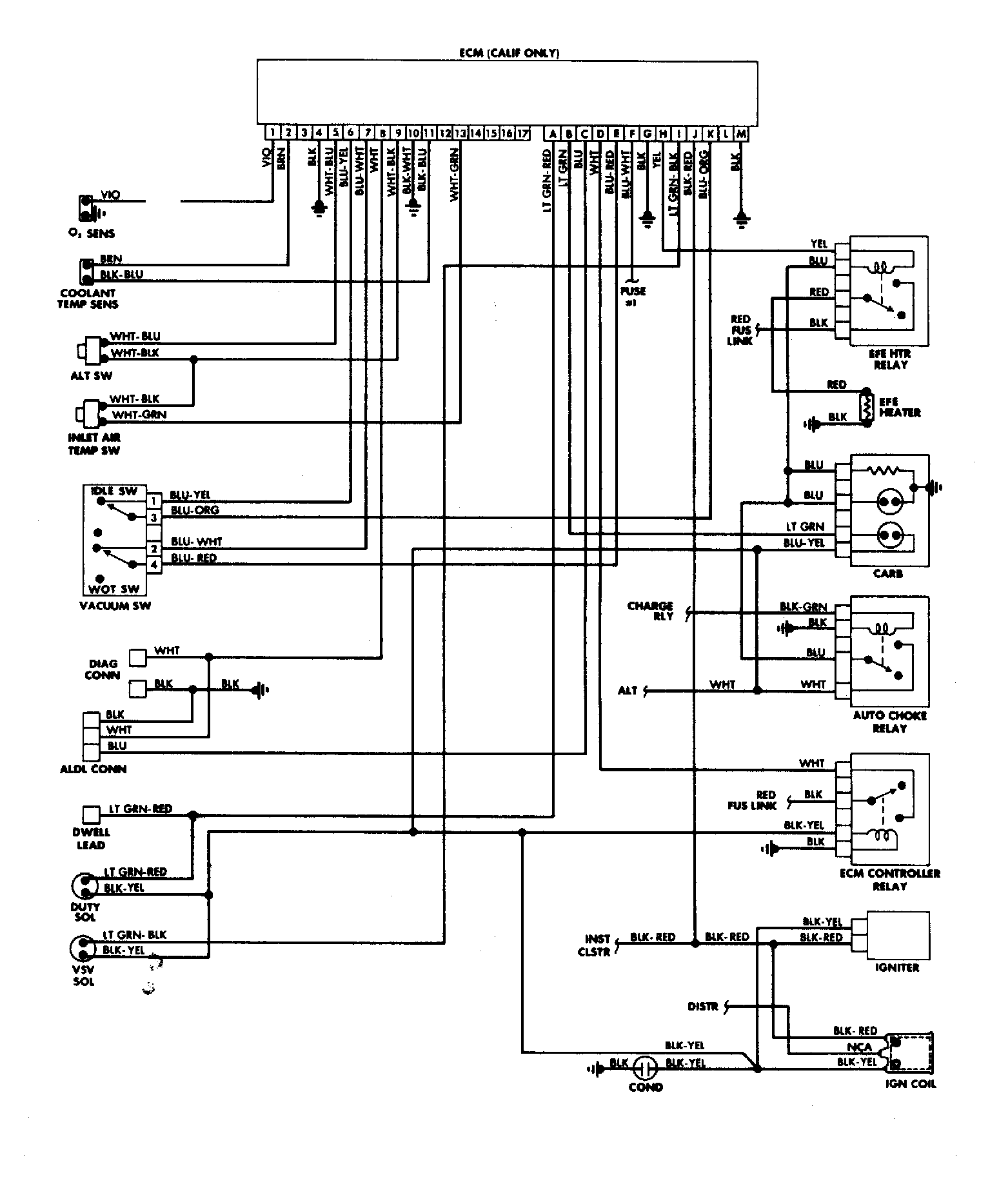

Fig 3: Isuzu P'UP (Calif. 4ZD1) Wiring Diagram

G61556

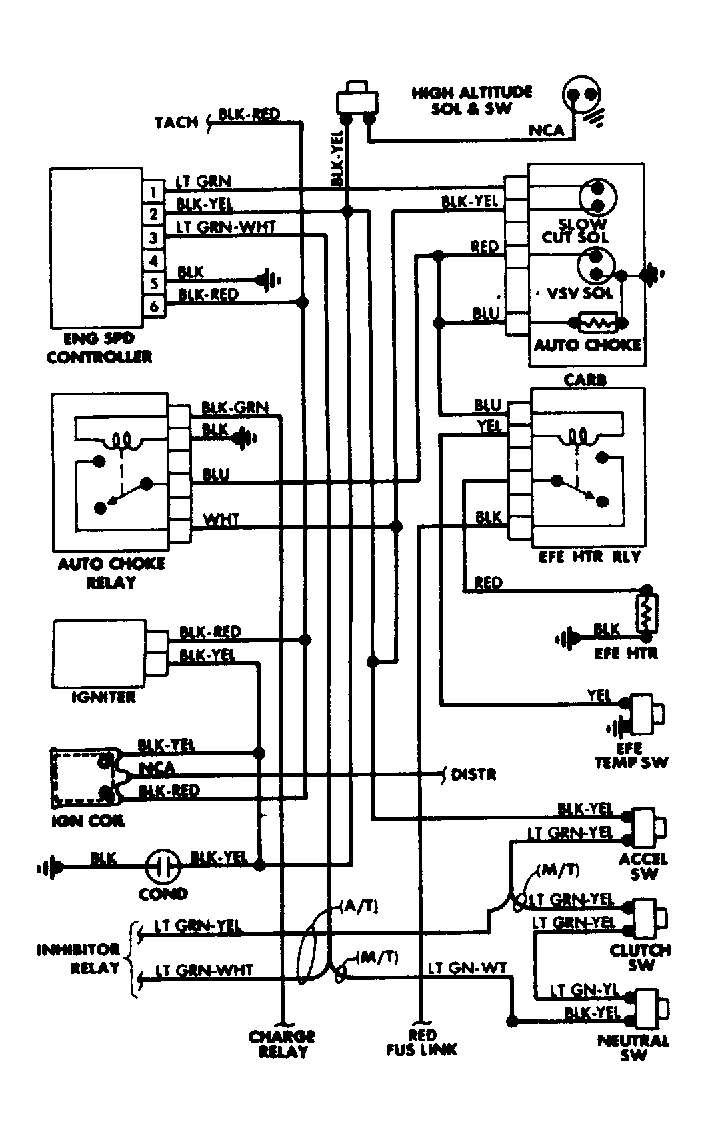

Fig 4: Isuzu P'UP (Federal 4ZD1) Wiring Diagram

G61555

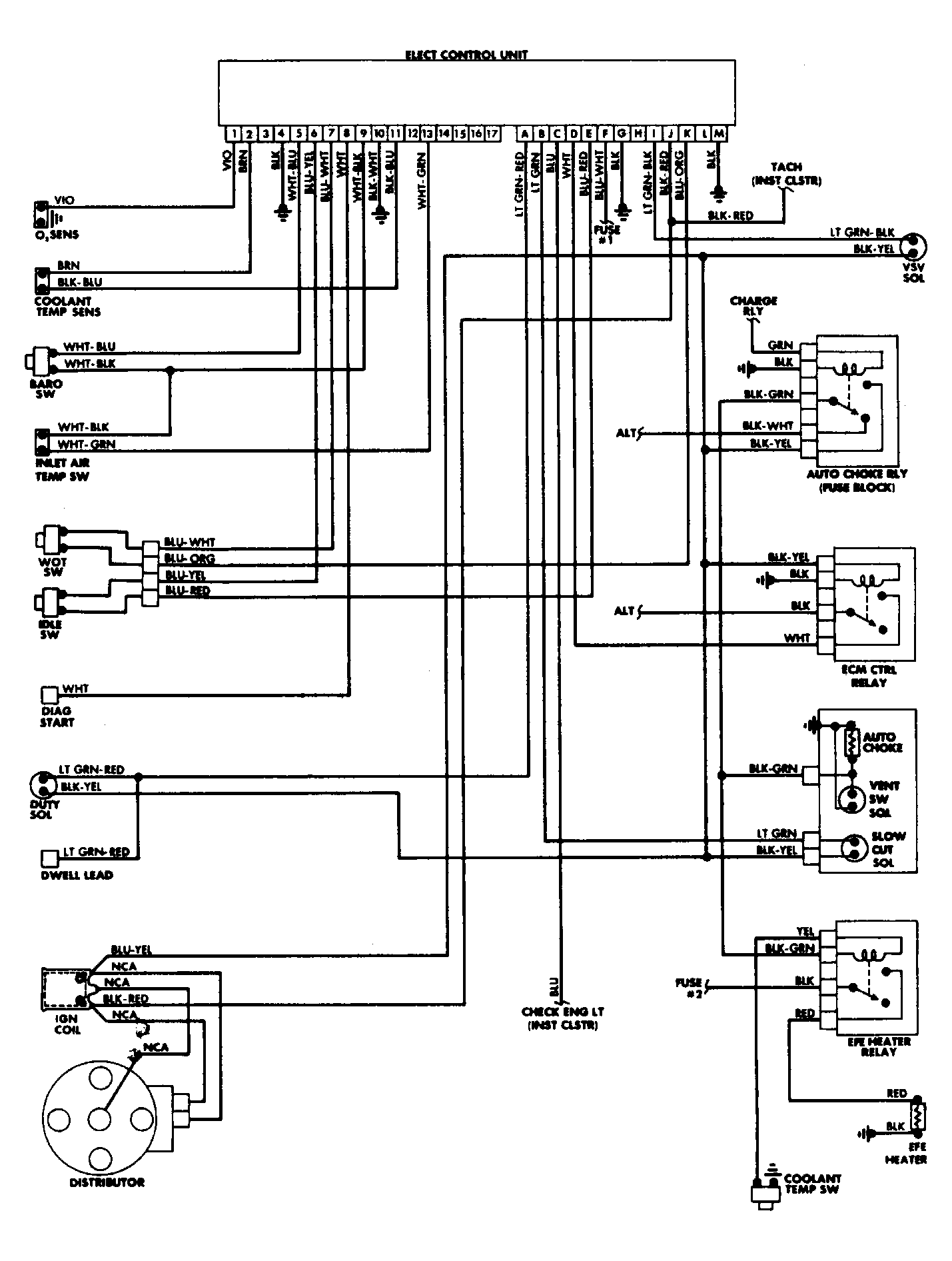

Fig 5: Isuzu P'UP (Calif. G200Z) Wiring Diagram

G61562

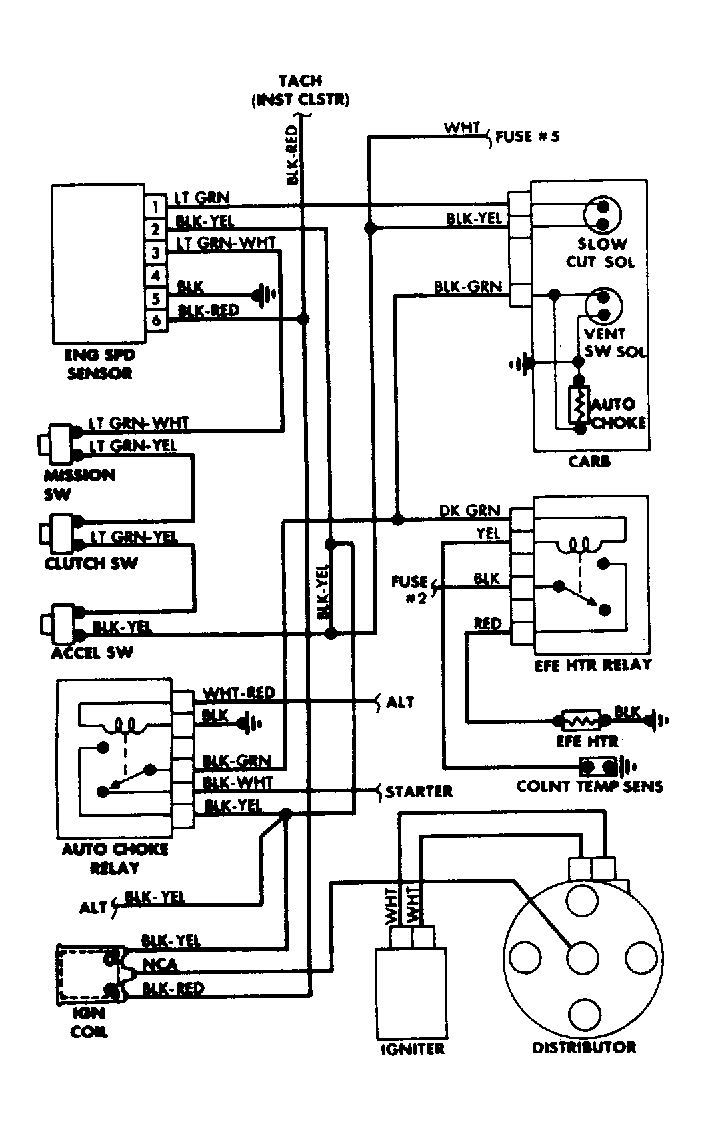

Fig 6: Isuzu P'UP (Federal G200Z) Wiring Diagram

G61557
