Ignition Coil

Turn off ignition. Unplug ignition coil connectors. Use ohmmeter to check ignition coil resistance. See Fig 1. Replace ignition coil, if defective.

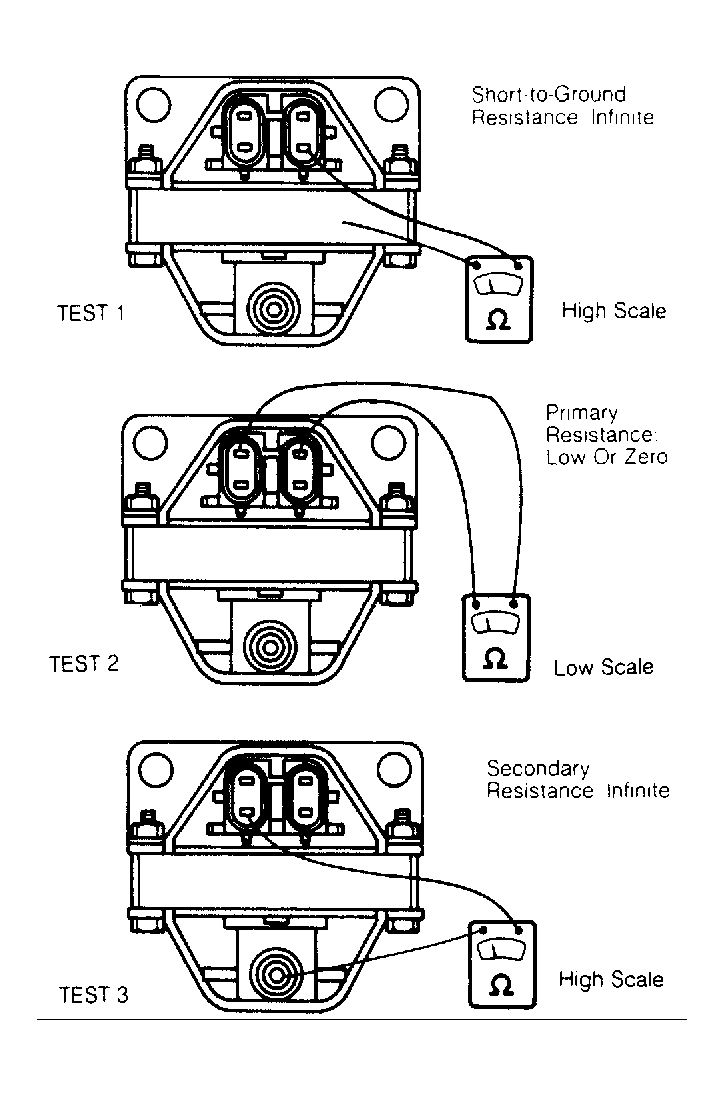

Fig 1: Testing Ignition Coil

Courtesy of ISUZU MOTOR CO.
