FixVault
Home
›
Isuzu
›
1988
›
I-Mark LS
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Feedback Carburetor System
›
Trouble Shooting
›
System Performance Check
›
Notes
System Performance Check: Notes

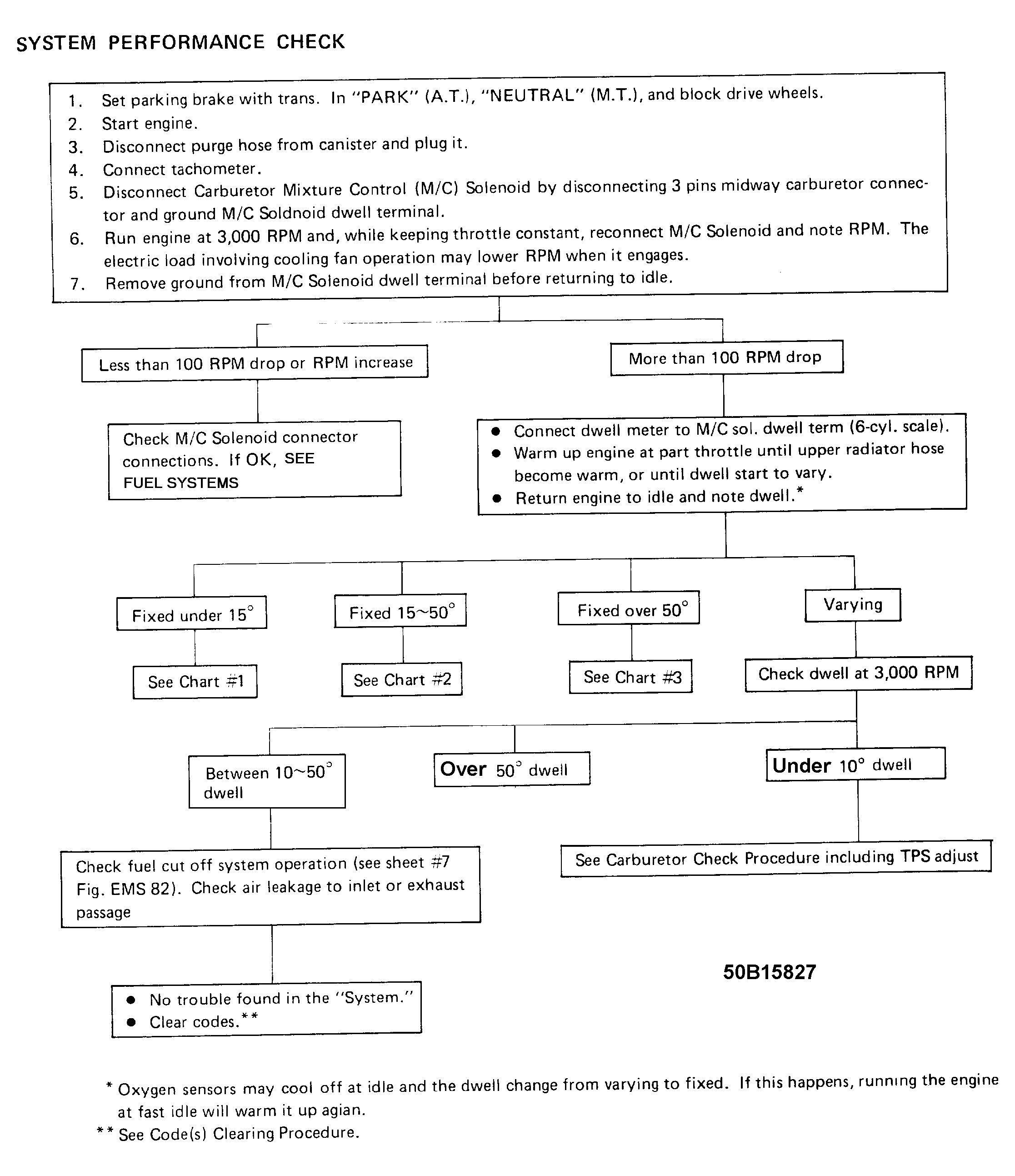

Fig 1: System Performance Check
