Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse/Relay Block | ||

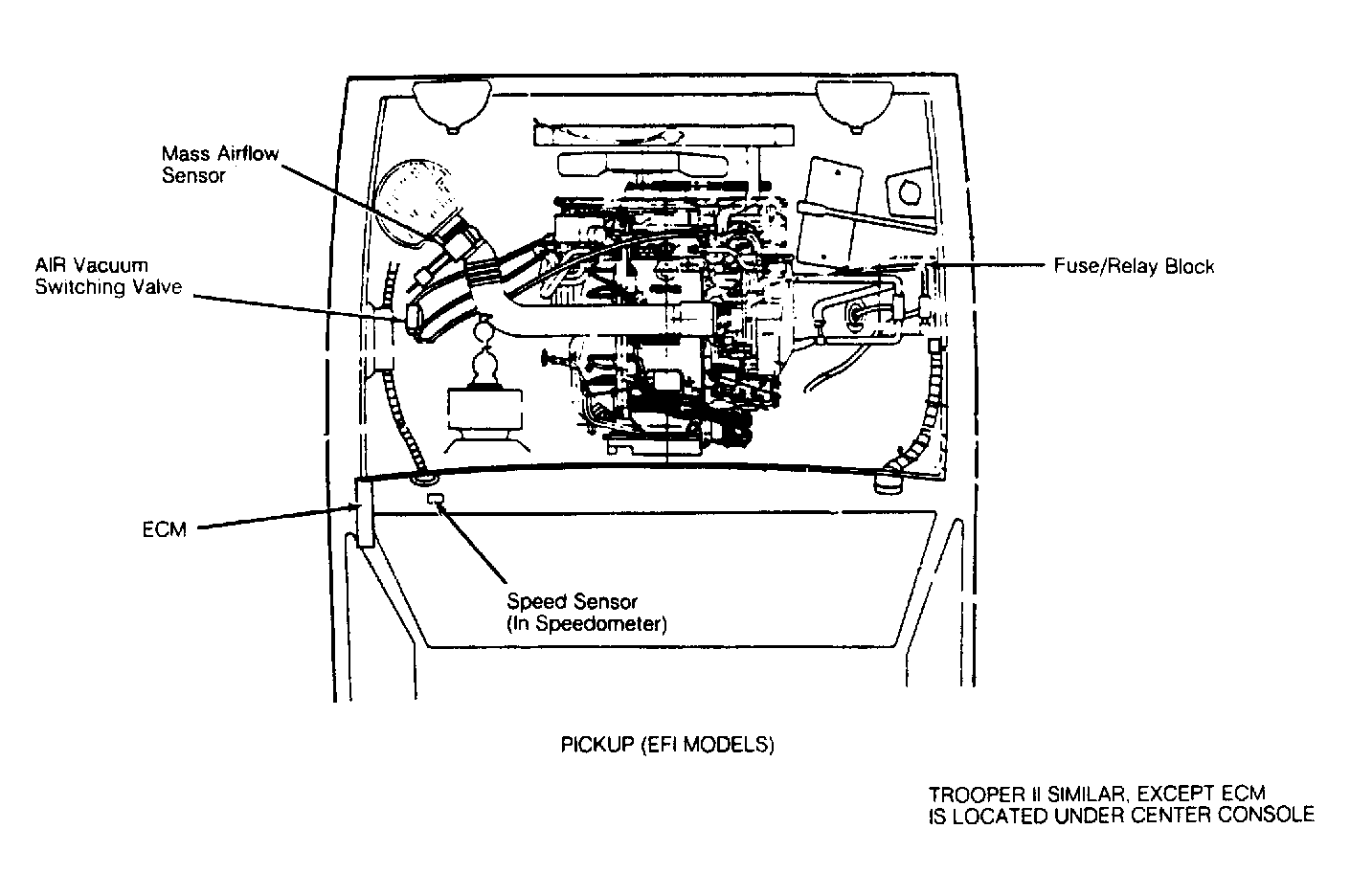

| EFI Models | On right fender panel. See Figure . | |

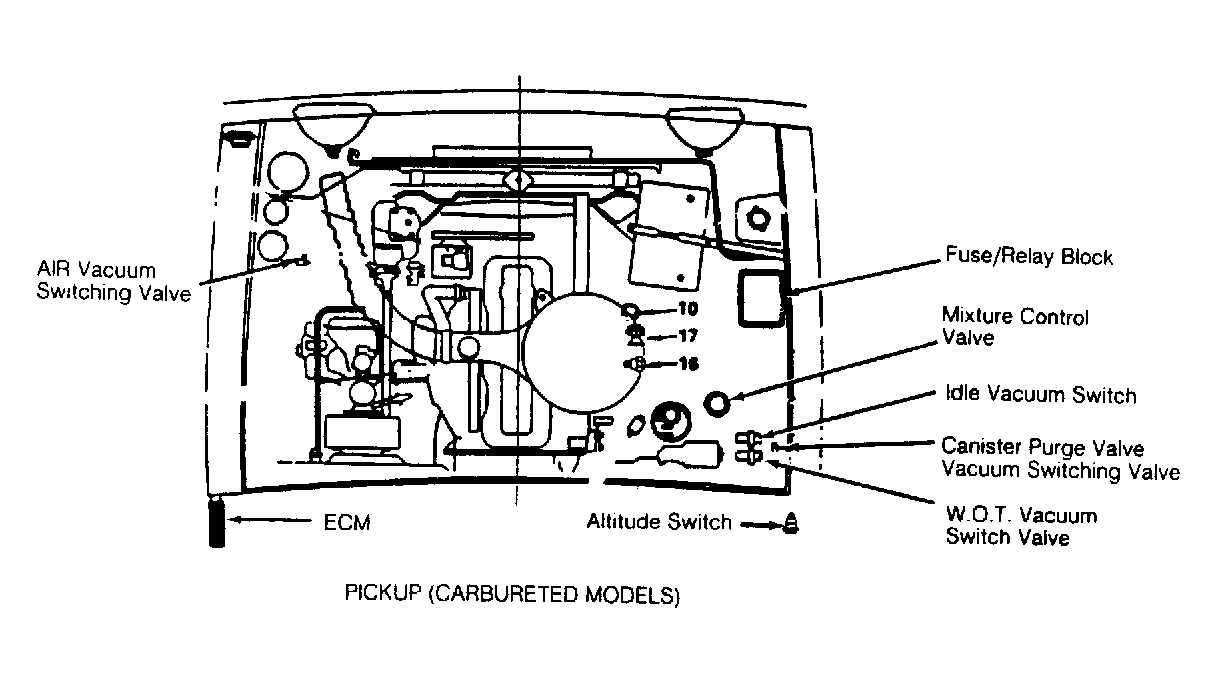

| Carbureted Models | On right fender panel. See Figure . | |
| Fusible Links | ||
| Pickup | On battery positive terminal. | |
| Trooper II | In front of battery, and on battery positive terminal. See Figure . | |
