Control Units

CONTROL UNITS LOCATION

Component		Location
Cruise Control Module (Trooper)		Right side of glove box.
Electronic Control Module (ECM)

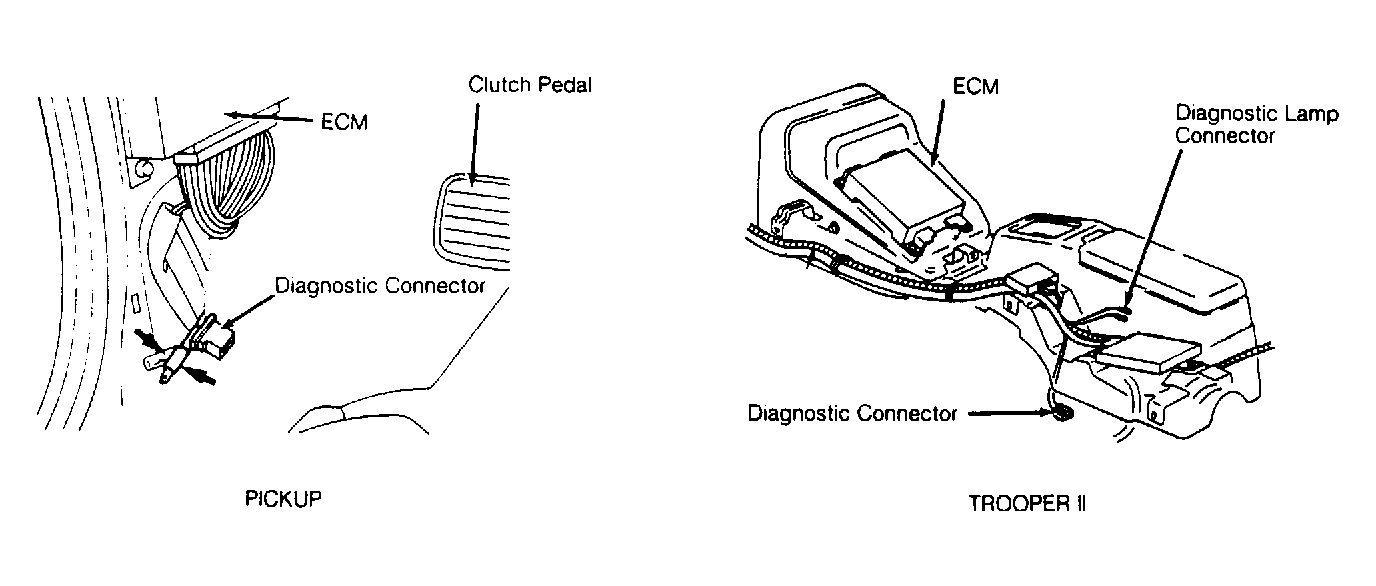

Pickup		Behind left kick panel. See Figure & Figure .
Trooper II		Under front end of center console. See Figure , Figure & Figure .
