Wiring Diagrams

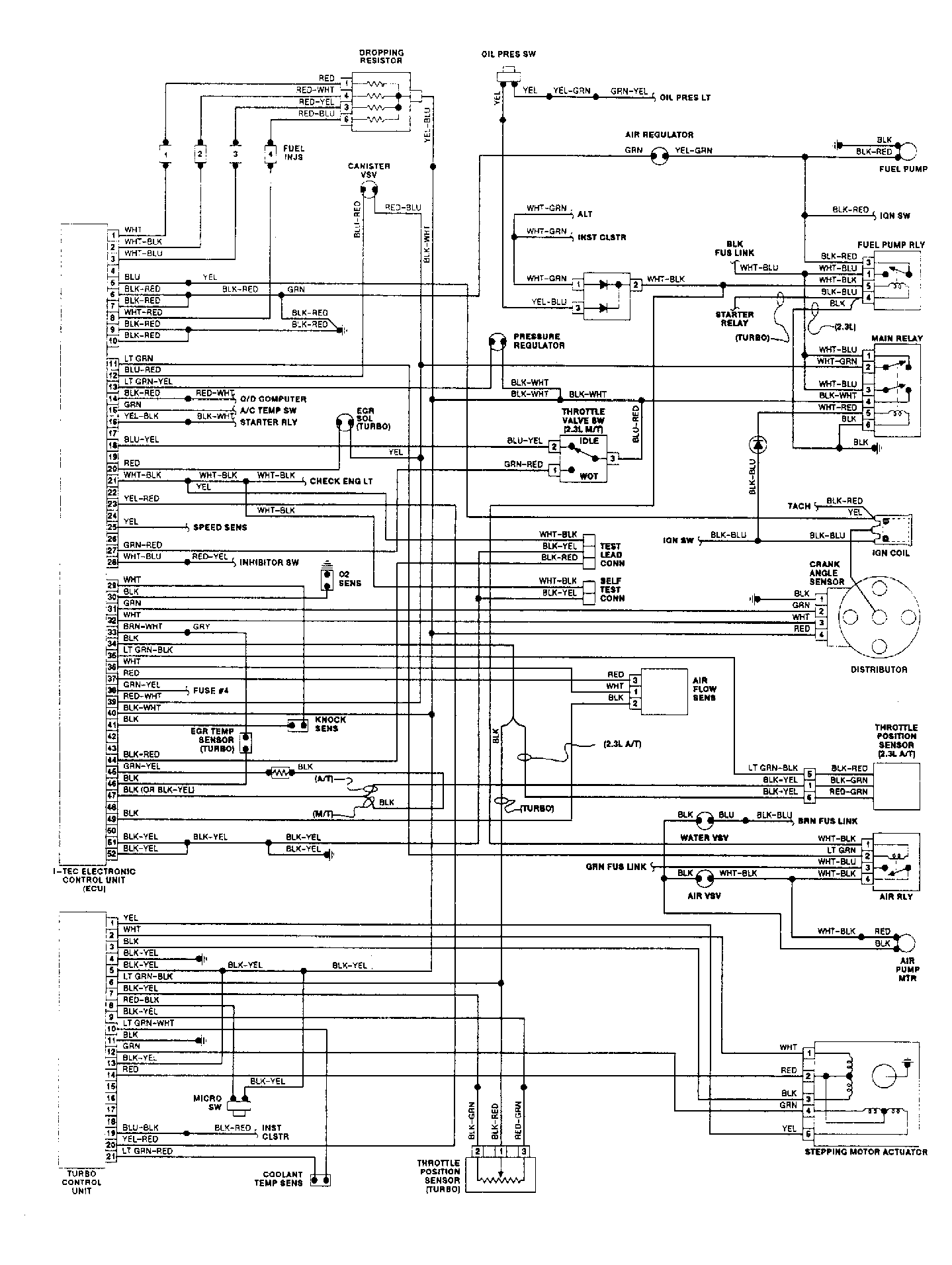

Fig 1: Impulse Wiring Diagram

G94711

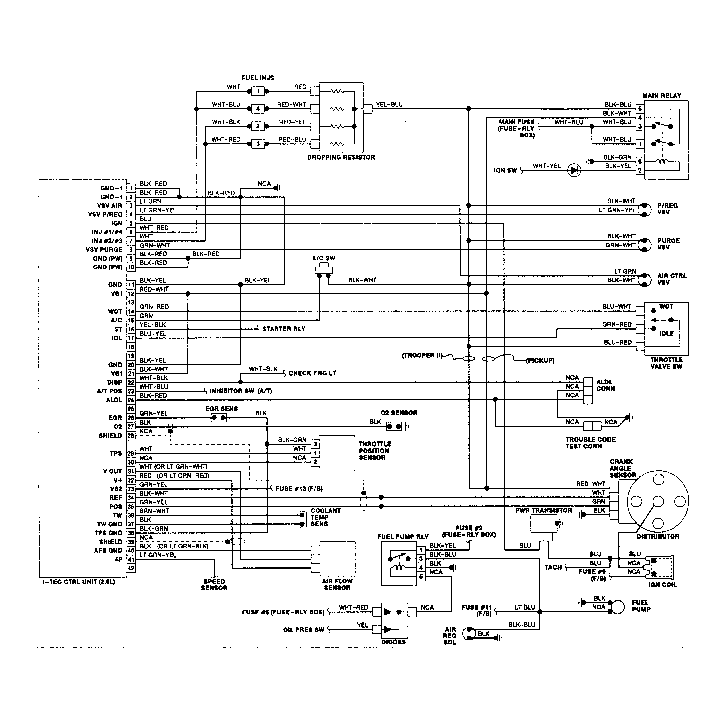

Fig 2: Pickup 2.6L & Trooper II Wiring Diagram

G94712
