Idle Air Control (IAC) Valve

Use Fig 1 to test I-Mark Idle Air Control (IAC) Valve.

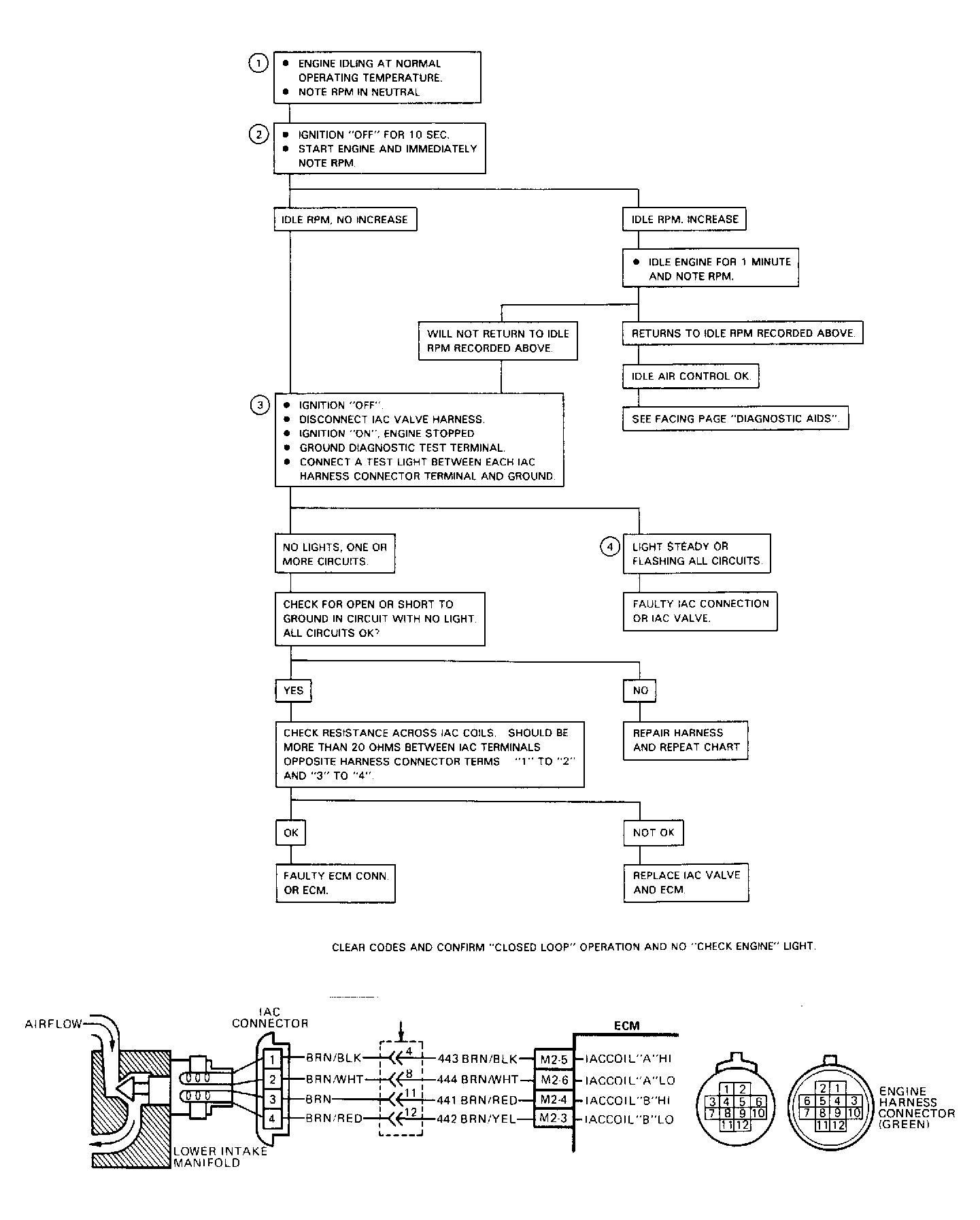

Fig 1: Testing I-Mark Idle Air Control (IAC) Valve (Chart C-2B)
G122375Courtesy of ISUZU MOTOR CO.
