Tests W/Codes - CARBURETED
›
Trouble Code Charts
›
Code 12 - Ignition Reference Signal
Code 12 - Ignition Reference Signal

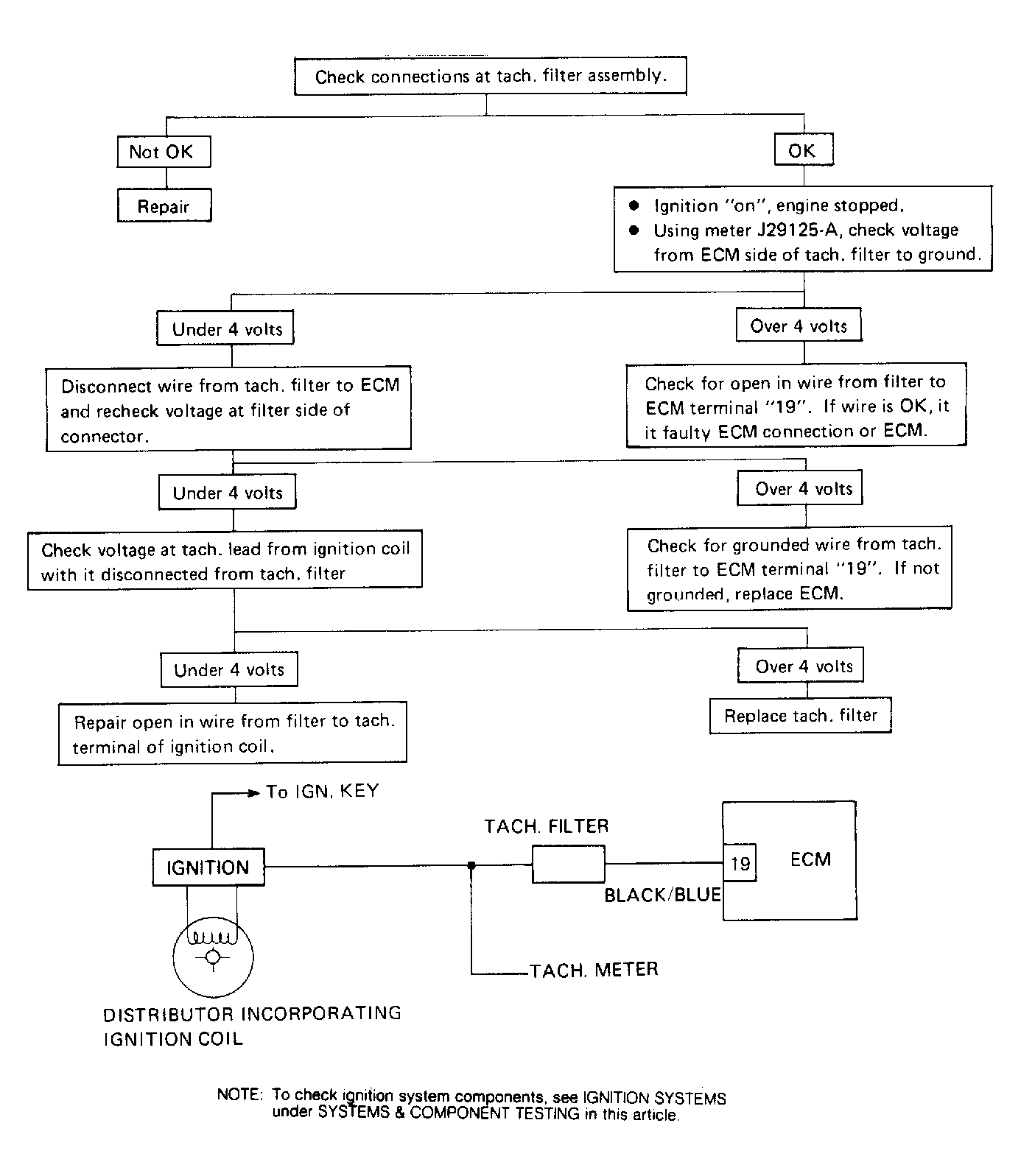

Fig 1: Flow Chart - Code 12, Ignition Reference Signal
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
