Code 15 - Open Coolant Temperature Sensor (Cts) Signal
Code 15 - Open Coolant Temperature Sensor (Cts) Signal

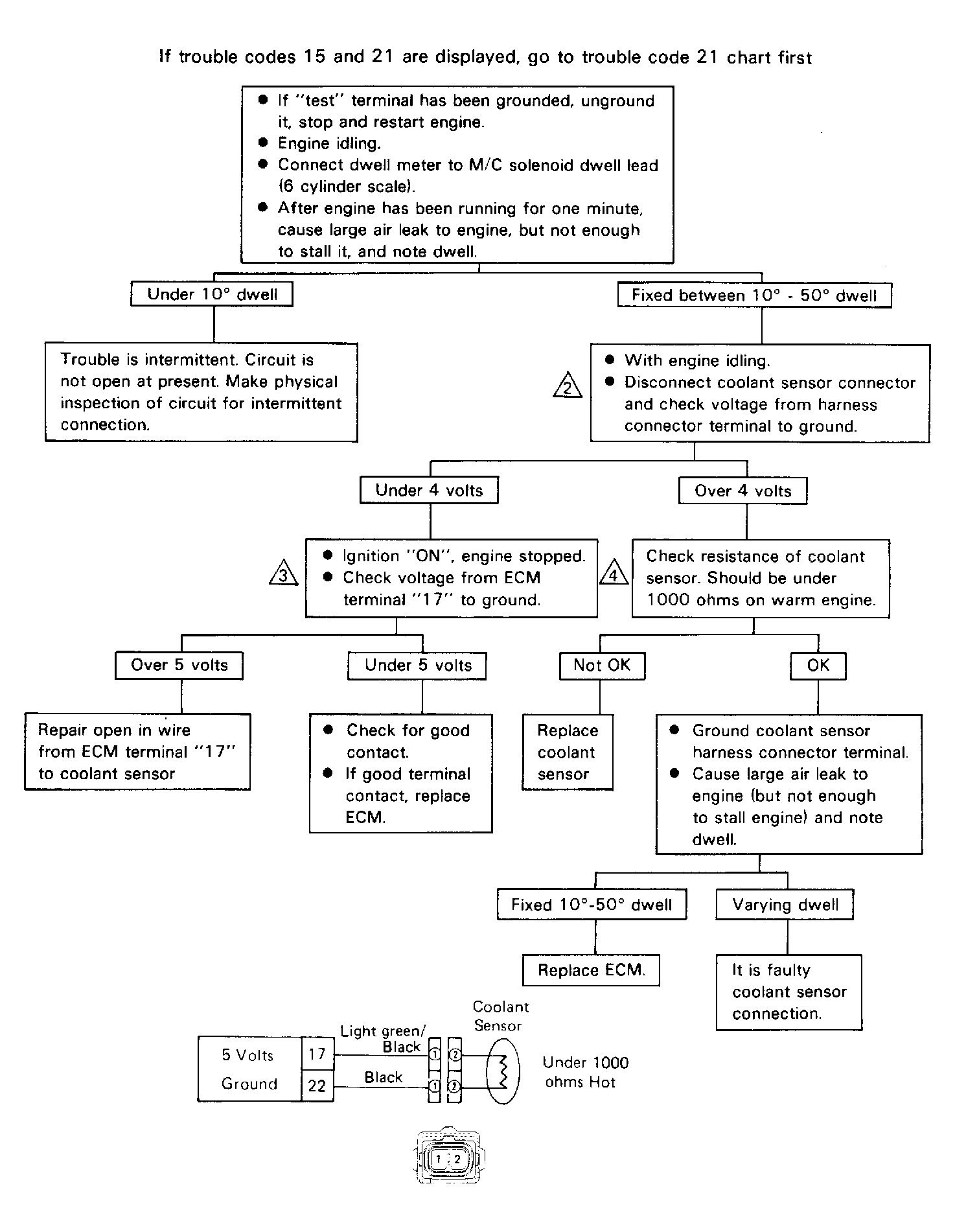

Fig 1: Flow Chart - Code 15, Open Coolant Temperature Sensor Signal
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
