Code 22 - Fuel Cut Relay Circuit

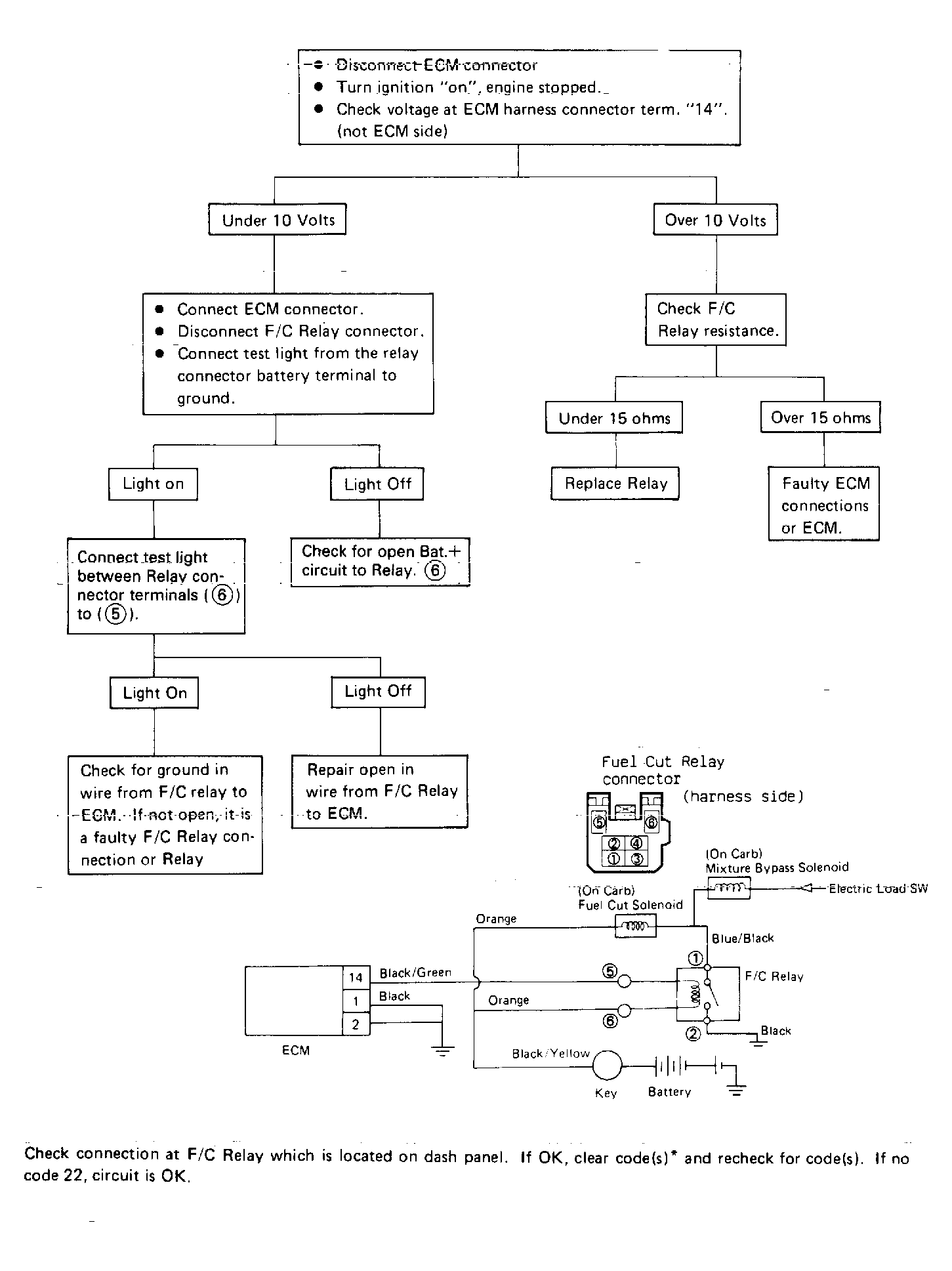

Fig 1: Flow Chart - Code 22, Fuel-Cut Relay Circuit
G122158Courtesy of ISUZU MOTOR CO.
