Closed Loop Mode

A calculated duty cycle is generated based on oxygen sensor and other sensor inputs to ECM.

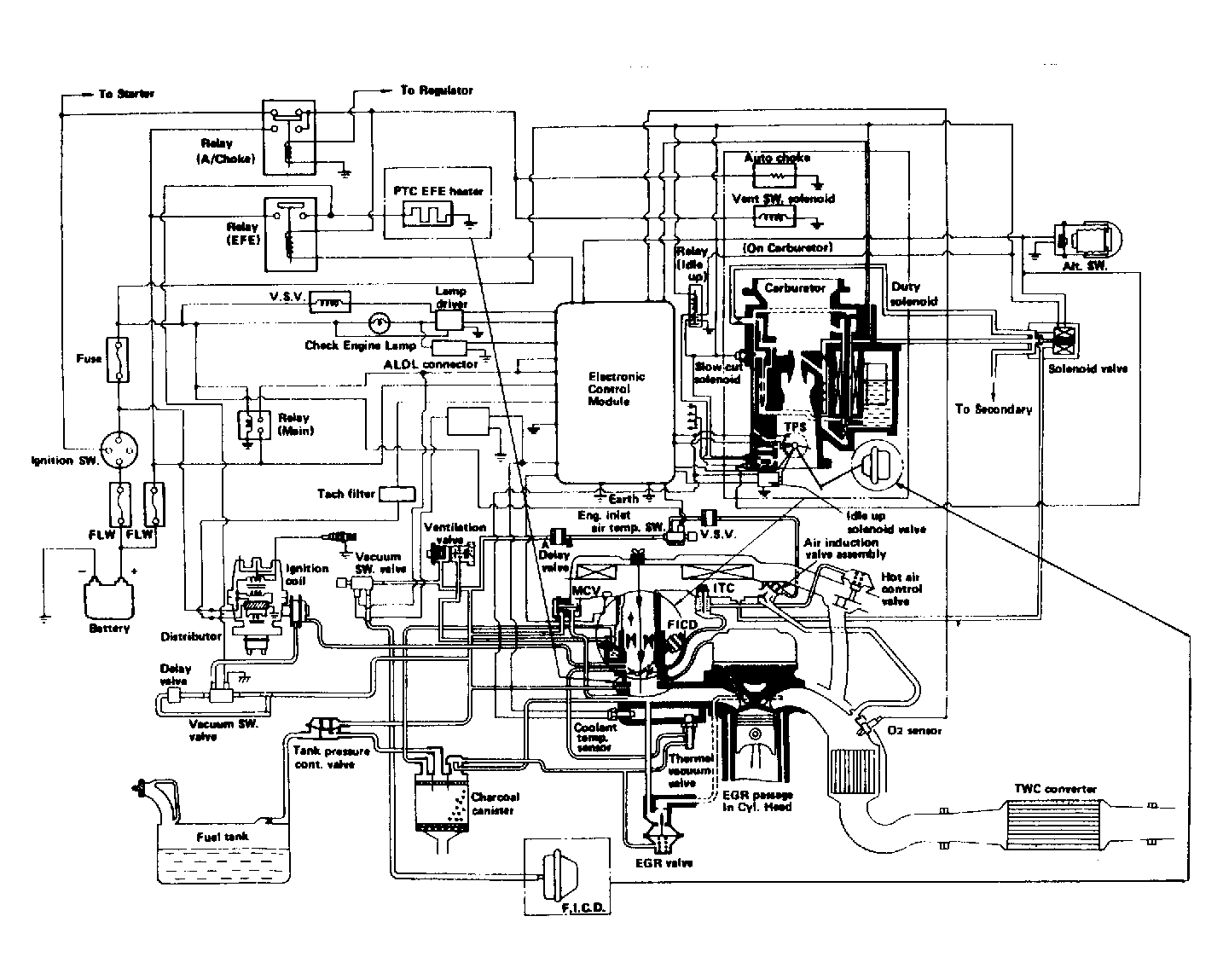

Fig 1: I-Mark Emissions Control System (Auto. Trans.)

Courtesy of ISUZU MOTOR CO.

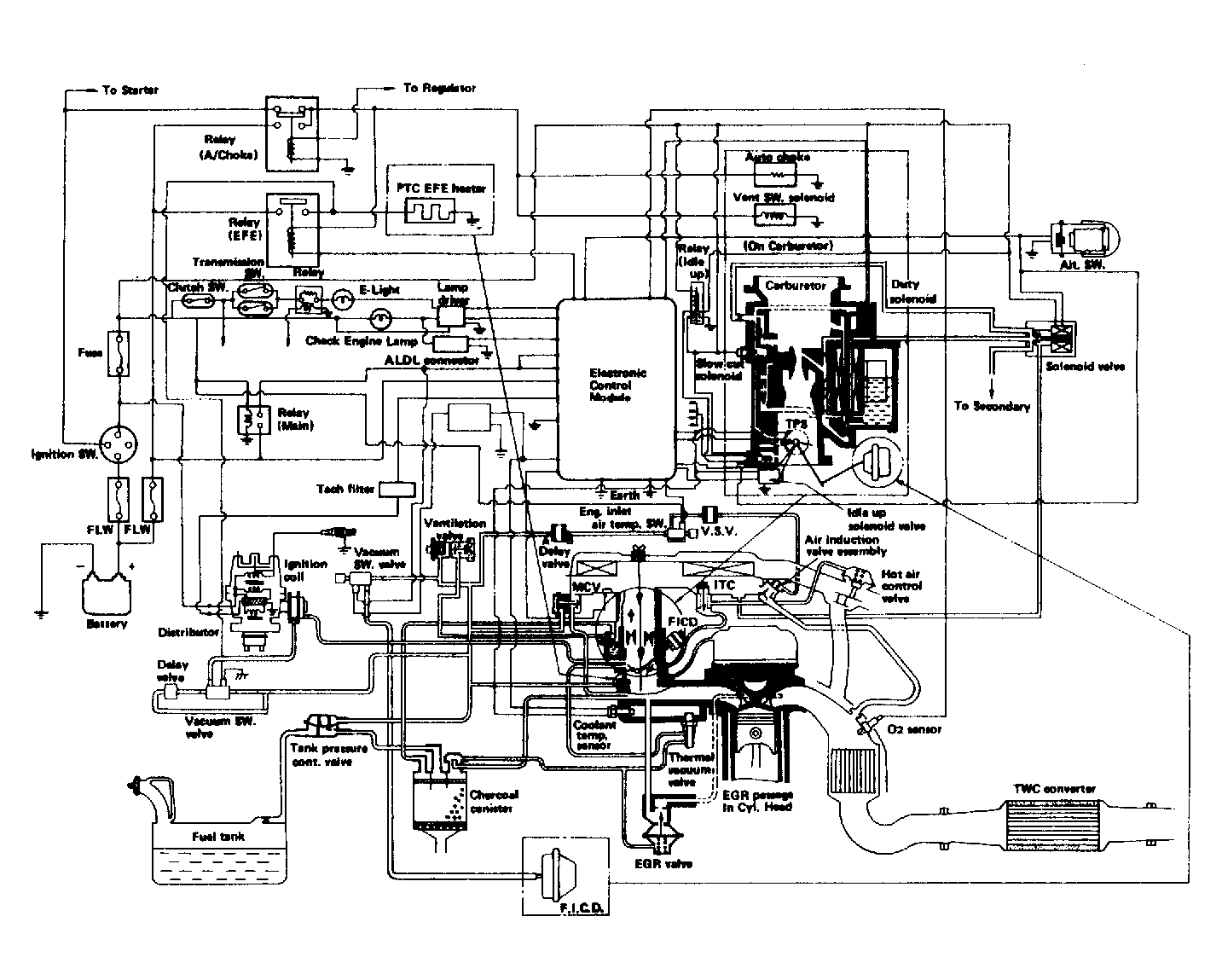

Fig 2: I-Mark Emission Control System (Man. Trans.)

Courtesy of ISUZU MOTOR CO.
