Diagnostic Circuit Check: Notes

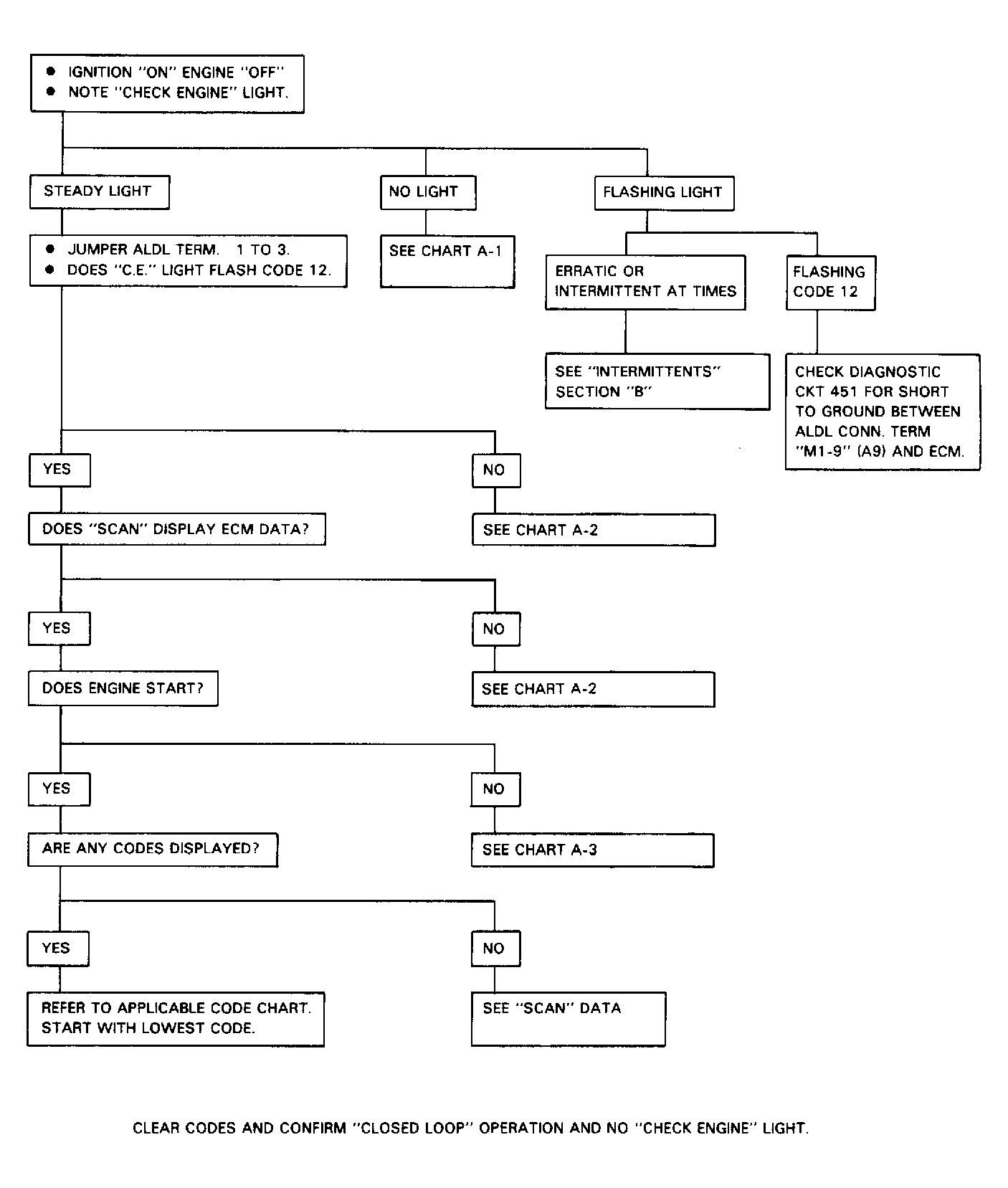

Fig 1: Flow Chart - Diagnostic Circuit Check

G122190

Courtesy of ISUZU MOTOR CO.

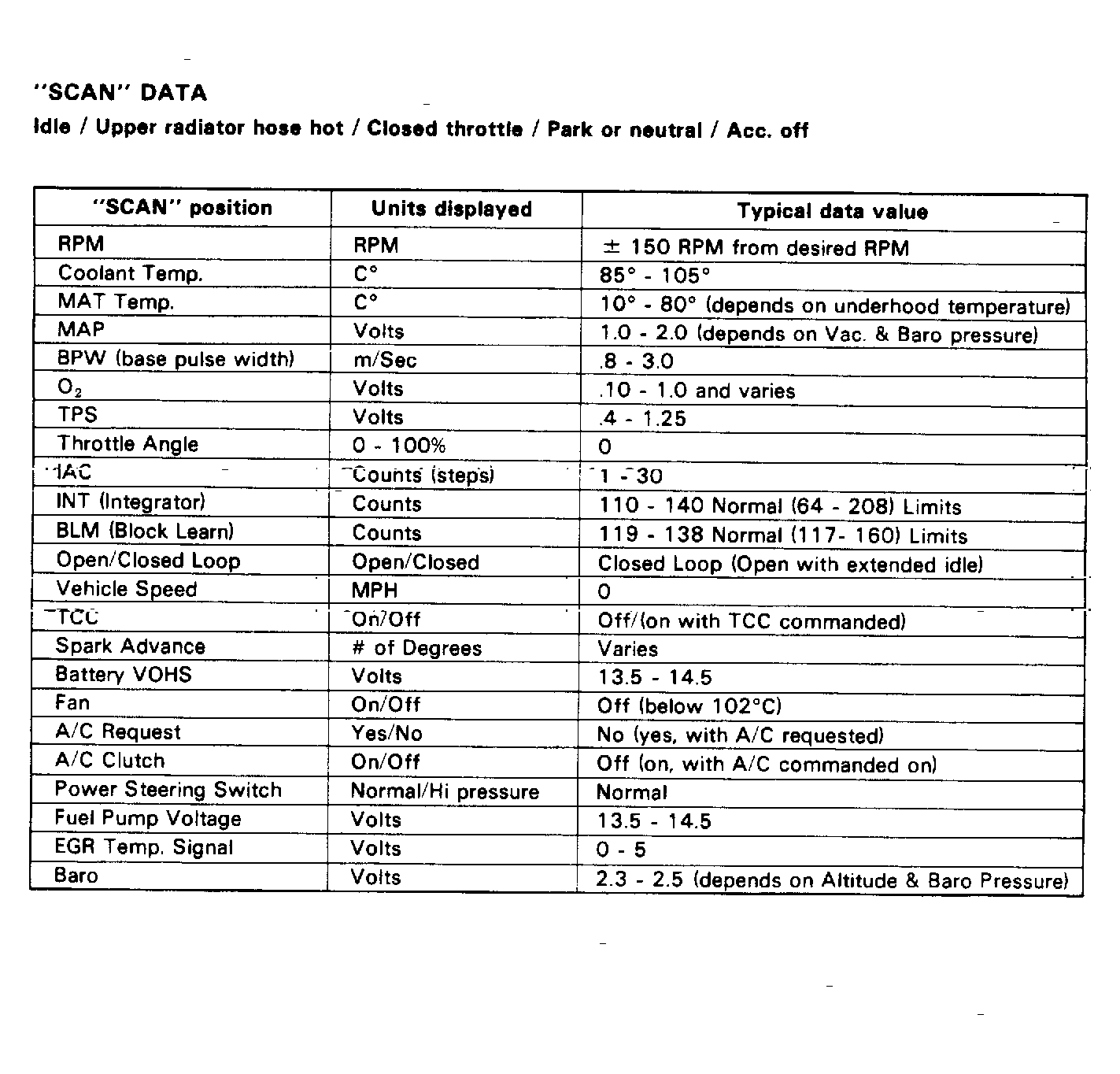

Fig 2: "SCAN" Data Table

G122188

Courtesy of ISUZU MOTOR CO.

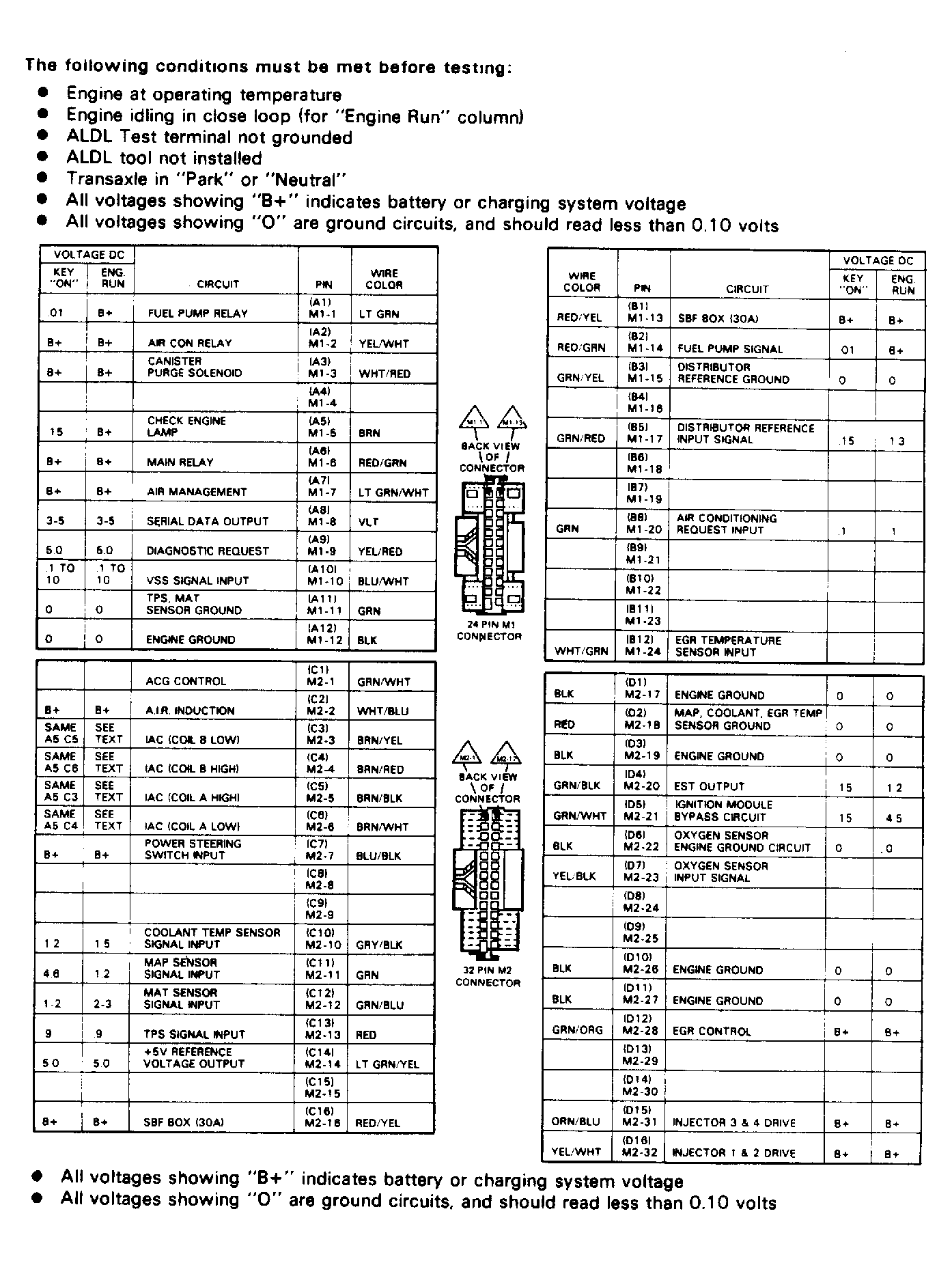

Fig 3: ECU Terminal Identification

G122189

Courtesy of ISUZU MOTOR CO.
