Diagnostic Circuit Check
›
Code 22 - Starter Signal
Code 22 - Starter Signal

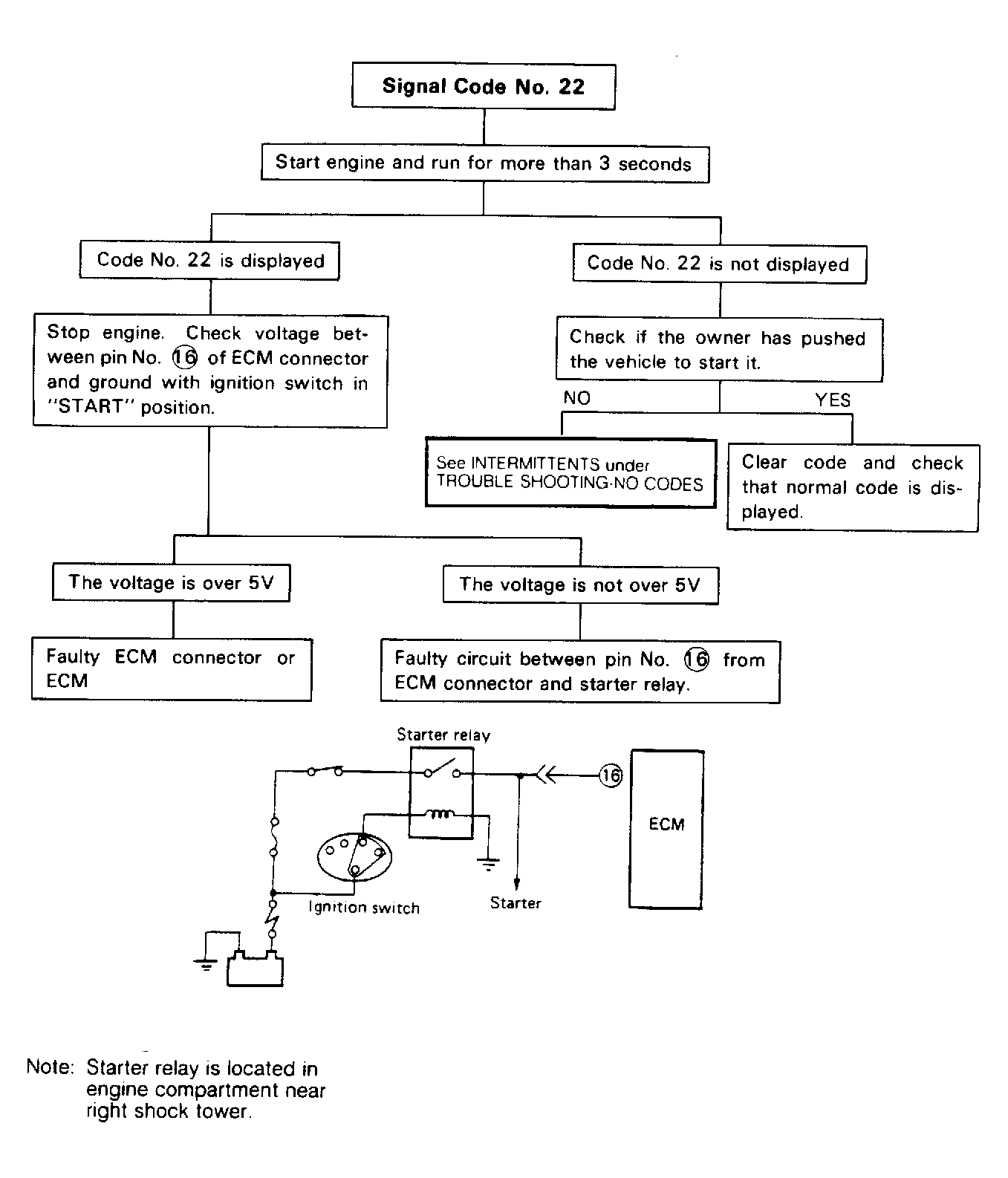

Fig 1: Flow Chart - Code 22, Starter Signal
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
