Code 32 - EGR System Malfunction

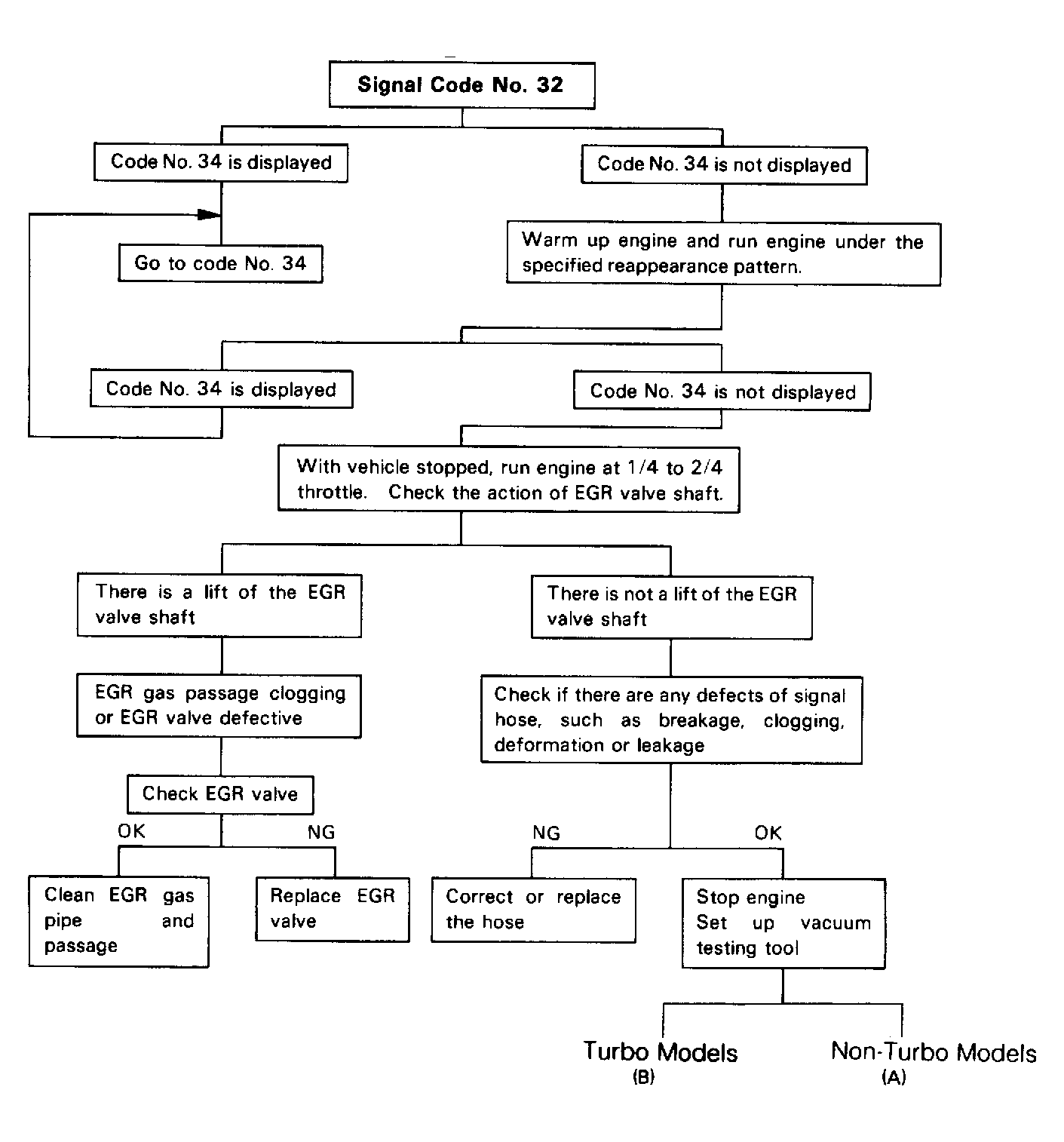

Fig 1: Flow Chart - (1 of 2) Code 32, EGR System Malfunction

Courtesy of ISUZU MOTOR CO.

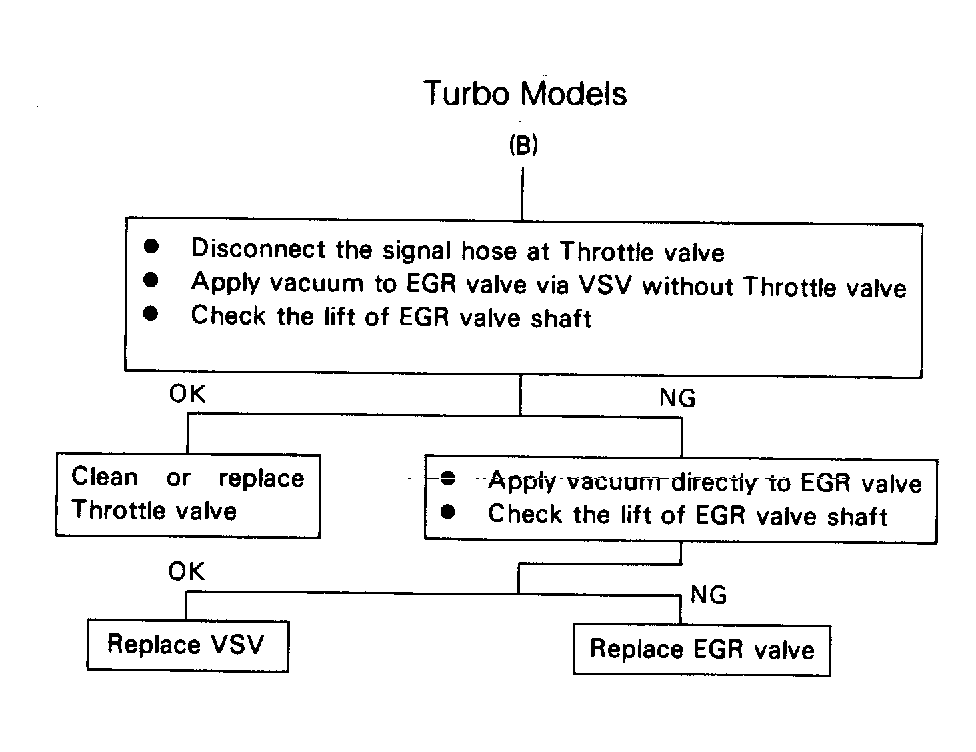

Fig 2: Flow Chart - (2 of 2 - Turbo) Code 32, EGR System Malfunction

Courtesy of ISUZU MOTOR CO.

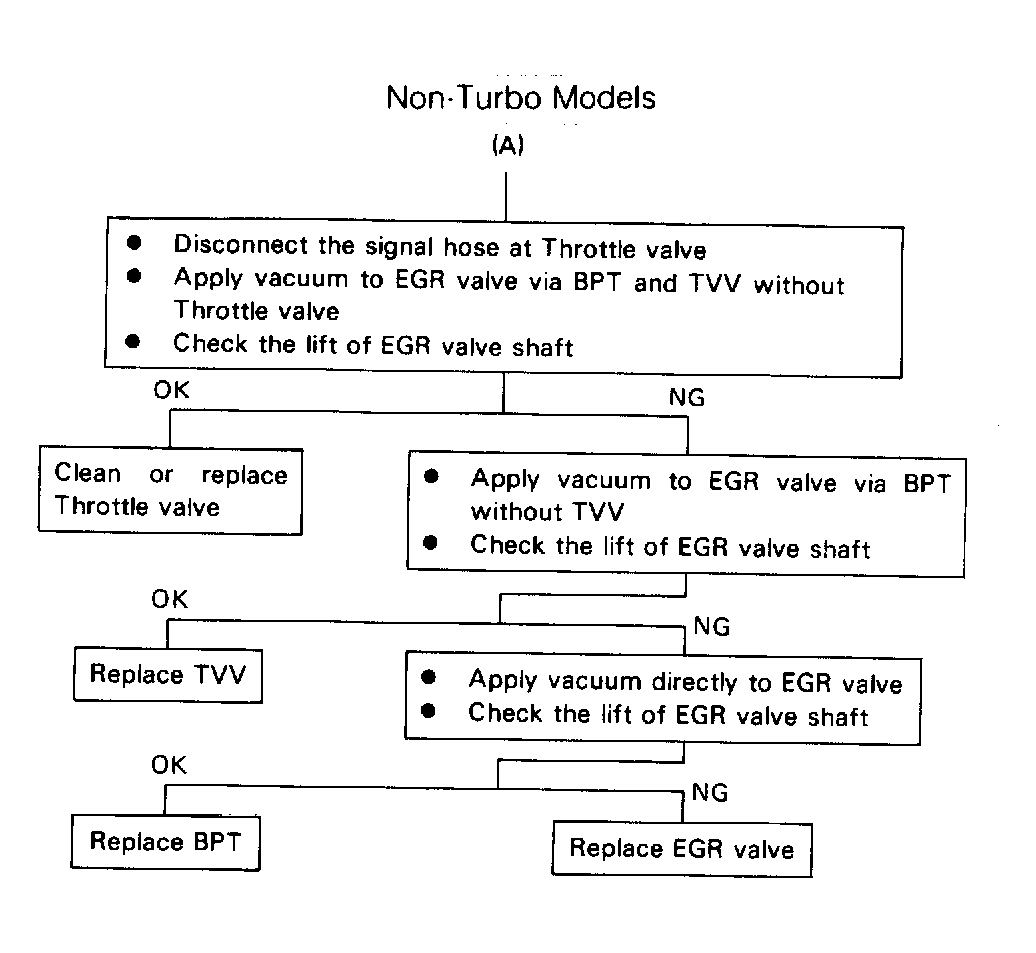

Fig 3: Flow Chart - (2 of 2 - Non-Turbo) Code 32, EGR System Malfunction

Courtesy of ISUZU MOTOR CO.

Fig 4: Specified Reappearance Pattern

Courtesy of ISUZU MOTOR CO.
