Code 41 - Crank Angle Sensor Signal

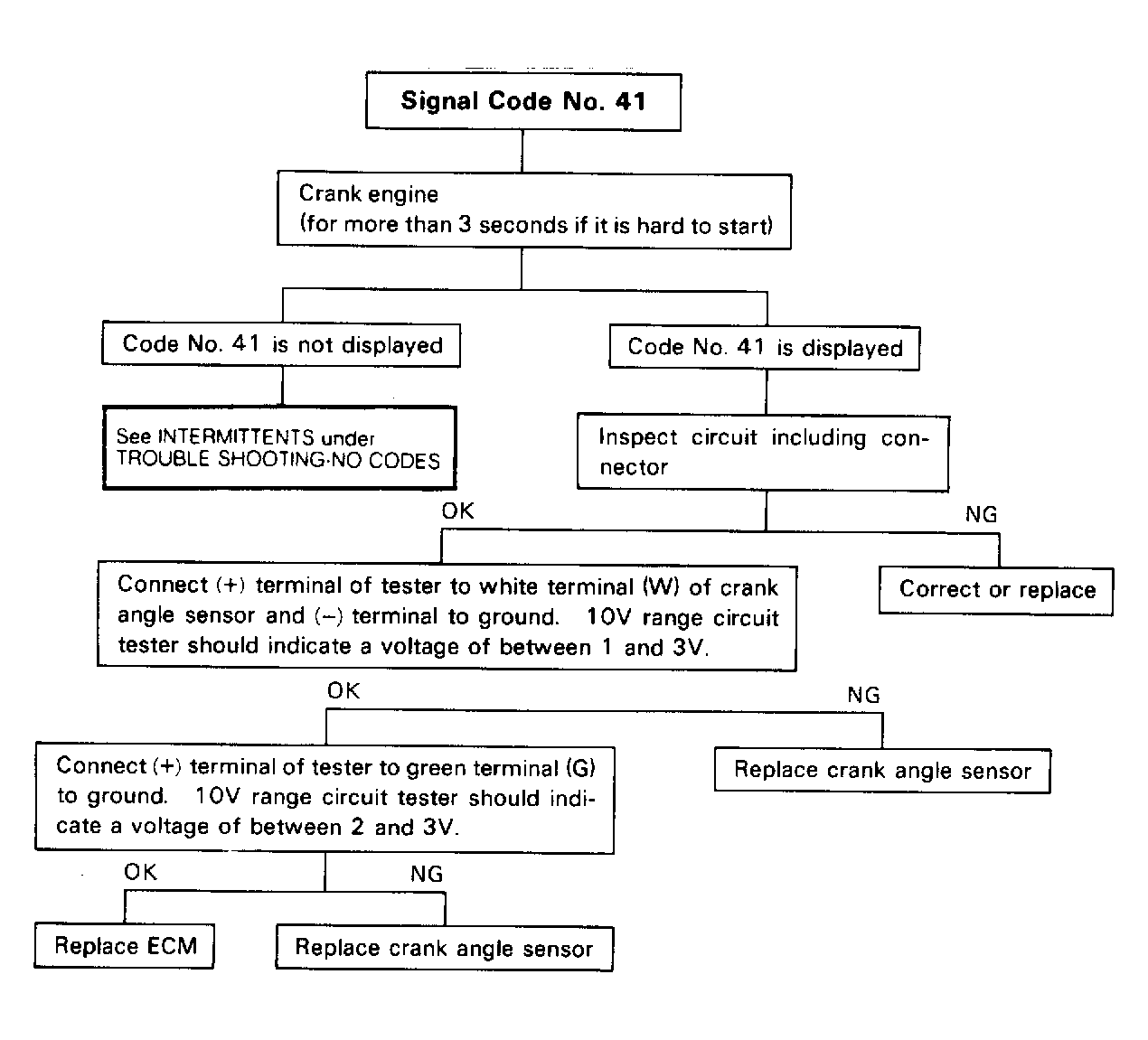

Fig 1: Flow Chart - Code 41, Crank Angle Sensor Signal

Courtesy of ISUZU MOTOR CO.

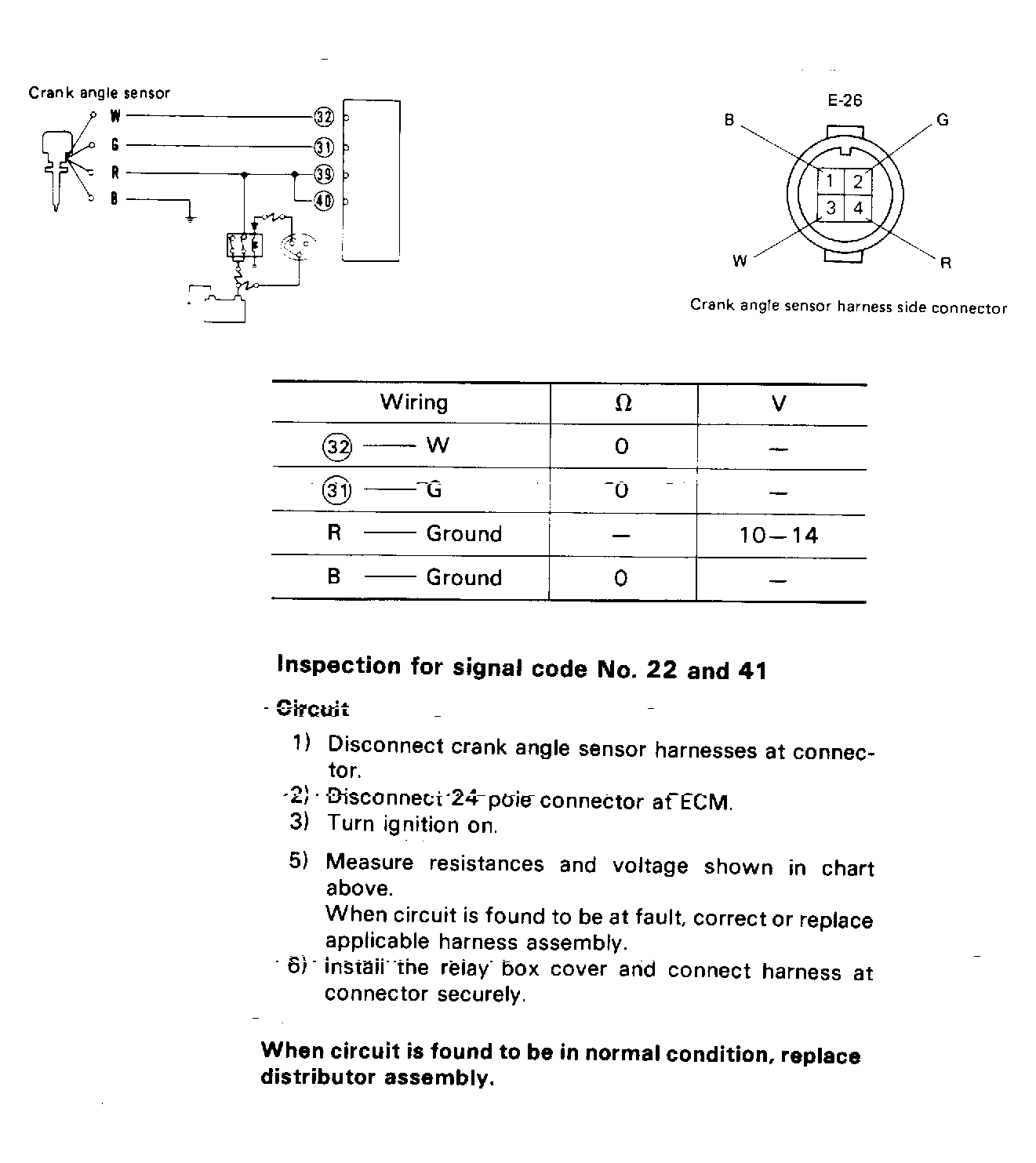

Fig 2: Crank Angle Sensor Circuit & Connector Pin Voltages

Courtesy of ISUZU MOTOR CO.
