Code 71 - Throttle Position Sensor

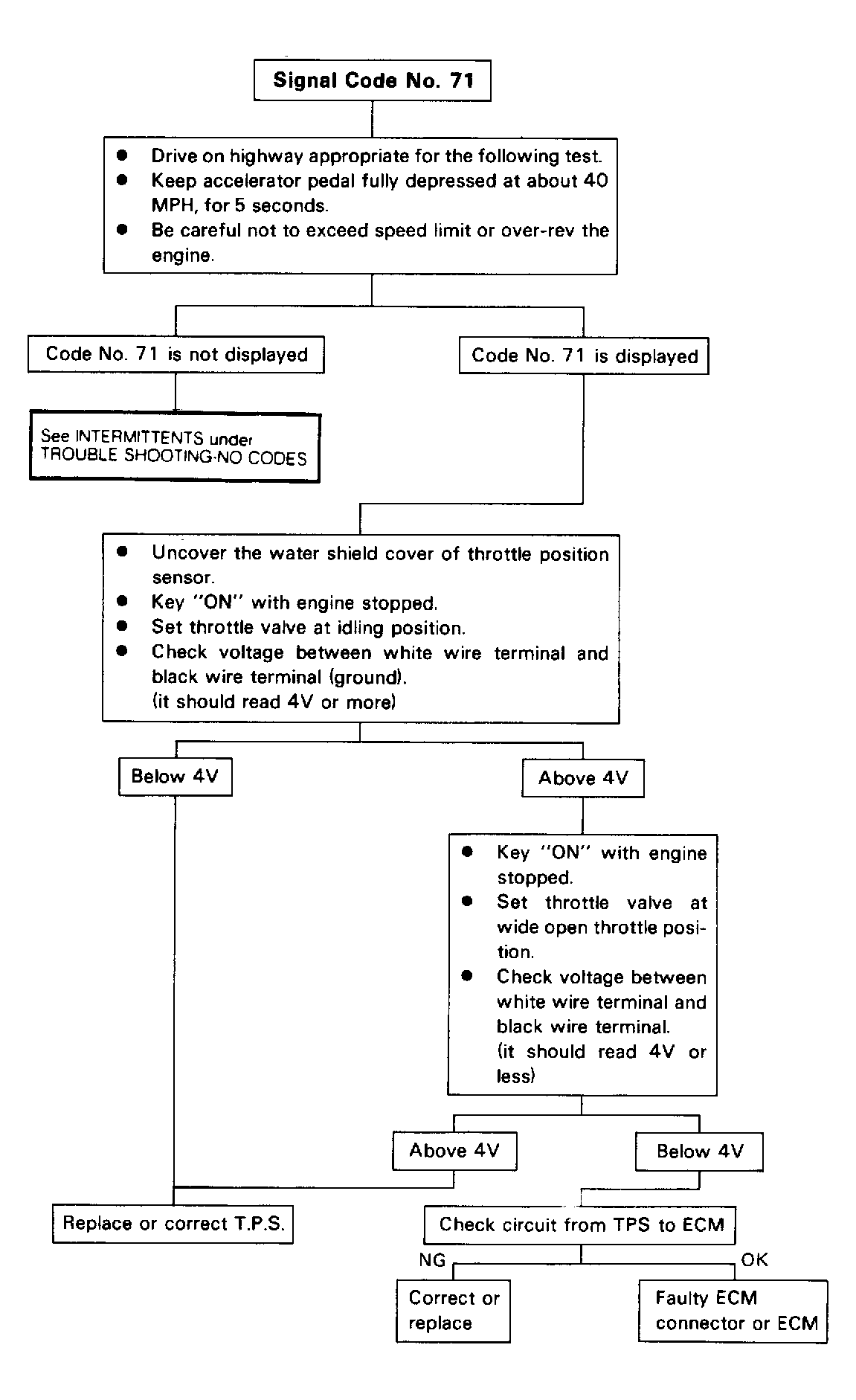

Fig 1: Flow Chart - Code 71, Throttle Position Sensor

Courtesy of ISUZU MOTOR CO.

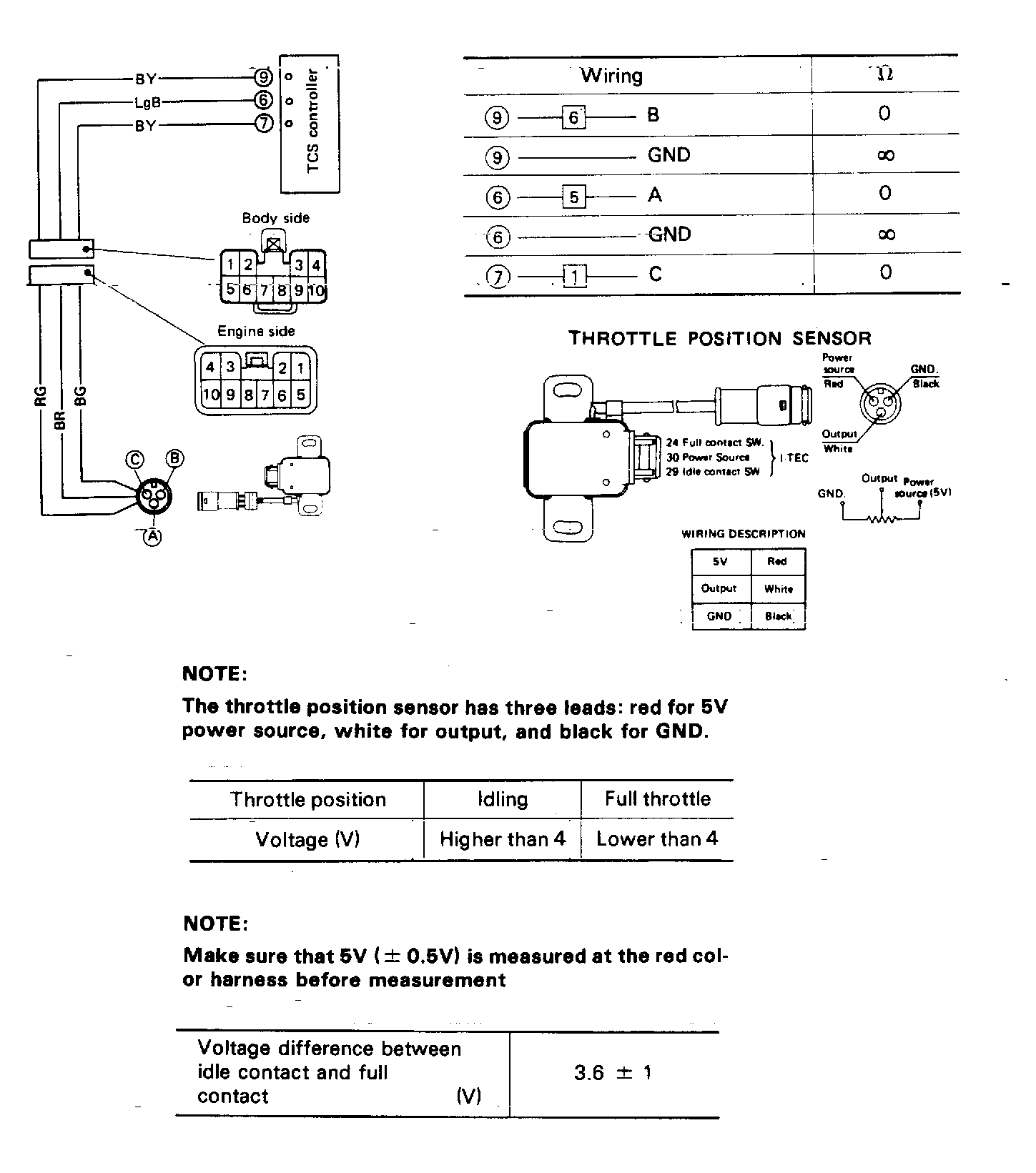

Fig 2: Throttle Position Circuit & Pin Continuities

Courtesy of ISUZU MOTOR CO.
