Diagnostic Circuit Check: Notes

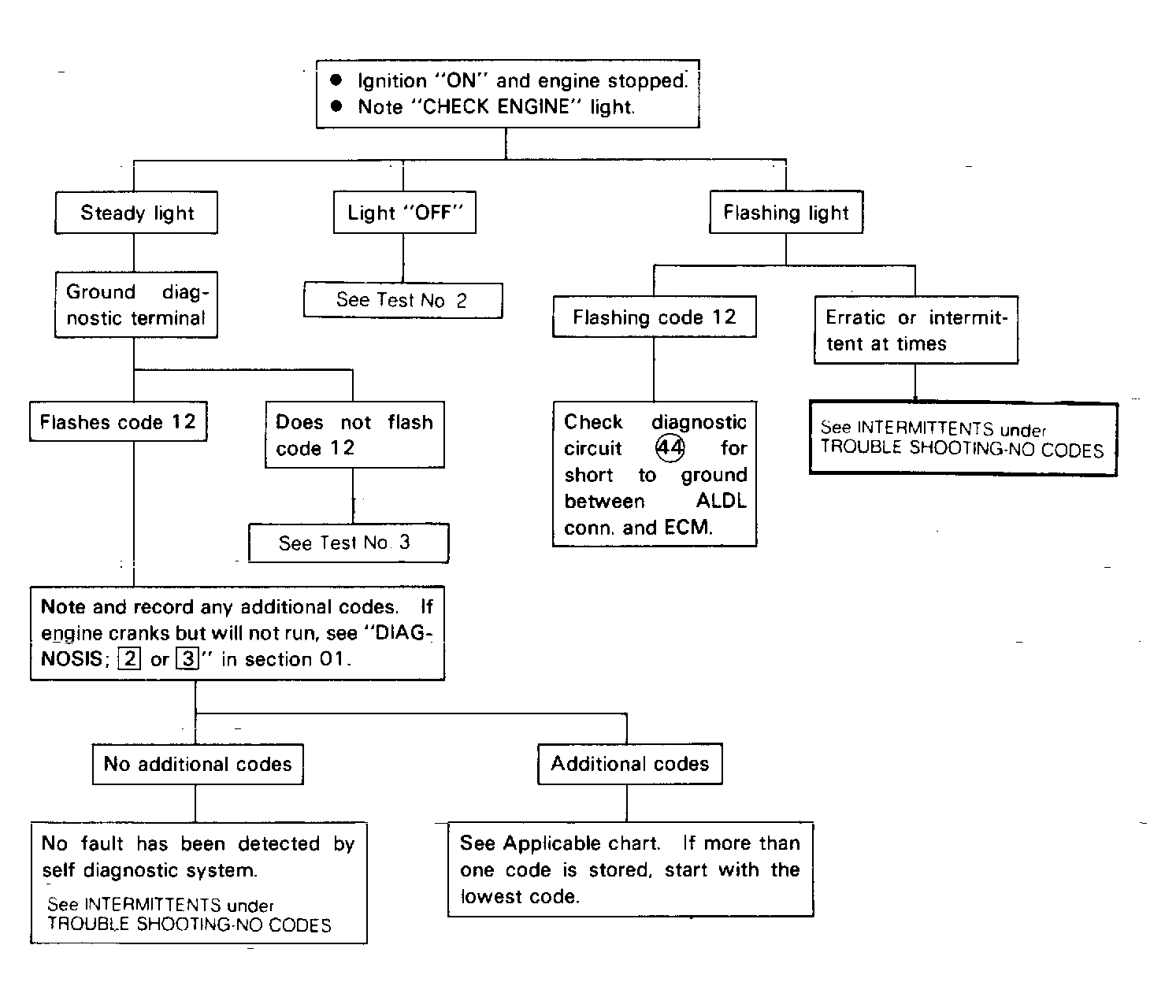

Fig 1: Flow Chart - Diagnostic Circuit Check
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
