Diagnostic Circuit Check
›
Test 3 - No Code 12
Test 3 - No Code 12

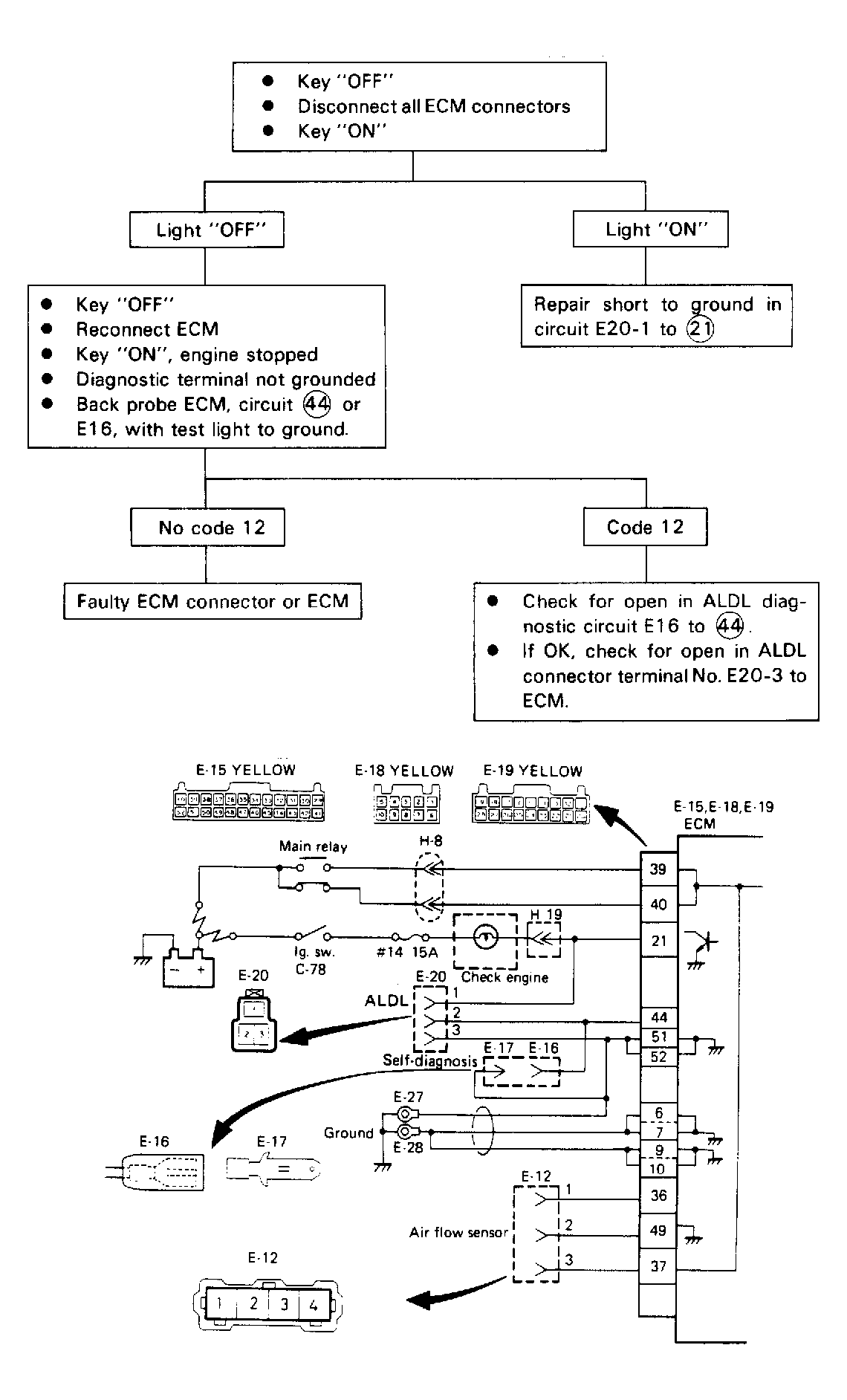

Fig 1: Flow Chart - Will Not Flash Code 12
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
