Fuel Metering Lean Fault Inspection Procedure
Fuel Metering Lean Fault Inspection Procedure

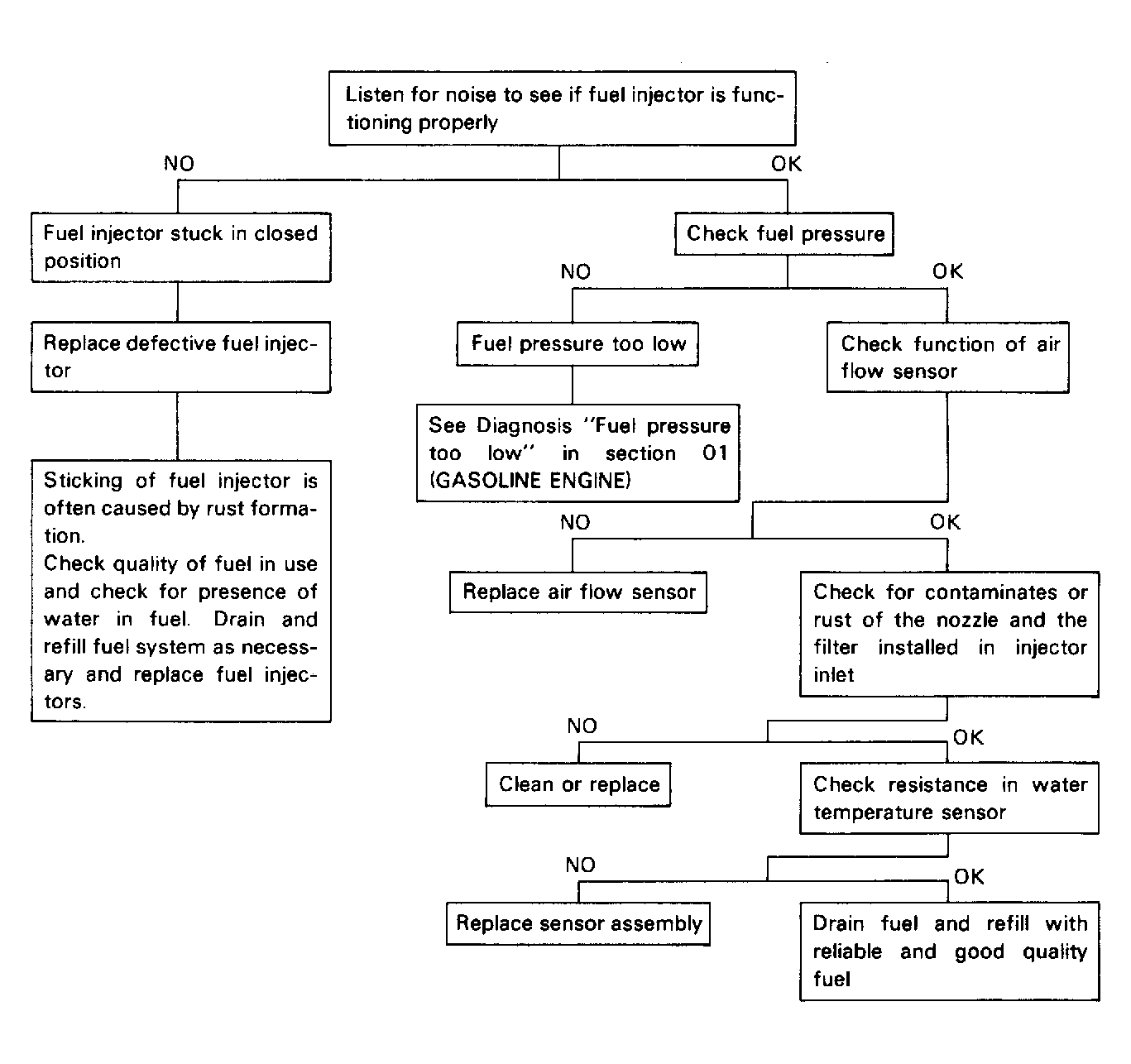

Fig 1: Flow Chart - Fuel Metering Lean Faulty Inspection Procedure
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
